TubE WEaseL

I.D. CLAMPING
TUBE & PIPE BEVELING MACHINE

0.75" I.D. - 3.0" O.D.
19.1mm I.D. - 76.2mm O.D.

Tube Weasel Millhog

0.75” I.D. - 3.0” O.D.
19.1mm I.D. - 76.2mm O.D.

Pneumatic

Electric

Battery

Pneumatic

Electric

Battery

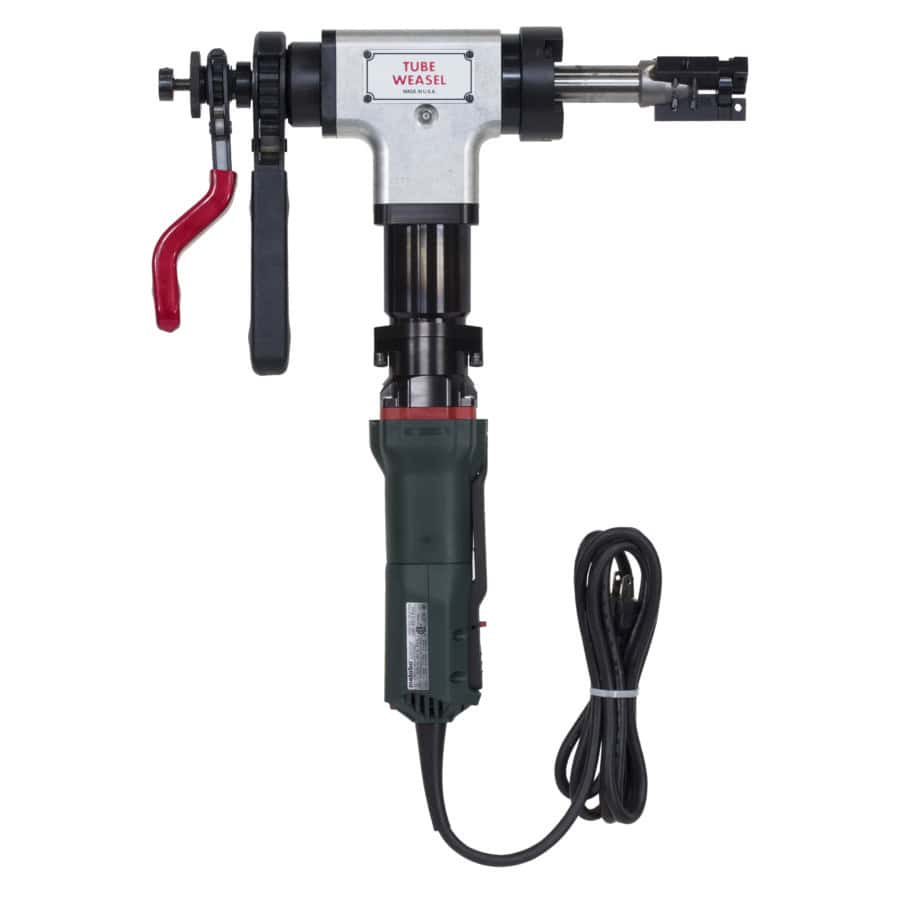

Tube Weasel MILLHOG

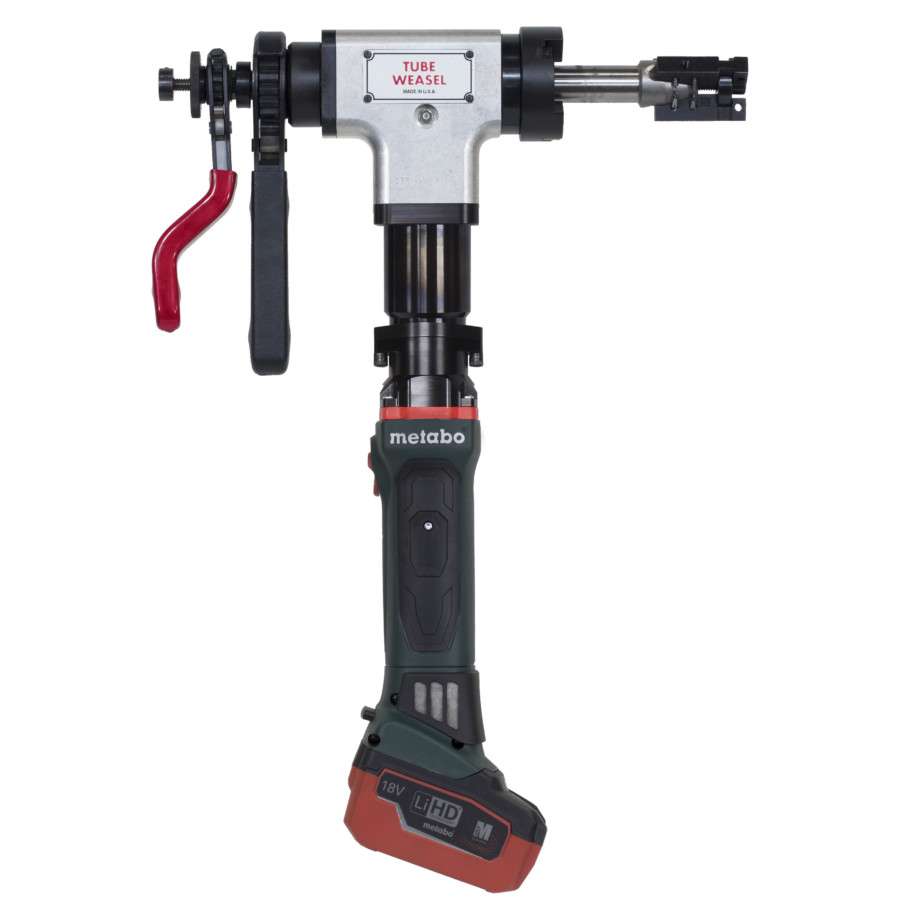

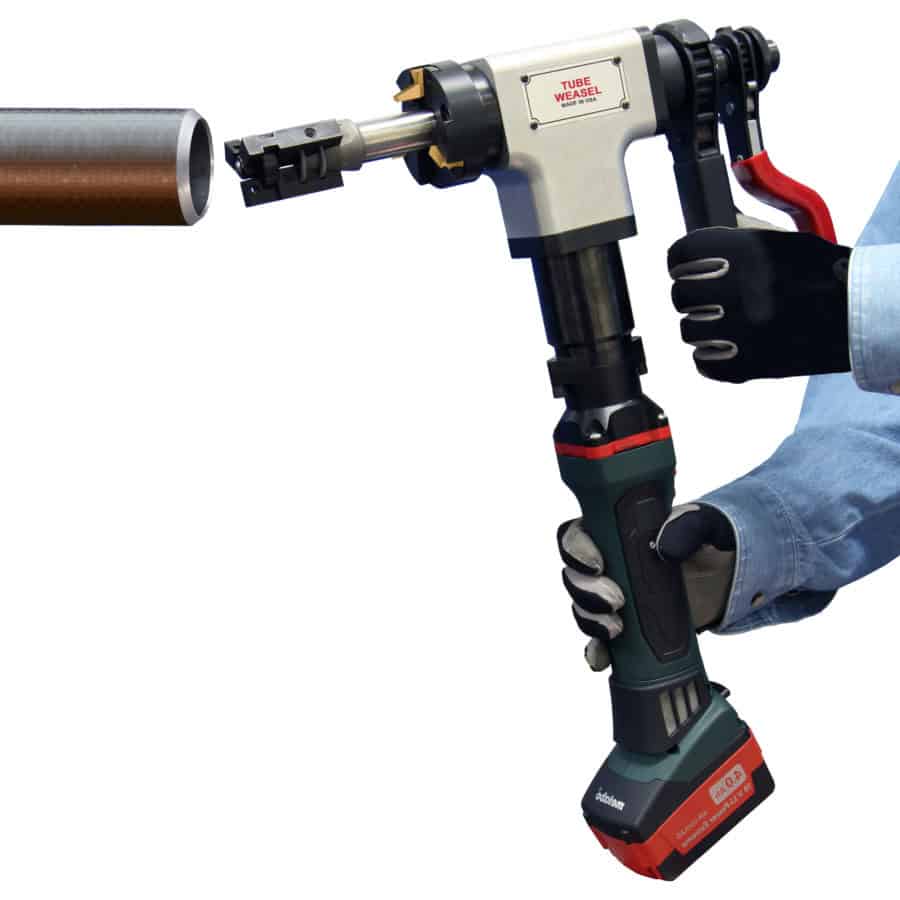

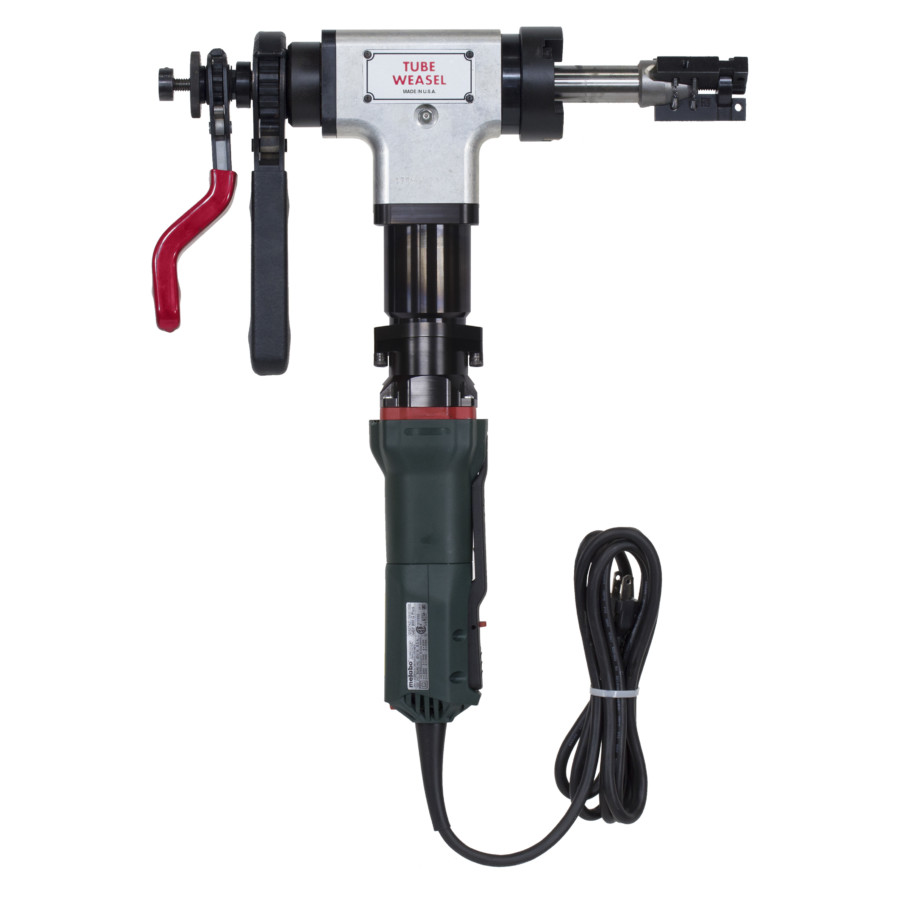

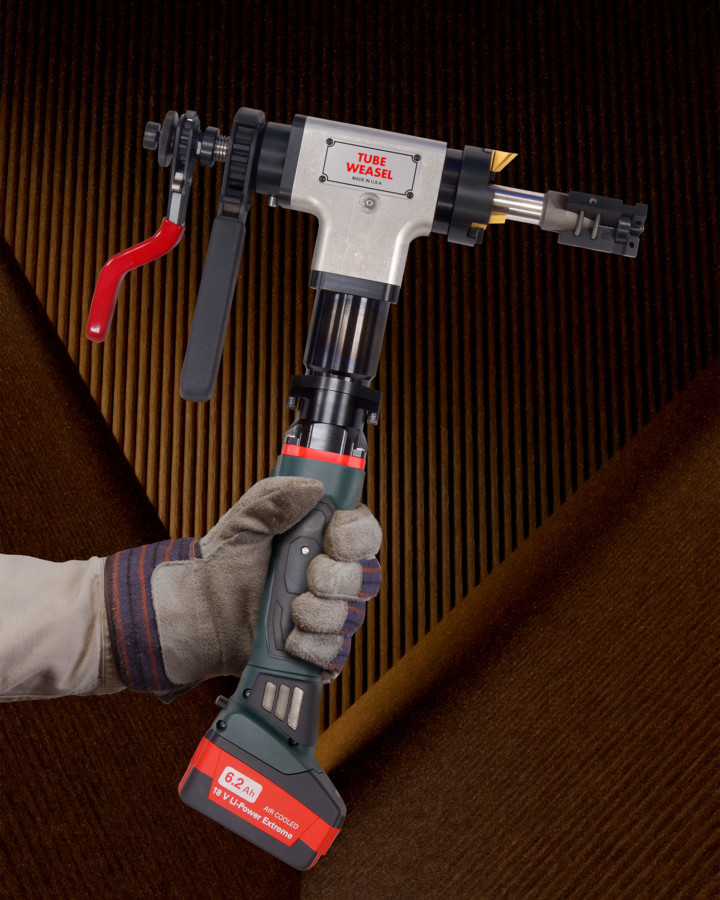

The boilermaker proven Tube Weasel MILLHOG performs precision bevels for accurate weld fit-up and fits a 2.75" (69.9mm) wide opening. Extremely durable, it features a right angle gear drive system which incorporates dual opposed tapered roller bearings. This compact tube beveling tool can be powered by pneumatic, electric or battery motors that are easily interchanged and equally powerful. The Tube Weasel MILLHOG uses the EscoLock cutter blade locking system that securely holds the cutter blade in the cutterhead. Cutter blades have a radical chip breaker that directs the chip away from the tubes surface and minimizes heat build-up.

Available Kits

Standard

Tube Weasel MILLHOG Standard Kit #: TW-200

(1) Motor and gear drive assembly (specify motor)
(1) Feed mechanism
(1) Mandrel 1.25" (31.8mm)
(1) Draw Rod Assembly
(1) Cutterhead (see cutterhead chart for options)
(1) Clamp rib set choice of (G-03A - G-13) (specify)
(1) Carrying case
(1) Operating and maintenance inst.

Note:

Pneumatic motor options add:
(1) 1/2" hose w/ filter, oiler & 3/8" coupler

Battery motor options add:
(2) 5.2ah Li-Ion batteries
(1) Charger

Rental

FEATURES

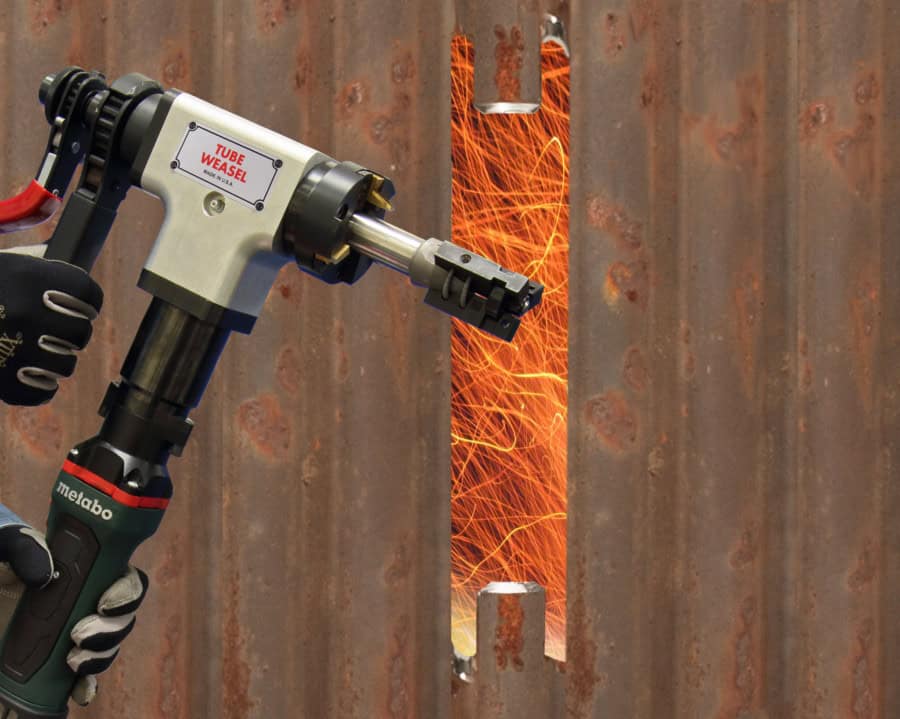

Fits 2.75" (69.9mm) wide opening for boiler tube Dutchman repair
Self-centering clamping system ridgidly mounts tool to tube I.D. and is easy to use
Interchangeable pneumatic, electric and battery motor options
Bevel, face, and bore simultaneously
Sealed construction allows use in any orientation
EscoLock blade lock system, securely holds cutter blades
Torque-free operation
Chatter-free tube and pipe bevels enhance quality welds
Field proven by boilermakers around the world

SPECS

IMPERIAL

METRIC

IMPERIAL

Working Range		0.75" I.D. - 3.0" O.D.
Blade Series		G-Series Blades
Min. Width		2.75"
Length		15.25"
	Pneumatic	Electric	Battery
	1.07 hp	950 W	18 V - 5.2 ah
	90 psi	120 V	120 V
	35 cfm	50/60 Hz	50/60 Hz
Cutterhead Speed	114 rpm	14-58 rpm	43 rpm
Working Weight	20 lbs	22 lbs	22.5 lbs
Shipping Weight	50 lbs	58 lbs	58.6 lbs
Shipping Dimensions	24" x 20" x 6"	24" x 20" x 7"	24" x 20" x 7"

METRIC

Working Range		19.1mm I.D. - 76.2mm O.D.
Blade Series		G-Series Blades
Min. Width		69.9mm
Length		387.4mm
	Pneumatic	Electric	Battery
	800 W	950 W	18 V - 5.2 ah
	6.2 bar	220 - 240 V	220 - 240 V
	990 Lt/min	50/60 Hz	50/60 Hz
Cutterhead Speed	114 rpm	14-58 rpm	43 rpm
Working Weight	9.1 kgs	10 kgs	10.2 kgs
Shipping Weight	22.7 kgs	26.3 kgs	56.6 kgs
Shipping Dimensions	610mm x 508mm x 152mm	610mm x 508mm x 178mm	610mm x 508mm x 178mm

ACCESSORIES

Mandrel Kit 1.0"

Mandrel Kit 0.75"

Mandrel Kit 1.0"

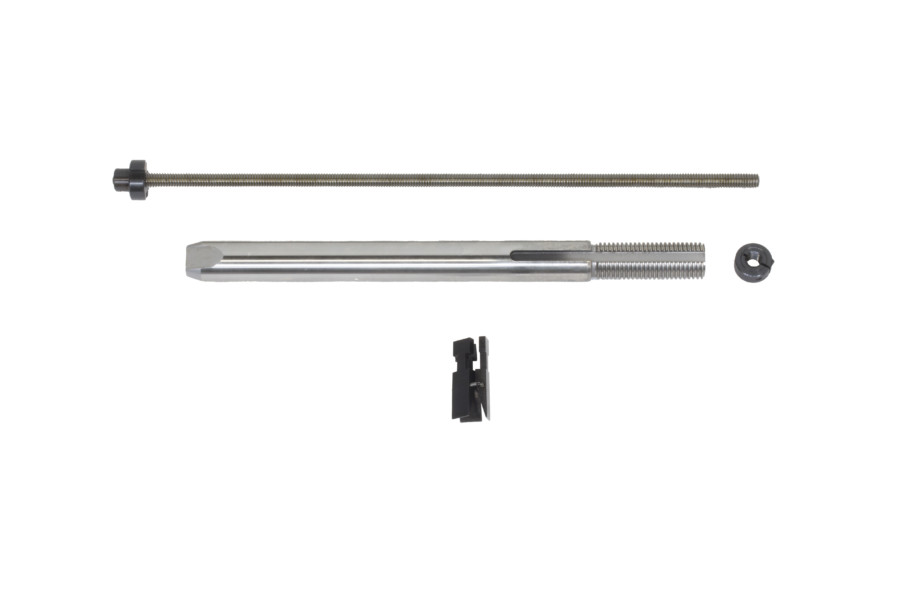

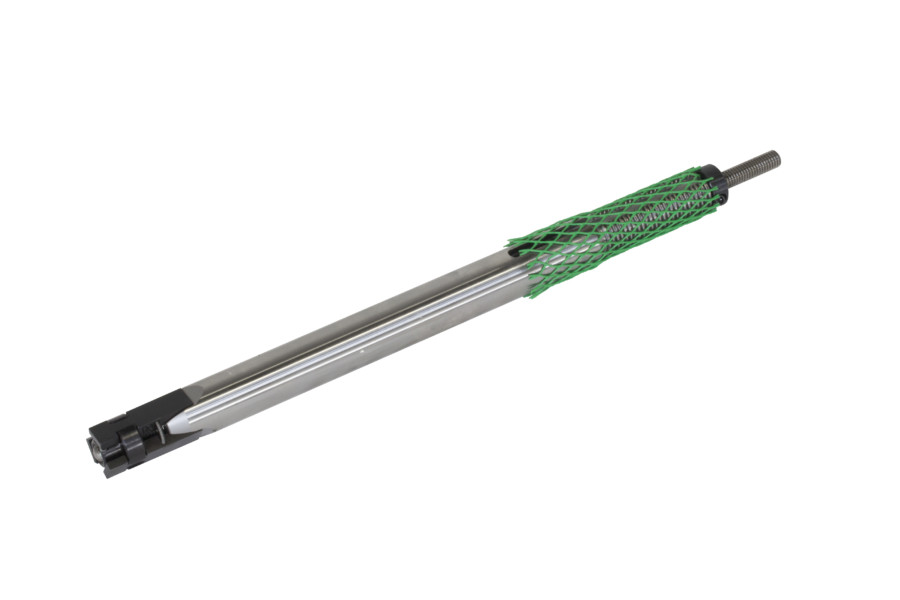

Mandrel Kit (1.0" / 25.4mm) Part #: H-221

The H-221 mandrel kit is designed to fit both the Tube Weasel MILLHOG and Wart MILLHOG gear head and will allow it to fit in tube with a 1.0” (25.4mm) ID. The advantage of this mandrel kit is that it uses the same cutterhead and wrench assembly that comes standard on the Tube Weasel and Wart, but allows for slightly smaller I.D. compared to standard. Clamping range with this mandrel kit is 1.0" (25.4mm) I.D. to 1.3" (33mm) I.D.

Includes

Mandrel Kit 0.75"

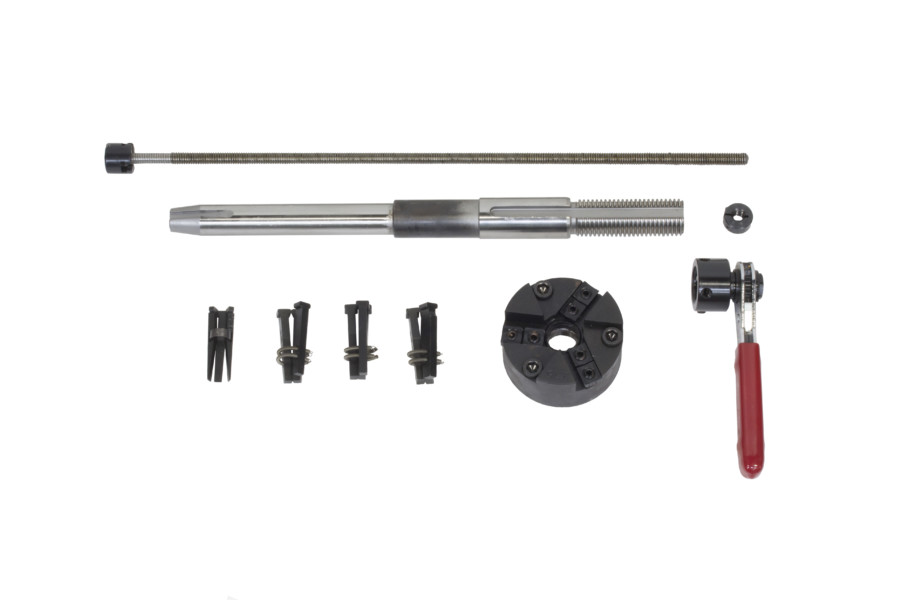

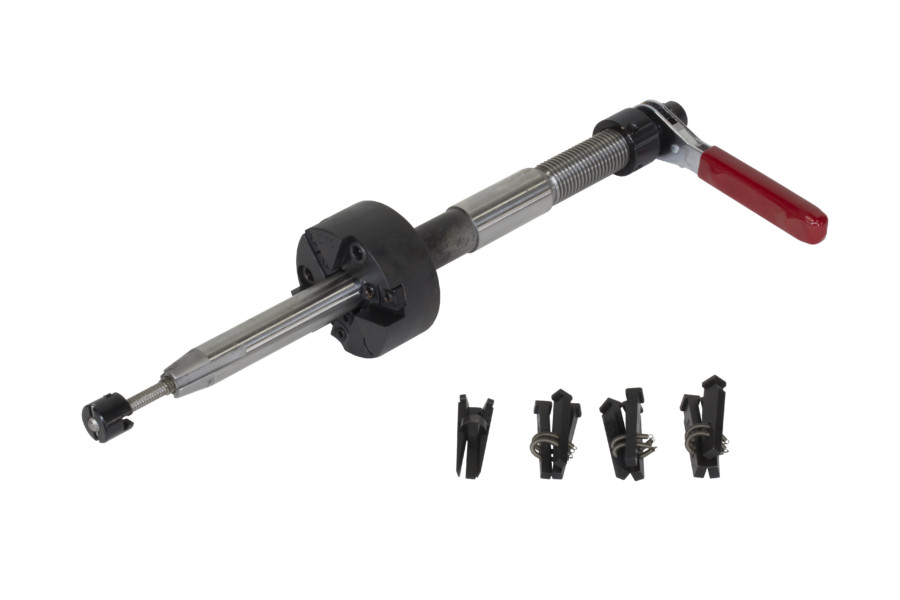

Mandrel Kit (.75"/19.1mm) Part #: TW-240

The TW-240 mandrel kit is designed to fit in the Tube Weasel gear head and will allow it to fit in tube with a 0.75” (19.1mm) I.D. This kit comes with a specific cutter head that will fit the smaller 0.75” (19.1mm) shaft along with the draw rod assembly. The clamping range of this mandrel kit is 0.75" (19.1mm) I.D. to 1.28" (32.5mm) I.D.

Includes

Photos

Videos

Tube Weasel Demo

RESOURCES

Charts

CLAMP RIB CHART - TUBE WEASEL MILLHOG

Mandrel	Clamp Rib Set	I.D. Range (in)	I.D. Range (mm)
Optional 0.75" (19.1mm)	G-03A	0.750 - 0.905	19.1 - 22.9
	G-04	0.875 - 1.030	22.3 - 26.1
	G-05	1.000 - 1.155	25.4 - 29.3
	G-06	1.125 - 1.280	28.6 - 32.5
	G-07	1.250 - 1.405	31.8 - 35.6
	G-08	1.375 - 1.530	35.0 - 38.8
	G-09	1.500 - 1.655	38.1 - 42.0
	G-10	1.625 - 1.780	41.3 - 45.2
	G-11	1.750 - 1.905	44.5 - 48.3
	G-12	1.875 - 2.030	47.7 - 51.5
	G-13	2.000 - 2.155	51.0 - 54.7
Optional 1.0" (25.4mm)	H-0	1.000 - 1.300	25.4 - 33.0
Standard 1.25" (31.8mm)	H-01	1.25 - 1.600	31.8 - 40.6
	H-02	1.525 - 1.925	38.8 - 48.9
	H-03	1.850 - 2.250	47.0 - 57.1
	H-04	2.175 - 2.575	55.3 - 65.4
	H-02 & H-05	2.500 - 2.900	63.5 - 73.6

CUTTERHEAD CHART - TUBE WEASEL MILLHOG

Links

G-Series Blades

M/O Inserts

Documents

Brochure
