Rolling Motors

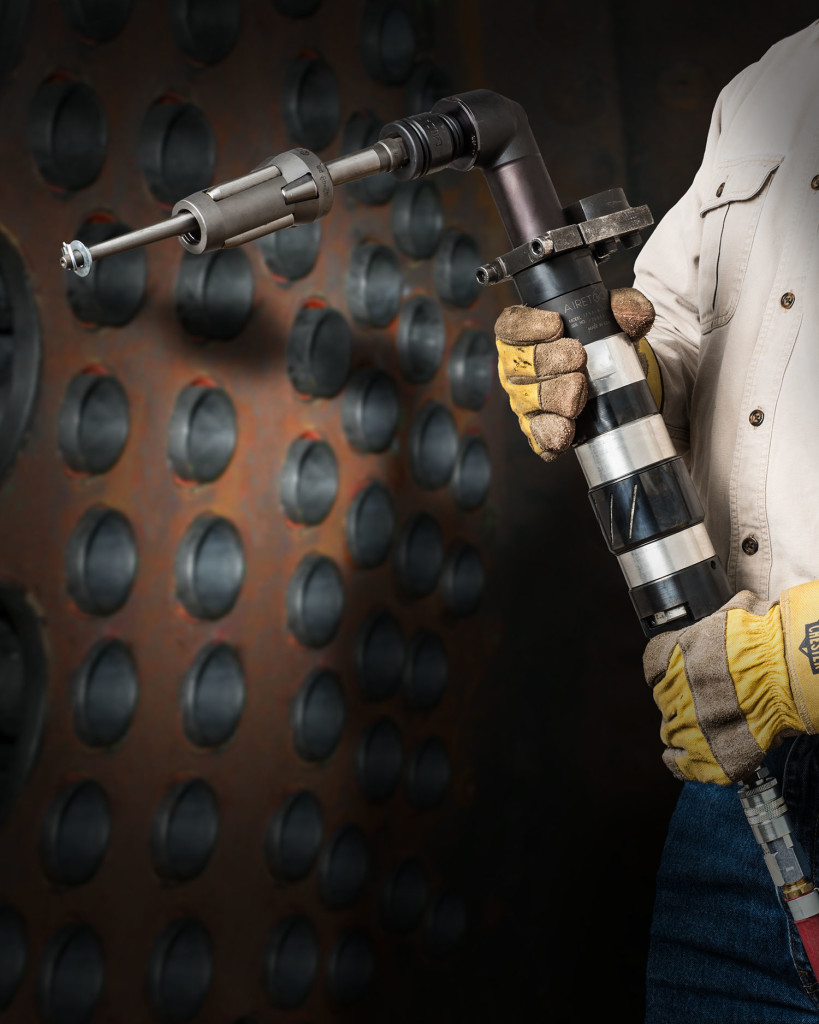

ESCO Tool Rolling Motors and Tube Expanders are used for fabricating and maintaining boilers, heat exchangers, and condensers. Our rolling motors come in a variety of torque options and have capabilities of performing both straight and flared rolls for the most accurate and tightest bond to the tube sheet. Like all of ESCO Tool's rental equipment, every tool/machine is completely taken apart, scrubbed clean, reassembled and tested after every job it is on. Rolling motors are set up on our torque testing unit to assure the highest level of functionality before they make it to your site.

Available Kits

Standard

Rental

FEATURES

Quickly and automatically control tube expansion
Precise, consistent tube wall reduction and tight tube joints
Torque control prevents over and under expansion
Pneumatically powered
Flare and straight rolls

SPECS

IMPERIAL

METRIC

IMPERIAL

Torque Control	yes
Throttle Type	roll and lever

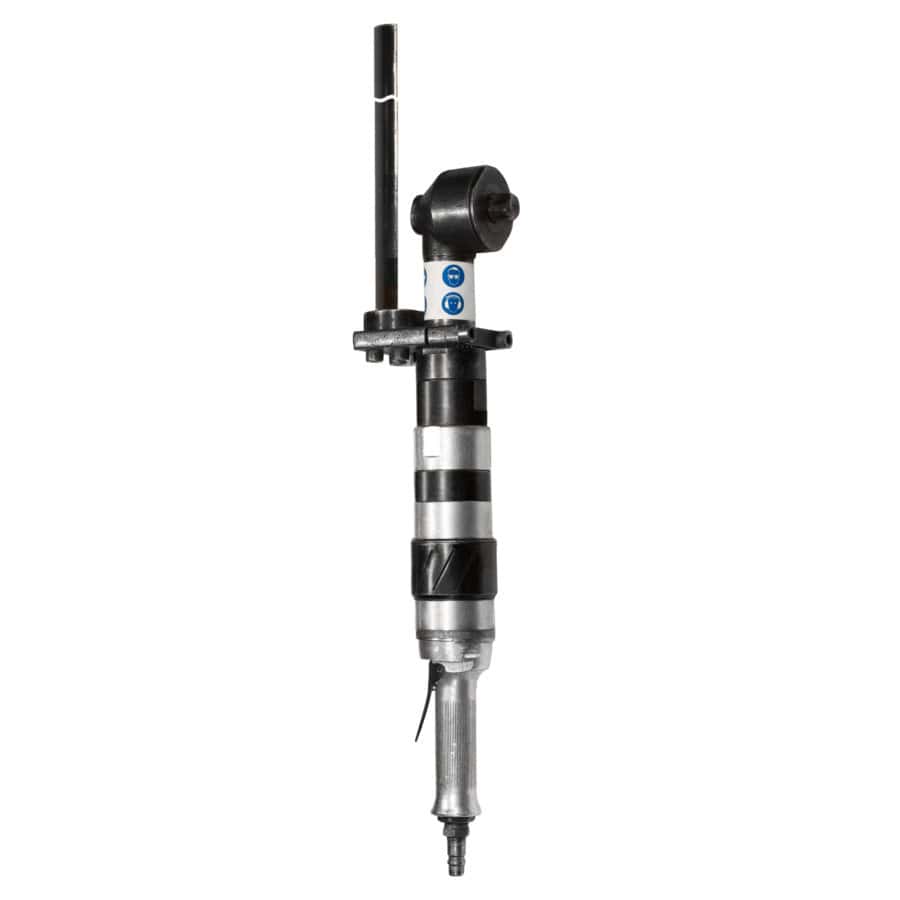

Motor	RT/LT 90	RT/LT 190	RT/LT 280
Free Speed	90 rpm	190 rpm	280rpm
Max Torque	305 ft/lbs	140 ft/lbs	104 ft/lbs
Min Torque	150 ft/lbs	70 ft/lbs	44 ft/lbs
Tube Capacity	4.0"	2.5"	2.25"
Length	21.7"	20.1"	20.1"
Width	2.75"	2.6"	2.6"
Working Weight	14.75 lbs	13 lbs	13 lbs
Shipping weight	55 lbs	53 lbs	53 lbs

METRIC

ACCESSORIES

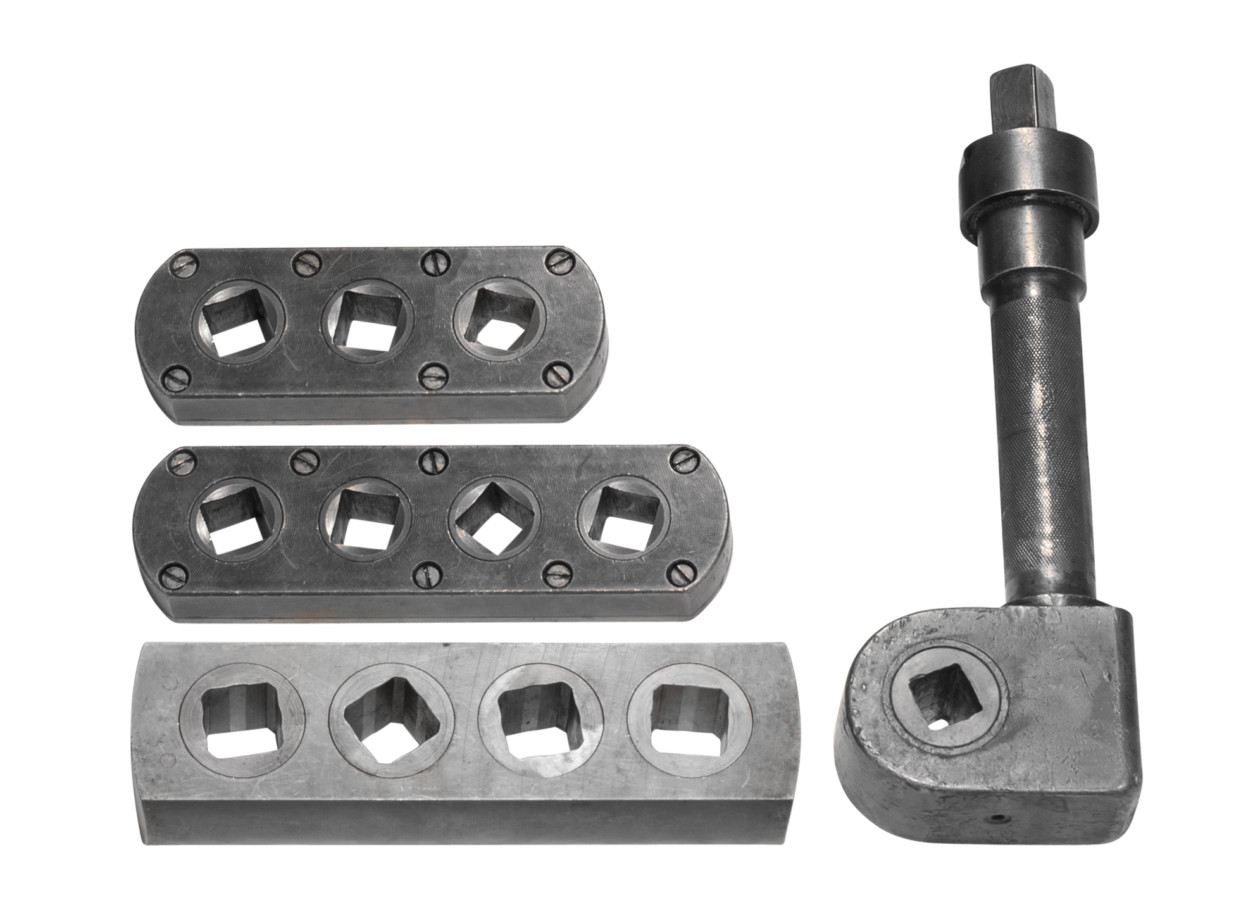

Drive Accessories

General Drive Accessories part #: Consult factory

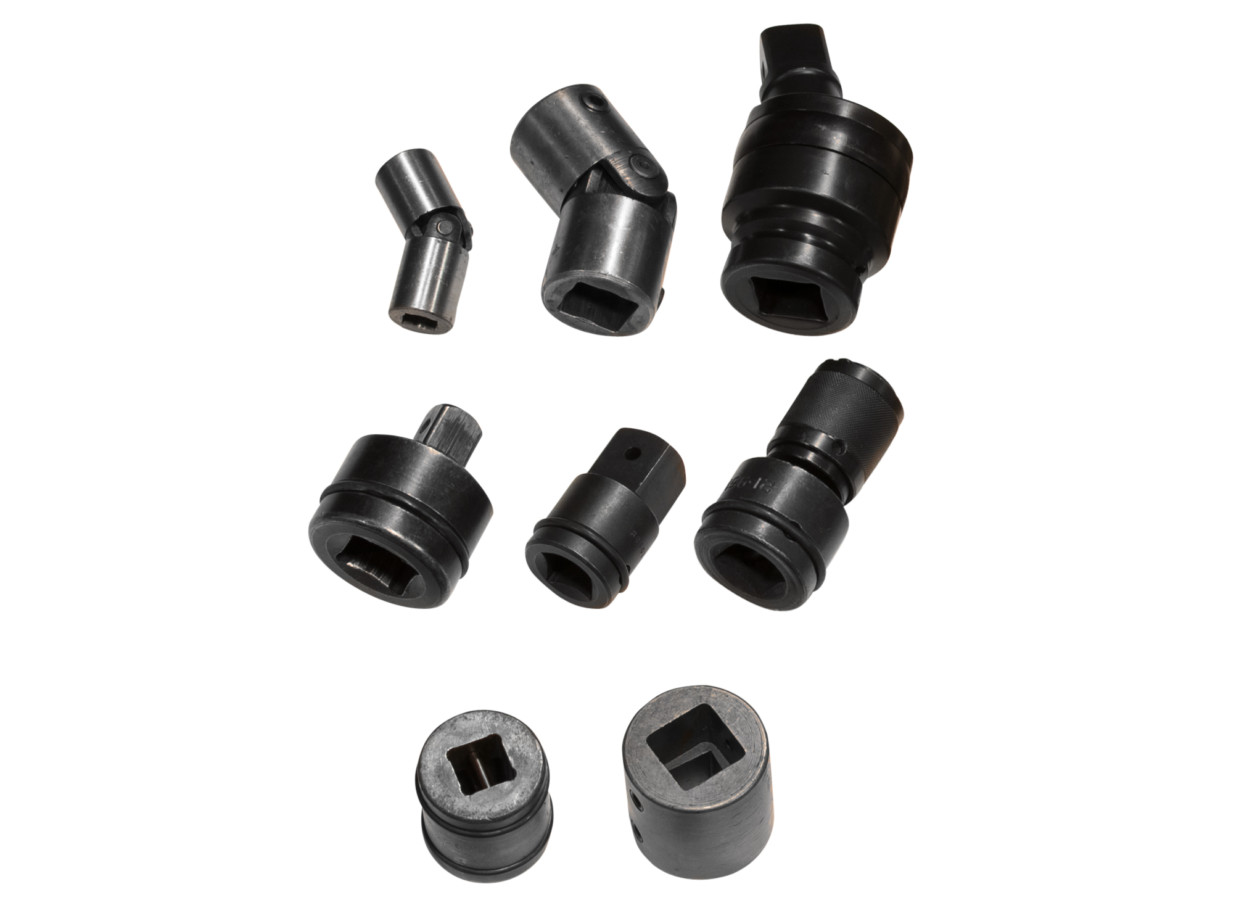

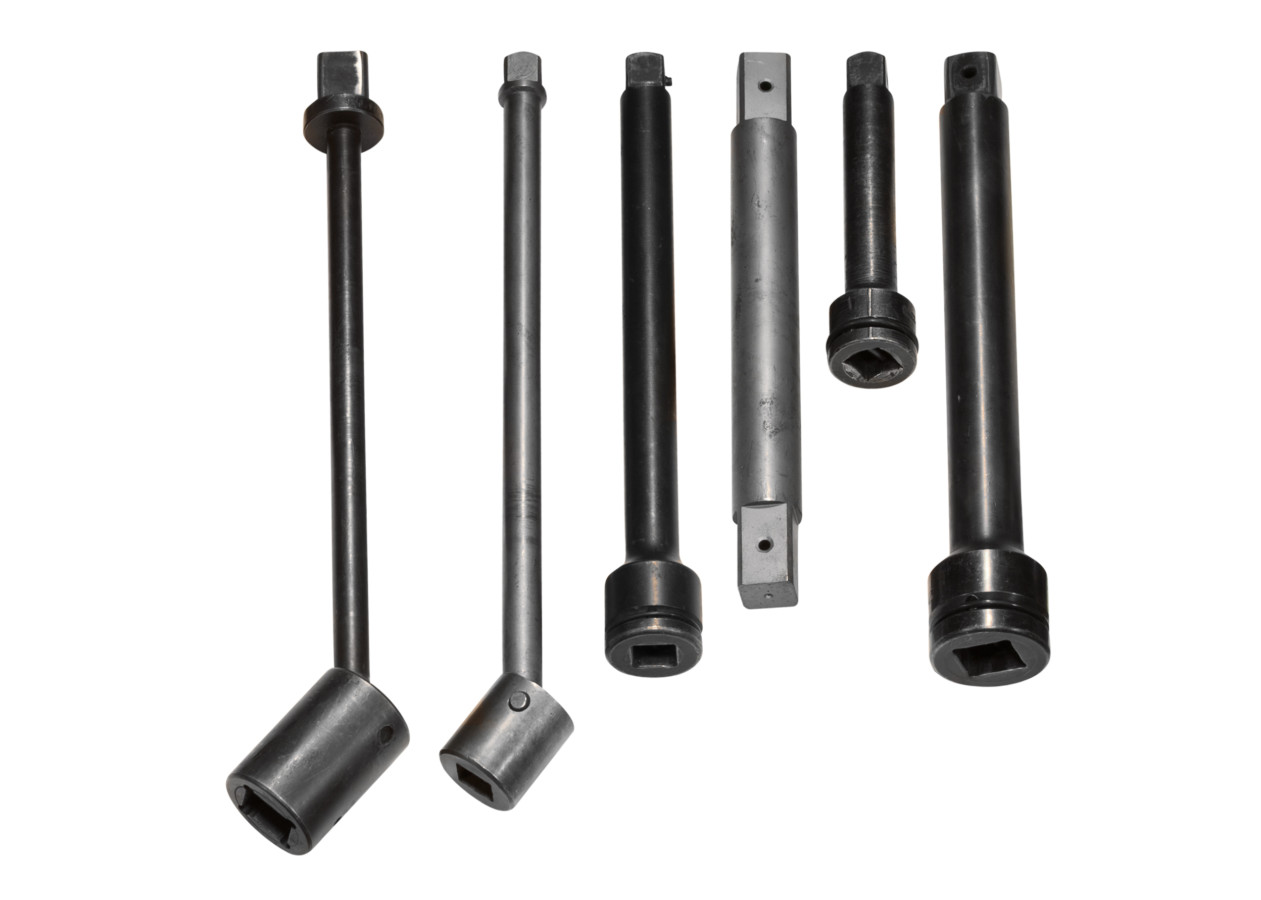

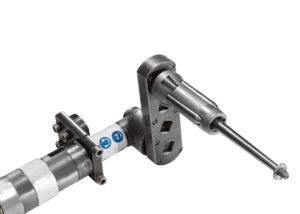

ESCO Tool supplies a wide variety of accessories for our rolling motors which make the equipment adaptable to almost any tube rolling application. Optional accessories include adapters, universals, chucks, parallel drives, right-angle drives, straight extensions, and universal extensions. Please contact us with any questions on how to set up your equipment correctly.

Photos

Videos

Rolling Motor Demo

RESOURCES

CHARTS

FLARE ROLL EXPANDERS

If tube sheet thickness exceeds 2.75" / 69.9mm, a straight roller will most likely be needed to finish "un-flared" side of the tube sheet. Please consult factory with any questions.

Complete Expander Part #	Expansion Range (in)	Expansion Range (mm)	Mandrel	Roller Part #
KS-19xx	0.75 - 0.87	19 - 22	TK19	RR12RK5/xx
KS-20xx	0.79 - 0.91	20 - 23	TK20	RR12RK5/xx
KS-22xx	0.87 - 0.98	22 - 25	TK22	RR12RK5/xx
KS-23xx	0.91 - 1.02	23 - 26	TK23	RR13RK6/xx
KS-24xx	0.94 - 1.06	24 - 27	TK24	RR13RK6/xx
KS-25xx	0.98 - 1.10	25 - 28	TK25	RR13RK6/xx
KS-26xx	1.02 - 1.14	26 - 29	TK26	RR13RK6/xx
KS-27xx	1.06 - 1.18	27 - 30	TK27	RR15RK7/xx
KS-28xx	1.10 - 1.26	28 - 32	TK28	RR16RK8/xx
KS-29xx	1.14 - 1.30	29 - 33	TK29	RR16RK8/xx
KS-30xx	1.18 - 1.34	30 - 34	TK30	RR16RK8/xx
KS-32xx	1.26 - 1.42	32 - 36	TK32	RR17RK9/xx
KS-33xx	1.29 - 1.49	33 - 38	TK33	RR33RK33/xx
KS-35xx	1.38 - 1.61	35 - 41	TK37	RR21RK35/xx
KS-37xx	1.46 - 1.69	37 - 43	TK37	RR22RK10/xx
KS-39xx	1.53 - 1.77	39 - 45	TK37	RR40RK40/xx
KS-40xx	1.57 - 1.81	40 - 46	TK42	RR40RK40/xx
KS-42xx	1.65 - 1.89	42 - 48	TK42	RR23RK11/xx
KS-44xx	1.73 - 1.97	44 - 50	TK44	RR23RK11/xx
KS-47xx	1.85 - 2.13	47 - 54	TK47	RR24RK12/xx
KS-49xx	1.93 - 2.20	49 - 56	TK49	RR24RK12/xx
KS-52xx	2.05 - 2.32	52 - 59	TK49	RR25RK13/xx
KS-54xx	2.13 - 2.44	54 - 62	TK54	RR26RK14/xx
KS-57xx	2.24 - 2.60	57 - 66	TK57	RR27RK15/xx
KS-60xx	2.36 - 2.72	60 - 69	TK57	RR28RK16/xx
KS-65xx	2.56 - 2.91	65 - 74	TK65	RR29RK17/xx
KS-68xx	2.68 - 3.07	68 - 78	TK72	RR30RK18/xx
KS-72xx	2.83 - 3.23	72 - 82	TK72	RR13RK19/xx
KS-77xx	3.03 - 3.43	77 - 87	TK77	RR32RK20/xx
KS-82xx	3.23 - 3.62	82 - 92	TK82	RR33RK21/xx
KS-86xx	3.39 - 3.78	86 - 96	TK86	RR34RK22/xx
KS-90xx	3.54 - 4.02	90 - 102	TK90	RR34RK22/xx
KS-96xx	3.78 - 4.25	96 - 108	TK96	RR35RR23/xx

The "xx" in the above chart represents the roll length. See chart below for roll length options.
example: If ordering KS-96 with a 50mm roll set, part number for the complete roll will be KS-9650... Roller Part # will be RR35RK23/50

Roll Length (xx)	Tube Sheet Thickness (in)	Tube Sheet Thickness (mm)
40	0.5 - 0.75	12 - 19
50	0.875 - 1.25	22 - 32
60	1.375 - 1.75	35 - 45
80	1.875 - 2.25	48 - 58
90	2.375 - 2.75	60 - 70

STRAIGHT EXPANDERS

If tube sheet thickness exceeds 2.75" / 69.9mm, a straight roller will most likely be needed to finish "un-flared" side of the tube sheet. Please consult factory with any questions.

Complete Expander Part #	Expansion Range (in)	Expansion Range (mm)	Mandrel	Roller Part #
P2-280	1.10 - 1.30	28 - 33	T-290	998
P2-290	1.14 - 1.33	29 -34	T-290	1048
P2-300	1.17 - 1.34	30 - 35	T-290	1089
P2-320	1.25 - 1.46	32 - 37	T-320	1143
P2-350	1.37 - 1.61	35 - 41	T-370	RR21A
P2-370	1.45 - 1.69	37 - 43	T-370	RR22A
P2-400	1.57 - 1.81	40 - 46	T-420	RR40A
P2-420	1.65 - 1.89	42 - 48	T-420	RR23A
P2-440	1.72 - 1.97	44 - 50	T-440	RR23A
P2-470	1.84 - 2.13	47 - 54	T-470	RR24A
P2-490	1.92 - 2.20	49 - 56	T-490	RR24A
P2-520	2.04 - 2.33	52 - 59	T-490	RR25A
P2-540	2.12 - 2.44	54 - 62	T-540	RR26A
P2-570	2.24 - 2.60	57 - 66	T-570	RR27A
P2-600	2.35 - 2.72	60 - 69	T-570	RR28A
P2-650	2.55 - 2.95	65 - 74	T-650	RR29A
P2-680	2.67 - 3.07	68 - 78	T-720	RR30A
P2-720	2.83 - 3.23	72 - 82	T-720	RR31A
P2-770	3.03 - 3.43	77 - 87	T-770	RR32A
P2-820	3.23 - 3.62	82 - 92	T-820	RR33A
P2-860	3.39 - 3.78	86 - 96	T-860	RR34A
P2-900	3.54 - 4.02	90 - 102	T-900	RR34A
P2-960	3.78 - 4.41	96-108	T-960	RR35A

P2 Expanders are available with both 60mm and 80mm Roll sets. Part numbers for "Complete Expander Part #" in the above chart are for complete expanders with 60mm roll sets. To order expanders with 80 mm roll set, add "/80" to the end of the parts numbers.
example: P2-960 - complete expander with 60 mm roll set... P2-960/80 - complete expander with 80mm roll set
