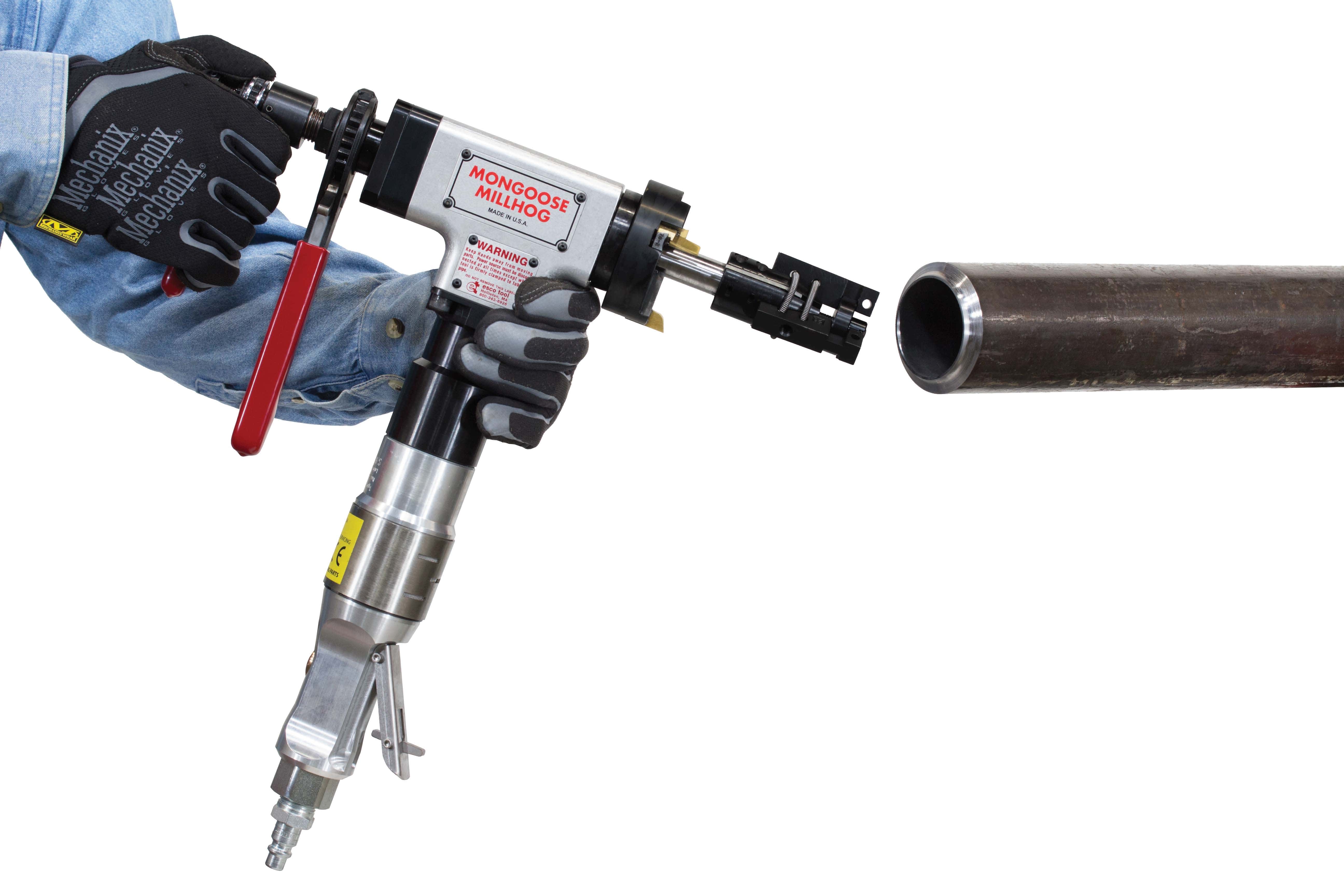

Mongoose MILLHOG

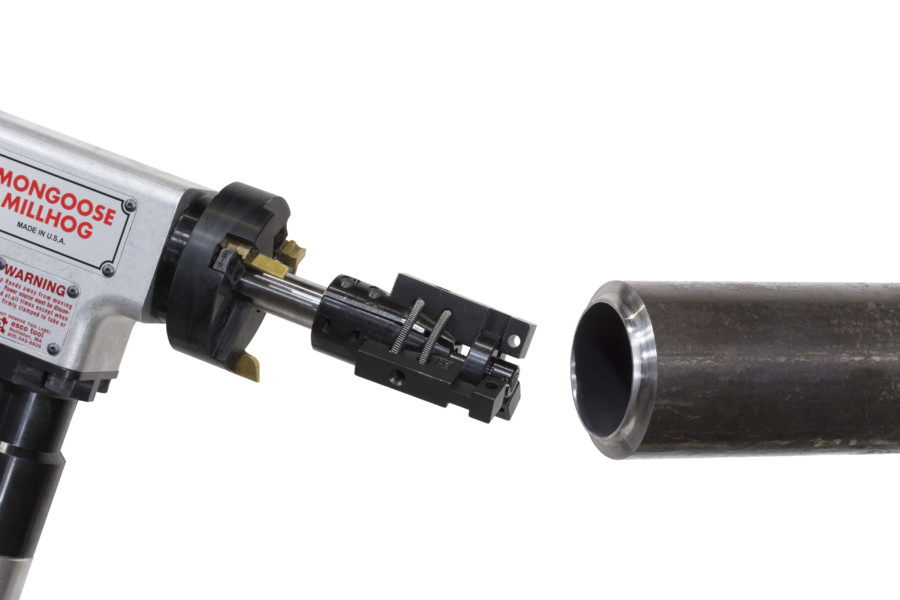

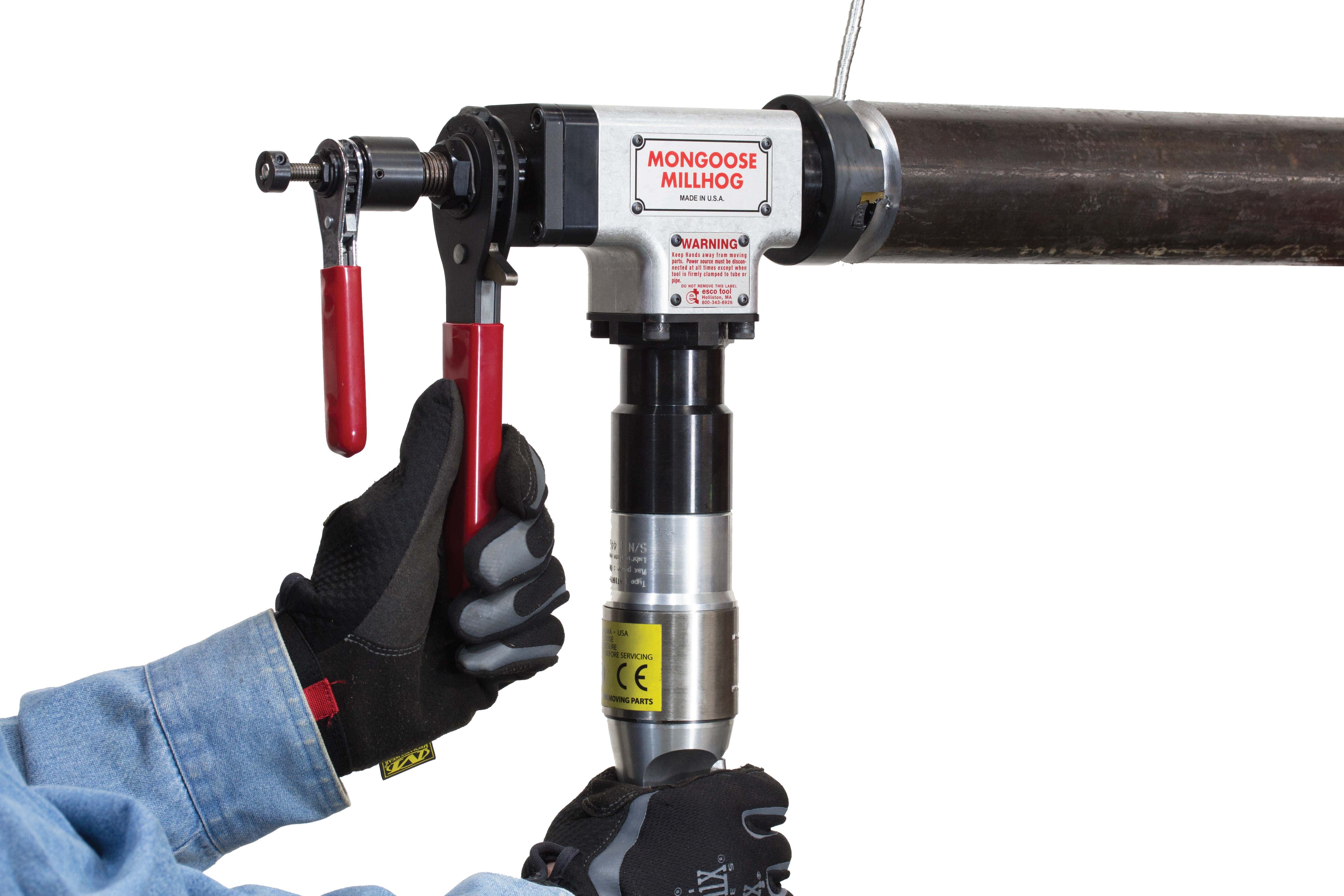

The Mongoose MILLHOG is a torque free beveling machine for tube and pipe from 0.625” (15.9mm) I.D. to 3.0” (76.2 mm) O.D. and is only 2.25” (57.15 mm) wide which makes it ideal for power station boiler tube work and constrained situations with limited access. Featuring a patented push-pull clamp and release mechanism, it allows the clamps to release from a tube as easily as they tighten. Ideal for beveling, facing and boring on a wide range of tube and pipe alloys, the Mongoose has dual opposed tapered roller bearing and employ the rigid EscoLock blade locking system; which provides chatter-free performance and produces a thick chip without cutting fluids.

Available Kits

Basic

Mongoose MILLHOG Basic Kit #: MG-200

(1) Motor and gear drive assembly (specify motor)
(1) Feed mechanism
(1) Mandrel 0.75" (19.1mm)
(1) Draw Rod Assembly
(1) Cutterhead (see cutterhead chart for options)
(1) Clamp rib set choice of (G-03A - G-13) (specify)
(1) Carrying case
(1) Operating and maintenance Inst.

Note:

Pneumatic motor options add:
(1) 1/2" hose w/ filter, oiler & 3/8" coupler

Battery motor options add:
(2) 5.2ah Li-Ion batteries
(1) Charger

Standard

Mongoose MILLHOG Standard Kit #: MG-300

(1) Motor and gear drive assembly (specify motor)
(1) Feed mechanism
(1) Mandrel 0.75" (19.1mm)
(1) Draw Rod Assembly
(1) Cutterhead (see cutterhead chart for options)
(11) Clamp rib set (G-03A - G-13)
(1) Carrying case
(1) Operating and maintenance Inst.

Note:

Pneumatic motor options add:
(1) 1/2" hose w/ filter, oiler & 3/8" coupler

Battery motor options add:
(2) 5.2ah Li-Ion batteries
(1) Charger

Deluxe

Mongoose MILLHOG Deluxe Kit #: MG-500

(1) Motor and gear drive assembly (specify motor)
(1) Feed mechanism
(1) Mandrel 0.75" (19.1mm)
(1) Draw Rod Assembly
(1) Cutterhead (see cutterhead chart for options)
(10) Clamp Rib Set (G-03A - G-08) and (H-02 - H-05)
(1) MG-400 Wedge Kit
(1) Carrying case
(1) Operating and maintenance Inst.

Note:

Pneumatic motor options add:
(1) 1/2" hose w/ filter, oiler & 3/8" coupler

Battery motor options add:
(2) 5.2ah Li-Ion batteries
(1) Charger

Rental

FEATURES

Narrow body 2.25" (27.15mm)
Lightweight and torque-free

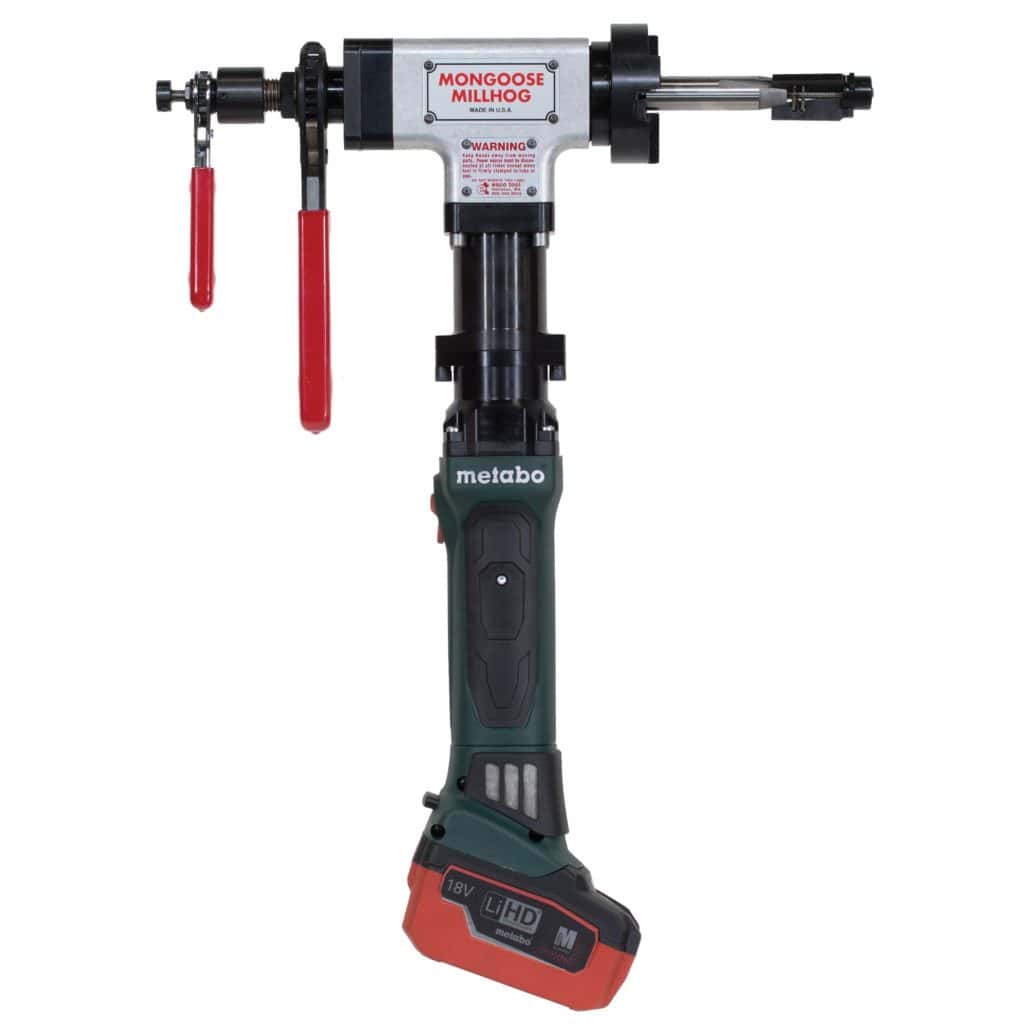

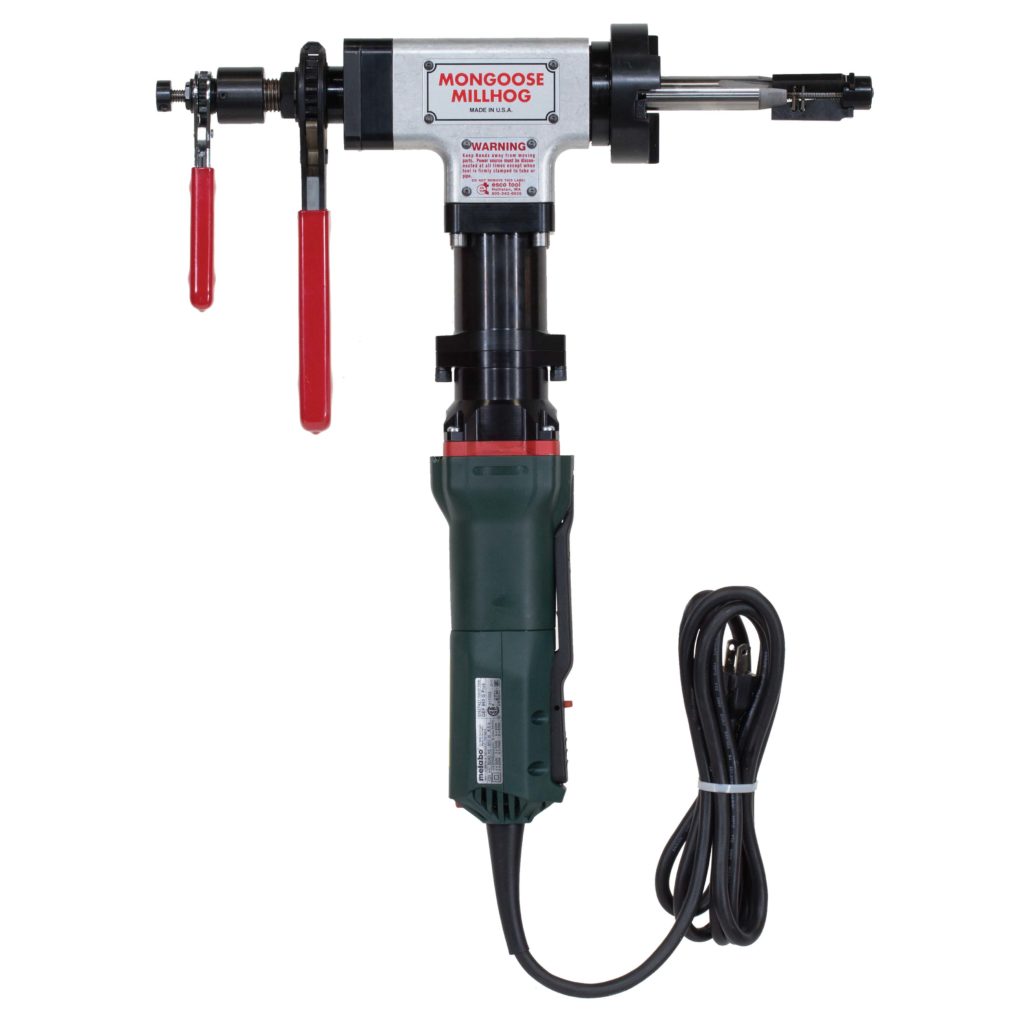

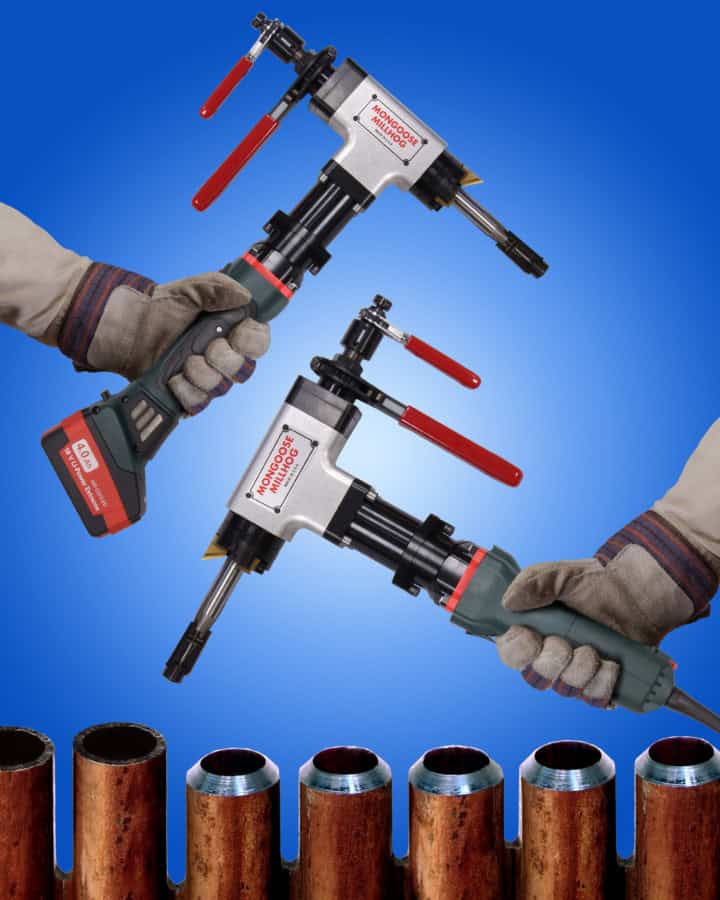

Interchangeable pneumatic, electric and battery motor options
Patented clamp system, allows the clamps to release from a tube as easily as they tighten
Permanently attached wrenches
Bevel, face and bore simultaneously
Rugged dual-opposed tapered roller bearings support gear drive for non-stop operation
EscoLock blade holding system reduces vibration and maximizes the number of preps per blade

SPECS

IMPERIAL

METRIC

IMPERIAL

Working Range		0.625" I.D. - 3.0" O.D.
Blade Series		G-Series Blades
Min. Width		2.25"
Length		15.25"
	Pneumatic	Electric	Battery
	1.07 hp	950 W	18 V - 5.2 ah
	90 psi	120 V	120 V
	35 cfm	50/60 Hz	50/60 Hz
Cutterhead Speed	114 rpm	14-58 rpm	43 rpm
Working Weight	14.8 lbs	15.9 lbs	16.4 lbs
Shipping Weight	32.1 lbs	40 lbs	40.6 lbs
Shipping Dimensions	20" x 18" x 5"	24" x 20" x 6"	24" x 20" x 6"

METRIC

Working Range		15.9mm I.D. - 76.2mm O.D.
Blade Series		G-Series Blades
Min. Width		57.2mm
Length		387.4mm
	Pneumatic	Electric	Battery
	800 W	950 W	18 V - 5.2 ah
	6.2 bar	220 - 240 V	220 - 240 V
	990 Lt/min	50/60 Hz	50/60 Hz
Cutterhead Speed	114 rpm	14-58 rpm	43 rpm
Working Weight	6.7 kgs	7.2 kgs	7.4 kgs
Shipping Weight	14.5 kgs	18.14 kgs	18.41 kgs
Shipping Dimensions	508mm x 457mm x 127mm	610mm x 508mm x 152mm	611mm x 508mm x 152mm

ACCESSORIES

Mandrel Kit 0.625"

Wedge Kit

Air Clamp

Membrane

Overlay

Mandrel Kit 0.625"

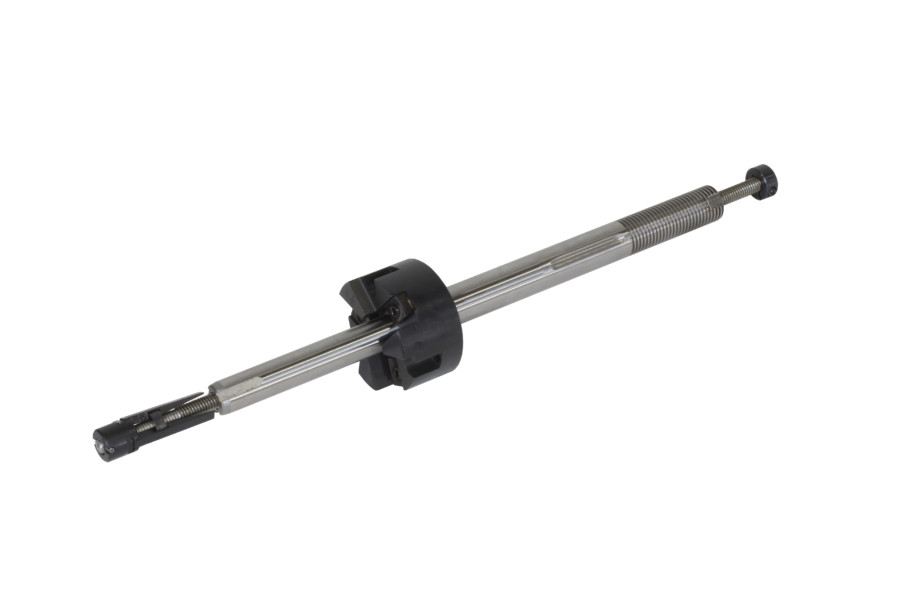

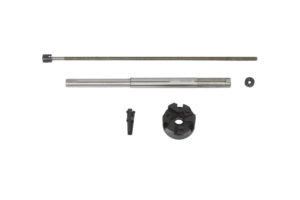

Mandrel Kit (0.625" / 15.9mm) part #: MG-175

The MG-175 mandrel kit is designed for the Mongoose gear head and will allow the tool to fit in tube with 0.625" (15.9mm) I.D. This kit comes with a specific cutterhead that will fit the smaller 0.625" (15.86mm) mandrel, along with the draw rod assembly. Clamping range of the Mandrel Kit is 0.625" (15.9mm) I.D. - .780" (19.8mm) I.D.

Includes

Wedge Kit

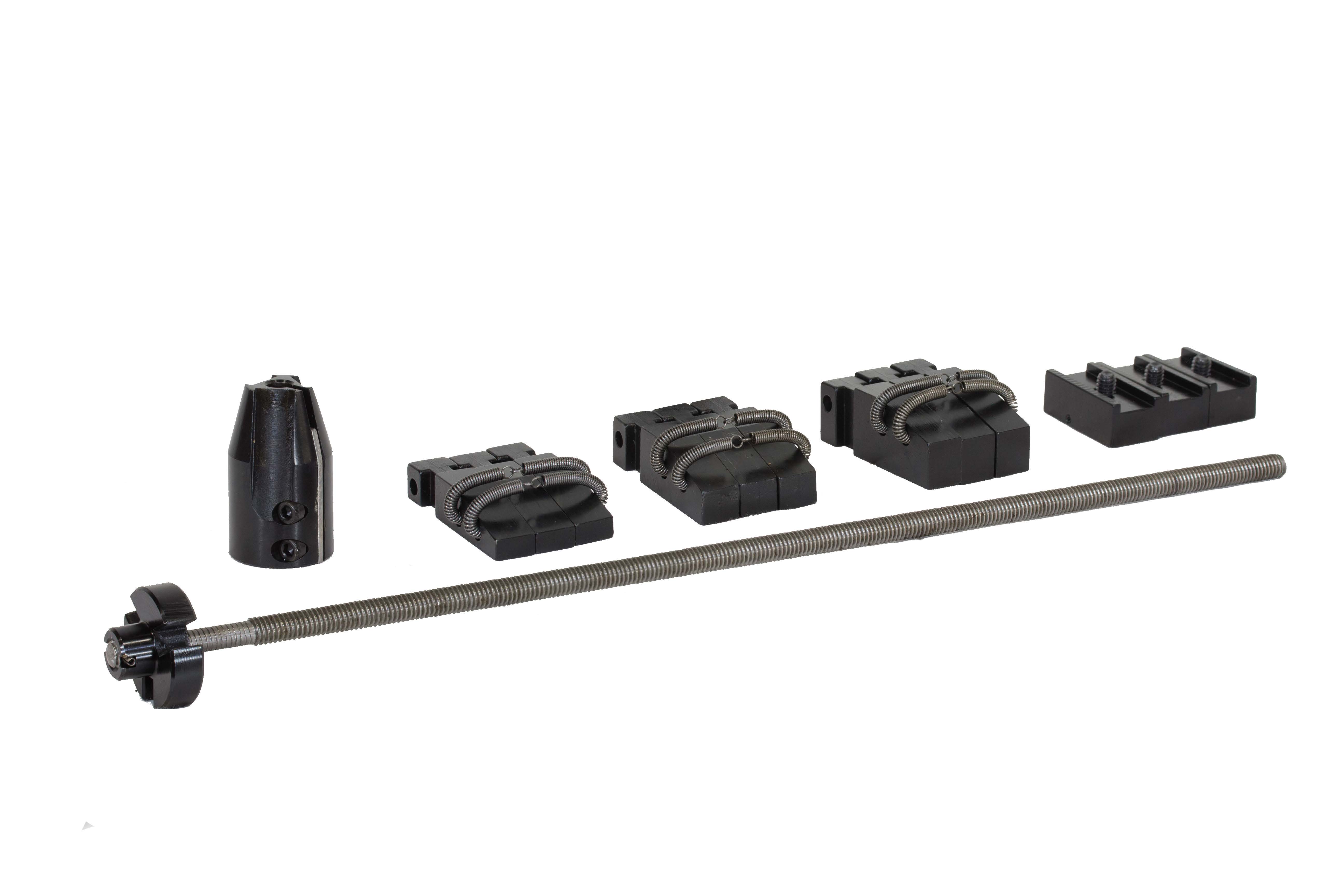

Wedge Kit part #: MG-400

The Mongoose wedge kit is used in applications with heavy wall or when the user needs to extend the range of their Mongoose. Hardware easily slides over the existing ¾” mandrel and comes with a draw rod assembly to fit the bigger H-series ribs. Clamping range of the wedge kit is 1.525" I.D. - 2.9" I.D. (38.8mm I.D. - 73.7mm I.D.)

Includes

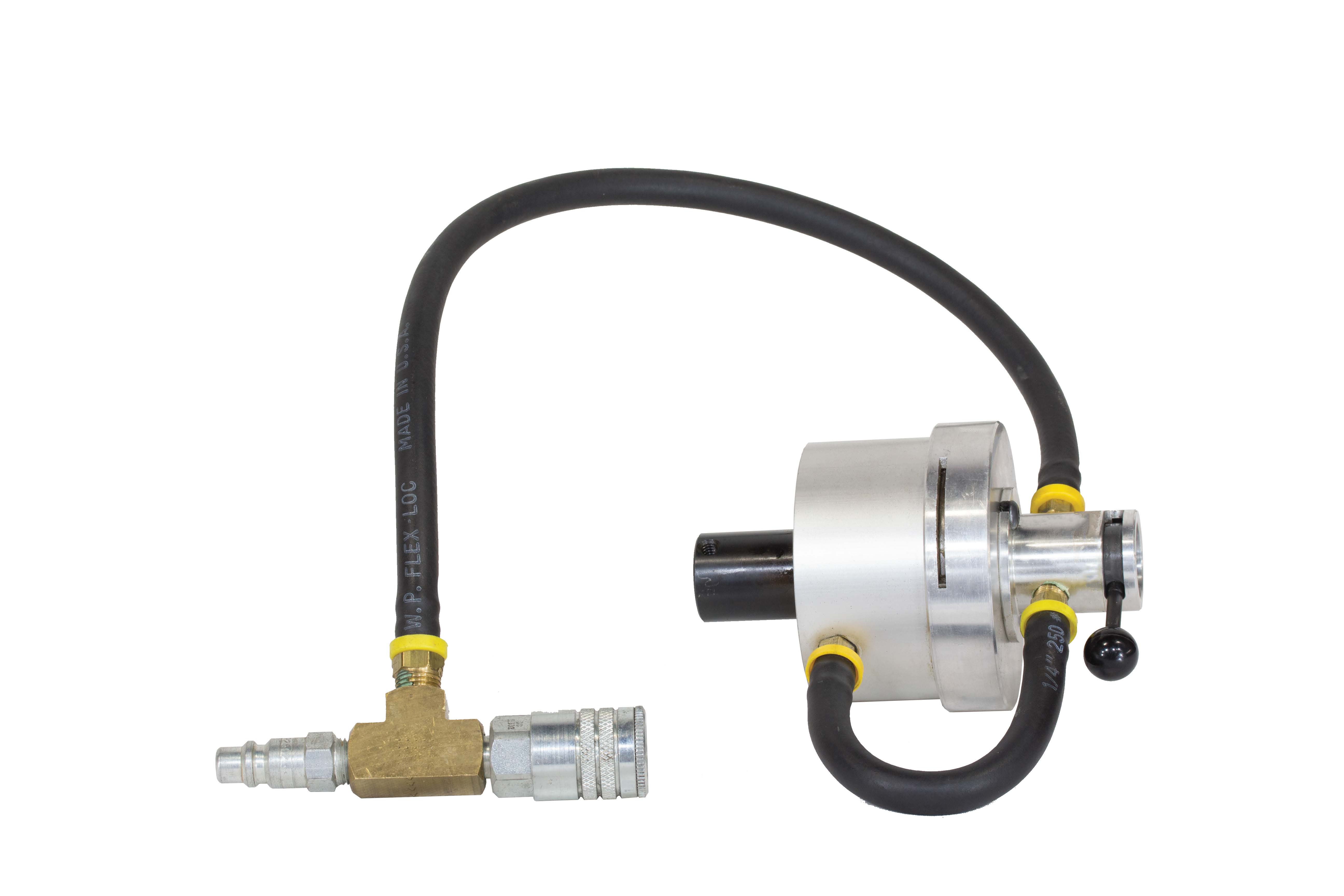

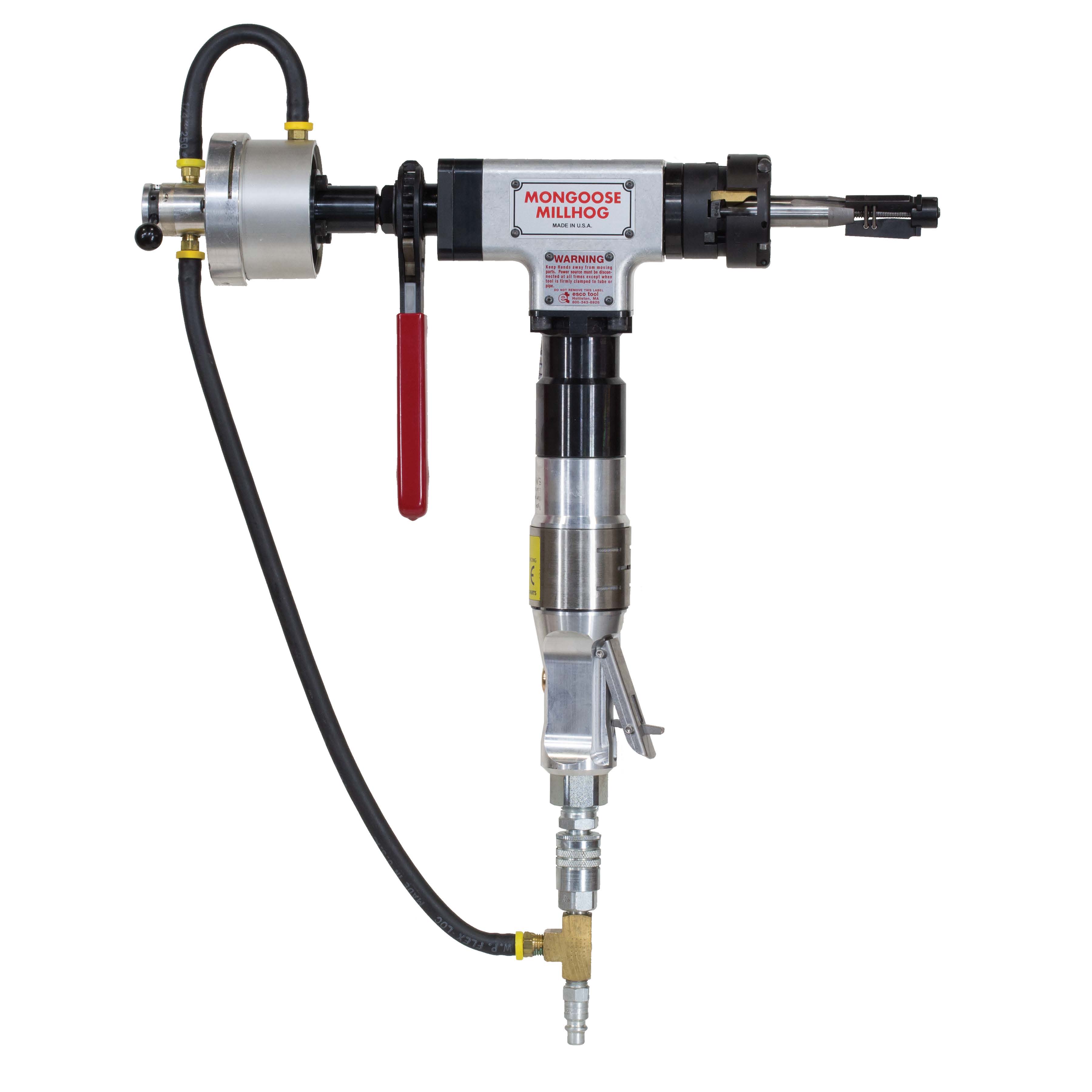

Air Clamp

Air Clamp part #: G-270

Air Clamp for the Mongoose rigidly clamps the tool to the pipe using an air clamp to pull the draw rod instead of the manual clamp wrench. With the flip of a switch, the tool can be clamped or released for high production and reduced cycle times.

Includes

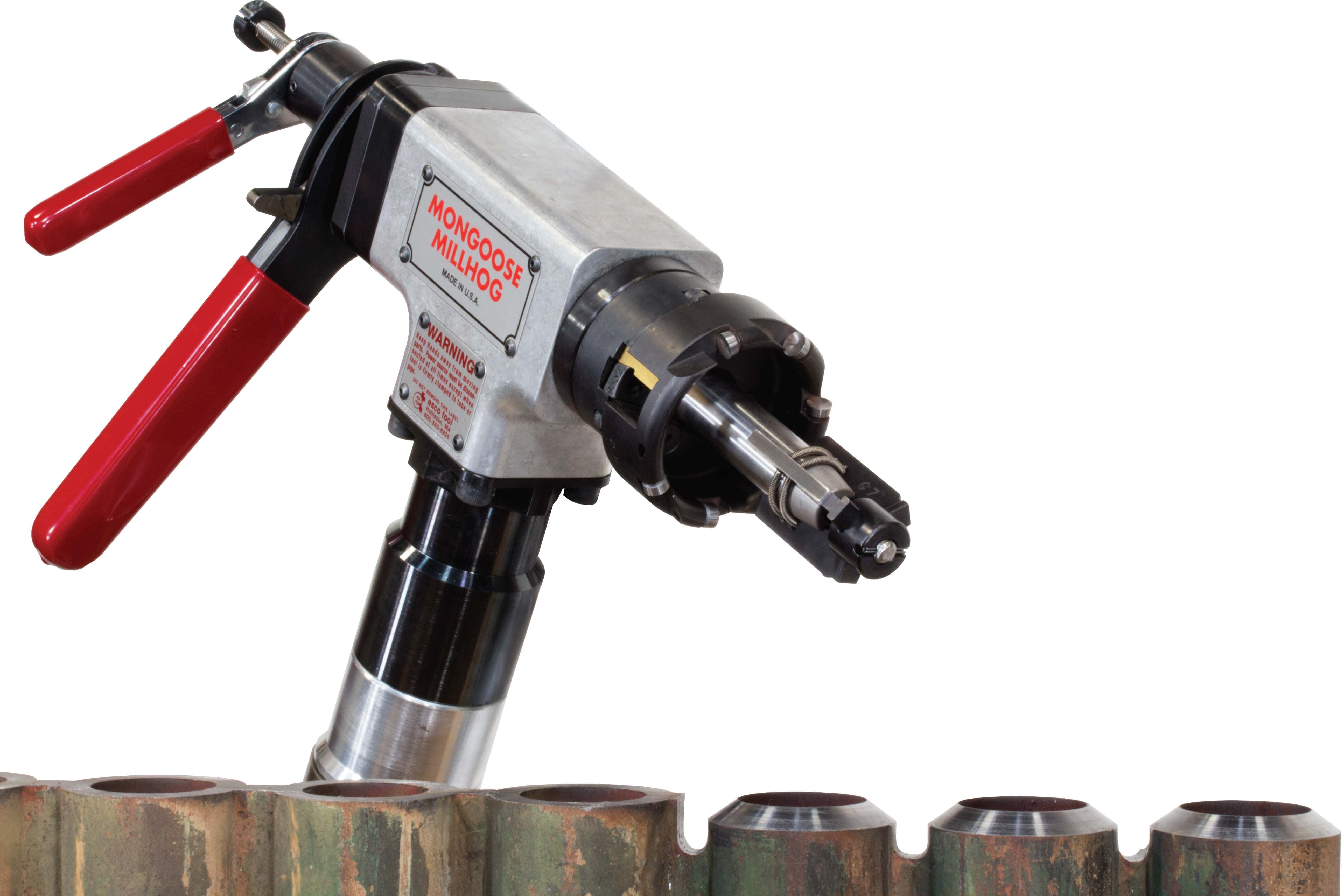

Membrane

Membrane Removal part #: Dependent on size (see chart)

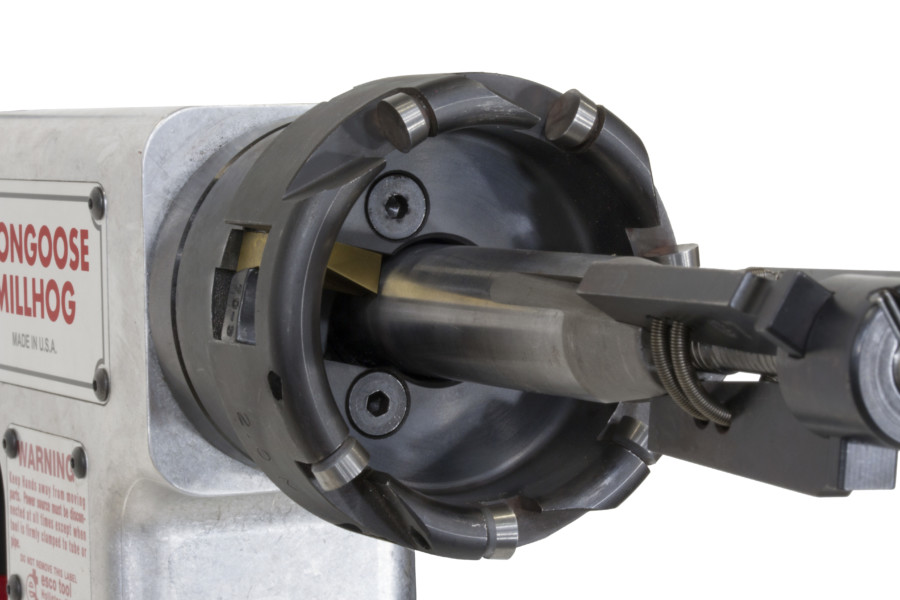

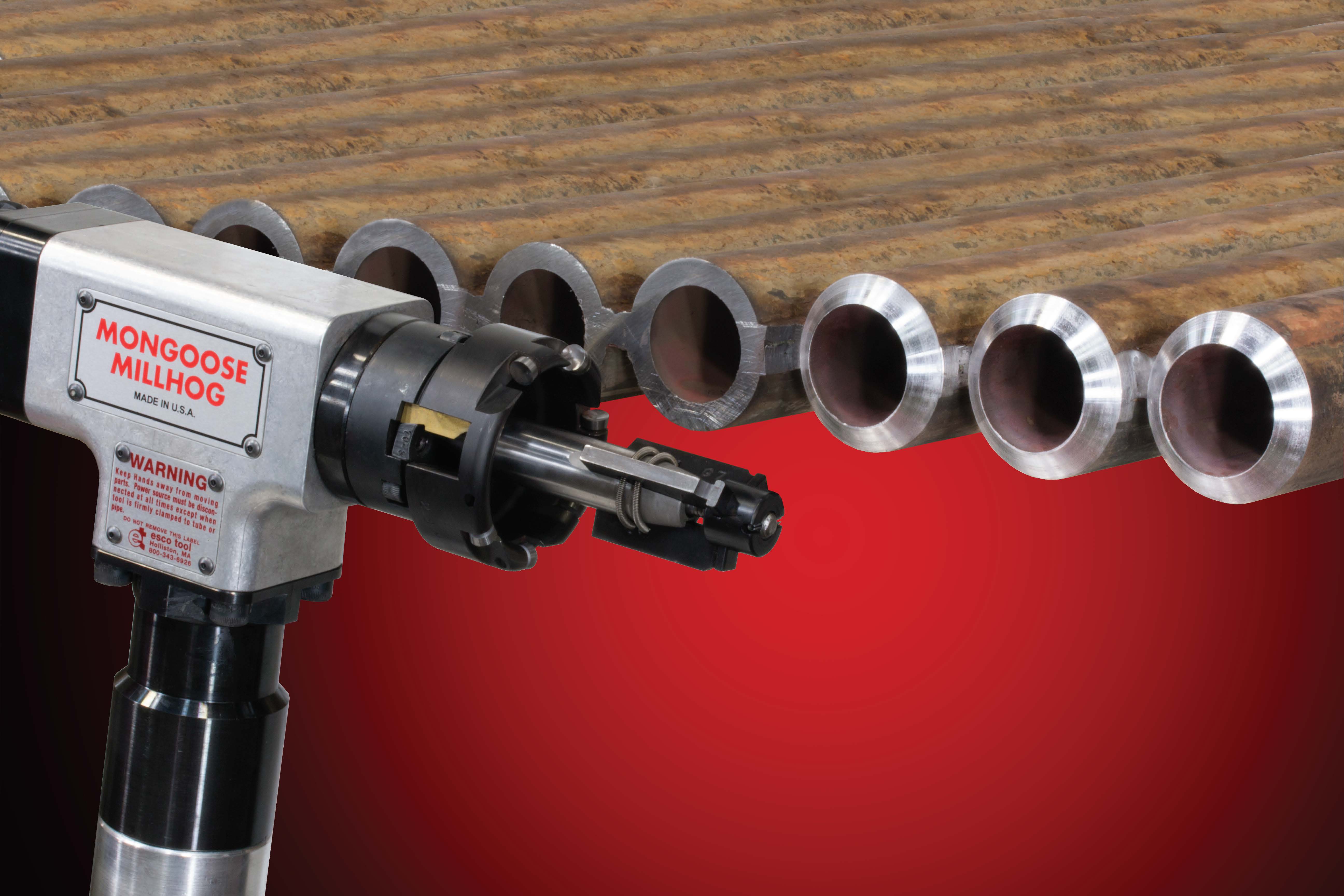

Cutting head designed to remove the membrane between tubes on a boiler panel. Membrane heads use MRB-8 Inserts, an 8mm carbide bit, to remove material (same insert for Overlay heads). A specific base cutter head is required for mounting.

Includes

Size Chart

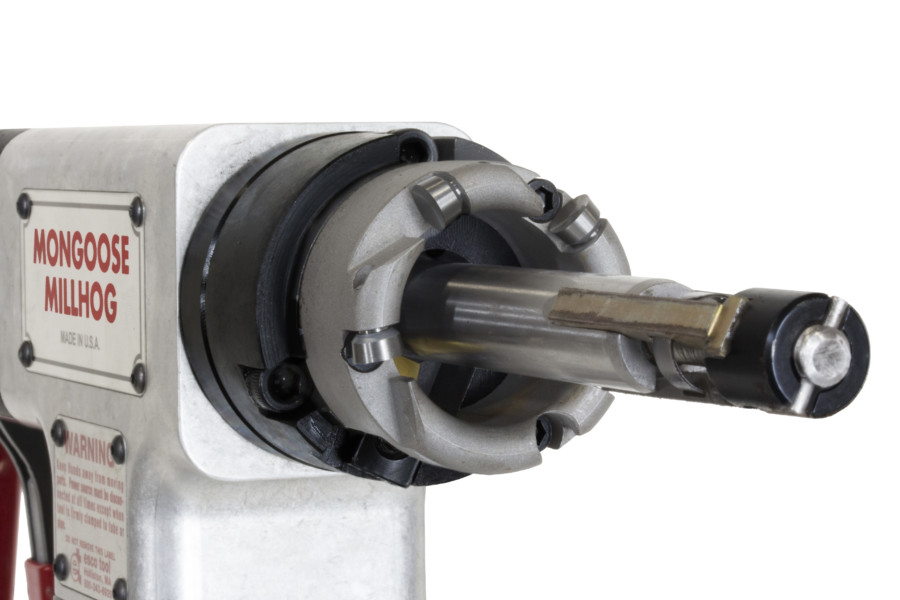

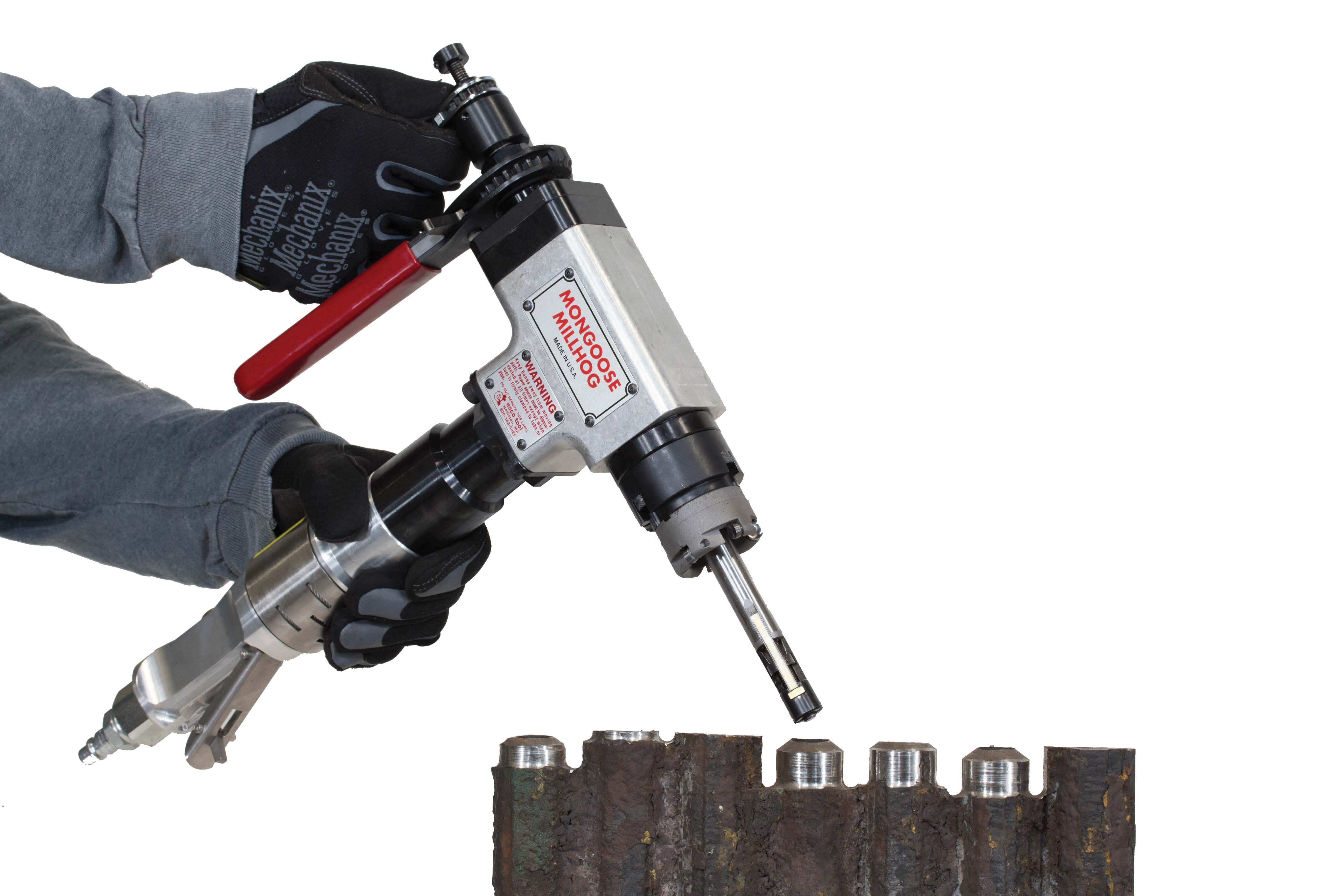

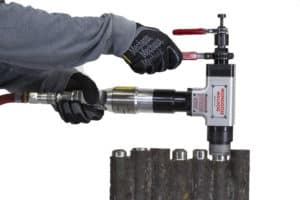

Overlay

Overlay Removal part #: Dependent on size (see chart)

Cutting head designed to remove the membrane and overlay on a boiler panel that has been coated with overlay material. Uses the same 8mm insert as the membrane heads to remove material. A specific base head is required for mounting. Slightly smaller circumference compared to the membrane heads, forces the head under hard material.

Includes

Size Chart

Photos

VIDEOS

Mongoose Demo

RESOURCES

Charts

CLAMP RIB CHART - MONGOOSE MILLHOG

Mandrel	Clamp Rib Set	I.D. Range (in)	I.D. Range (mm)
Optional 0.625" (15.9 mm)	G-02A	.625 - .780	15.9 - 19.8
Standard 0.75" (19.1mm)	G-03A	.750 - .905	19.1 - 22.9
	G-04	.875 - 1.030	22.3 - 26.1
	G-05	1.000 - 1.155	25.4 - 29.3
	G-06	1.125 - 1.280	28.6 - 32.5
	G-07	1.250 - 1.405	31.8 - 35.6
	G-08	1.375 - 1.530	35.0 - 38.8
	G-09	1.500 - 1.655	38.1 - 42.0
	G-10	1.625 - 1.78	41.3 - 45.2
	G-11	1.750 - 1.905	44.5 - 48.3
	G-12	1.875 - 2.030	47.7 - 51.5
	G-13	2.000 - 2.155	51.0 - 54.7
Wedge Kit MG-400	H-02	1.525 - 1.925	38.8 - 48.9
	H-03	1.850 - 2.250	47.0 - 57.2
	H-04	2.175 - 2.575	55.3 - 65.4
	H-02 & H-05	2.500 - 2.900	63.5 - 73.7

CUTTERHEAD CHART - MONGOOSE MILLHOG

Links

G-Series Blades

M/O Inserts

Documents

Brochure

Tube Size		Membrane Head	Base Head	# of Inserts
1.187"	30.2mm	MO-103	MGB-103	4
1.25"	31.8mm	MO-104	MGB-104	4
1.375"	34.9mm	MO-105	MGB-106	4
1.5"	38.1mm	MO-106	MGB-106	5
1.625"	41.3mm	MO-107	MGB-106	5
1.75"	44.5mm	MO-108	MGB-106	5
2.0"	50.8mm	MO-109	MGB-106	6

Tube Size		Membrane Head	Base Head	# of Inserts
1.187"	30.2mm	MO-203	MGB-103	4
1.25"	31.8mm	MO-204	MGB-104	4
1.375"	34.9mm	MO-205	MGB-106	4
1.5"	38.1mm	MO-206	MGB-106	5
1.625"	41.3mm	MO-207	MGB-106	5
1.75"	44.5mm	MO-208	MGB-106	5
2.0"	50.8mm	MO-209	MGB-106	6
