HHB-10000

I.D. guided, high-speed
TUBE & PIPE BEVELING MACHINE

0.45” I.D. - 4.0” O.D.
11.4mm I.D. - 101.6mm O.D.

HHB-10000 Millhog

0.45” I.D. - 4.0” O.D.
11.4mm I.D. - 101.6mm O.D.

Straight

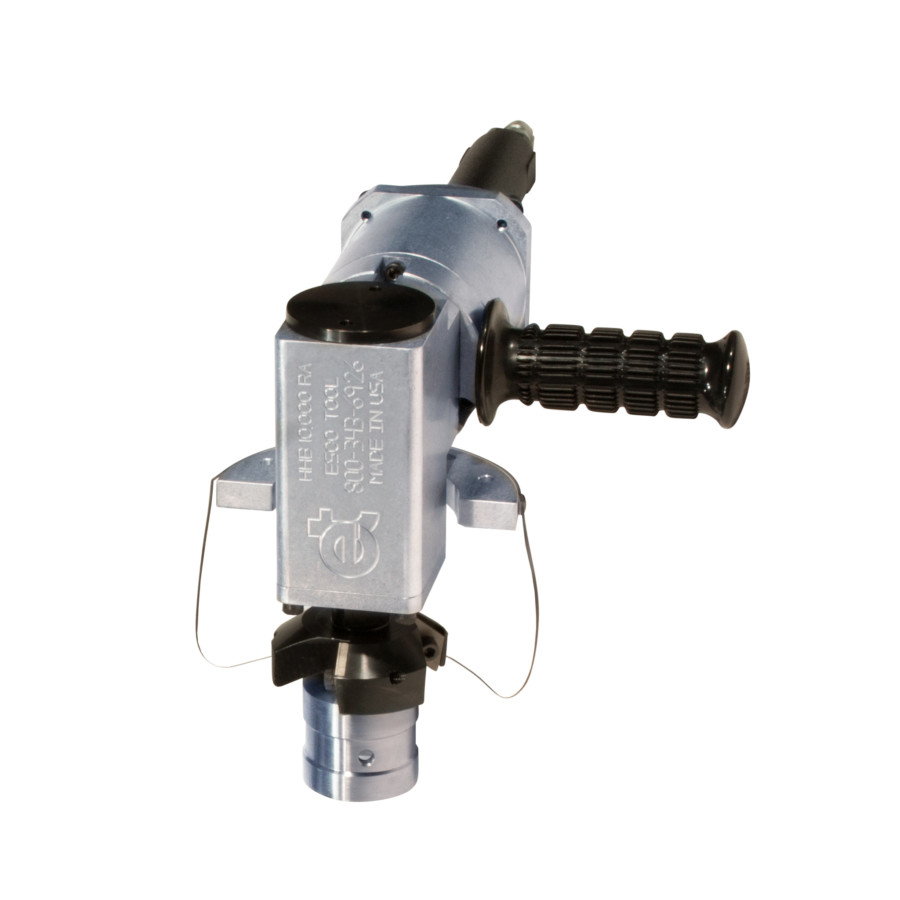

Right Angle

Straight

Right Angle

HHB-10000 MILLHOG

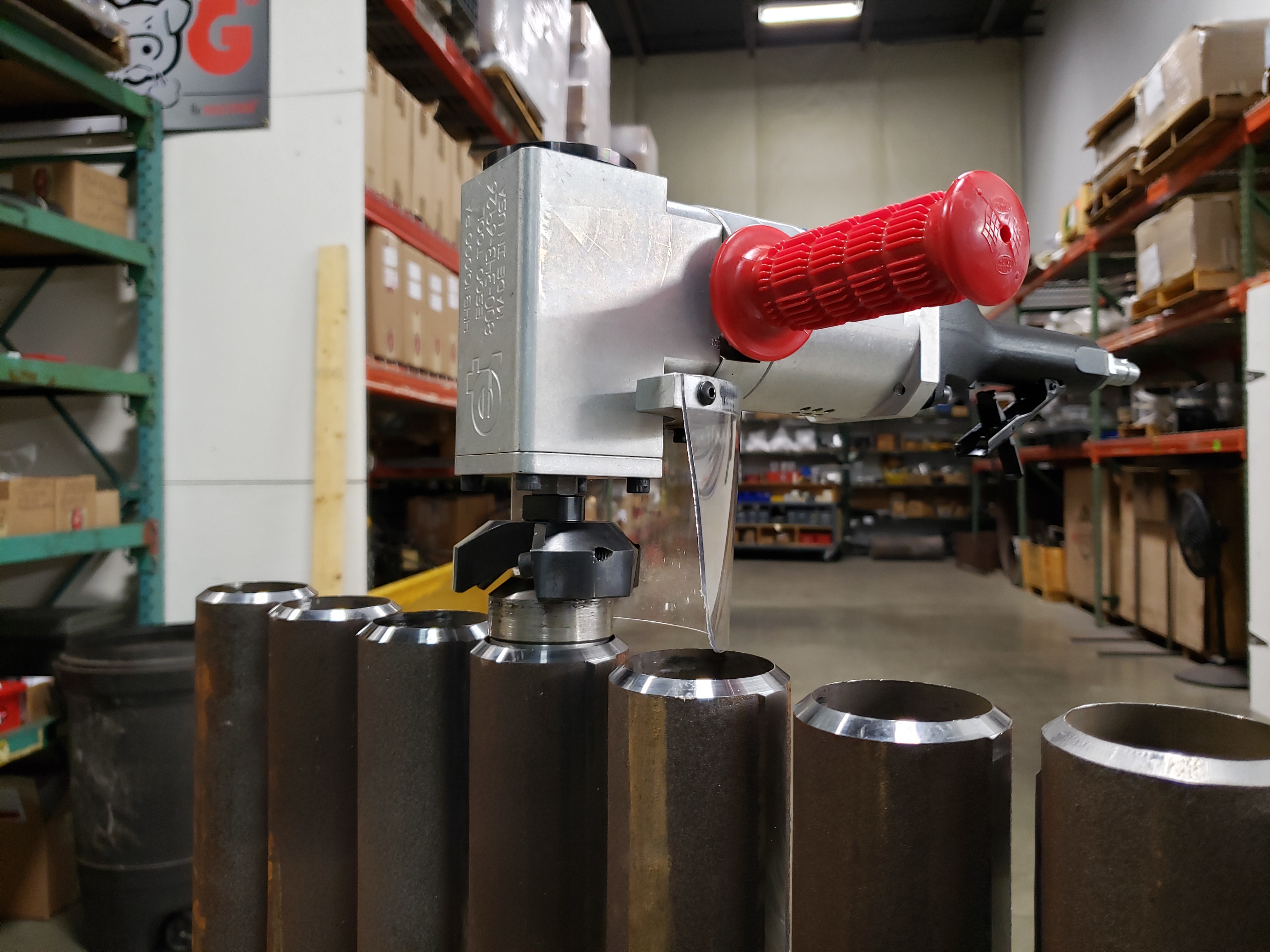

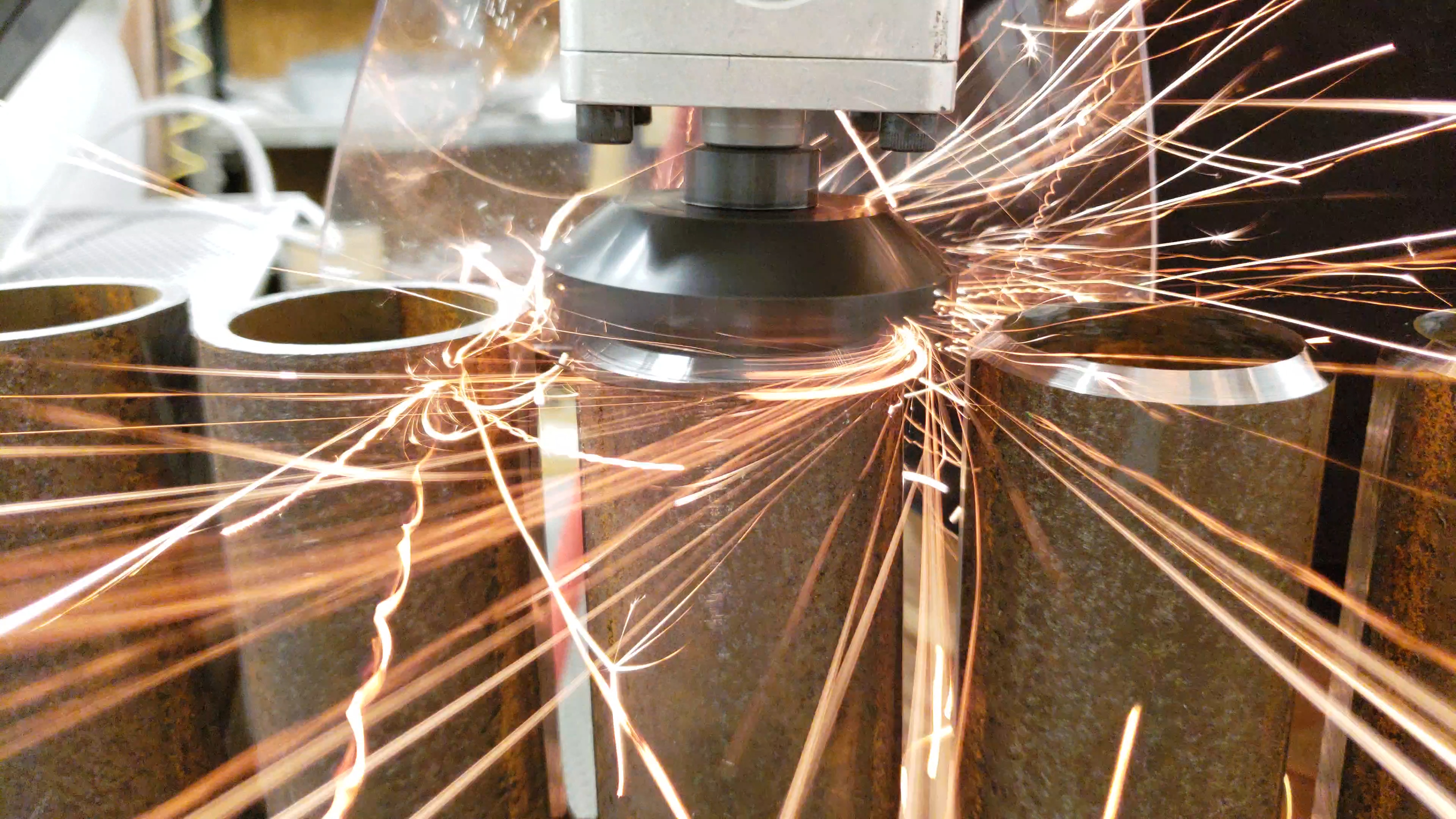

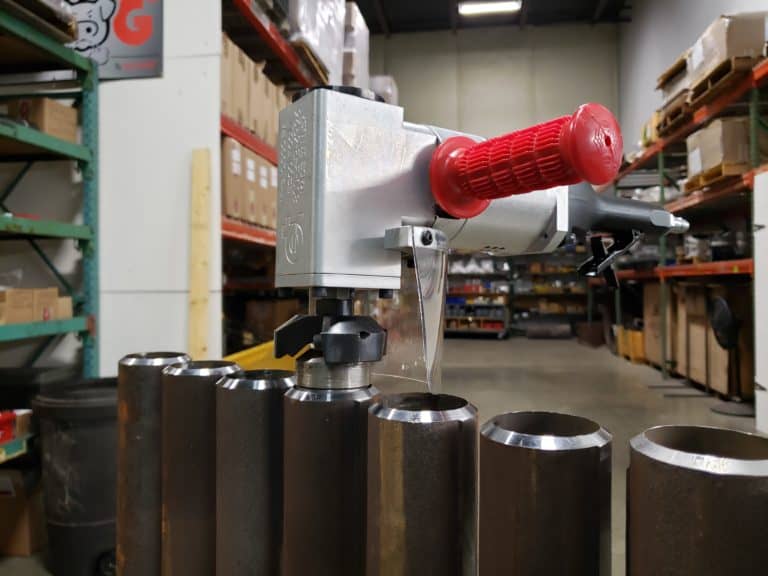

MILLHOG High speed tube bevelers feature a pilot locating system that automatically centers the tool on the tube. Simple to operate, just insert the pilot into the I.D., squeeze the throttle and finish your end prep completely in as fast as 3 seconds. The high speed cutting action creates no reaction torque, even if the tool is stalled. Straight models can be hand-held or used with the track chassis and post assembly. With this option bevel height is controlled with the adjustable depth stop and ensures all bevels are exactly the same height, saving valuable fit-up time. Right angle models are ideal for applications with height restrictions.

Available Kits

Standard

Rental

FEATURES

Bevels tubes in seconds
Hand held or track mountable with adjustable depth stop ensures uniform beveled tube ends

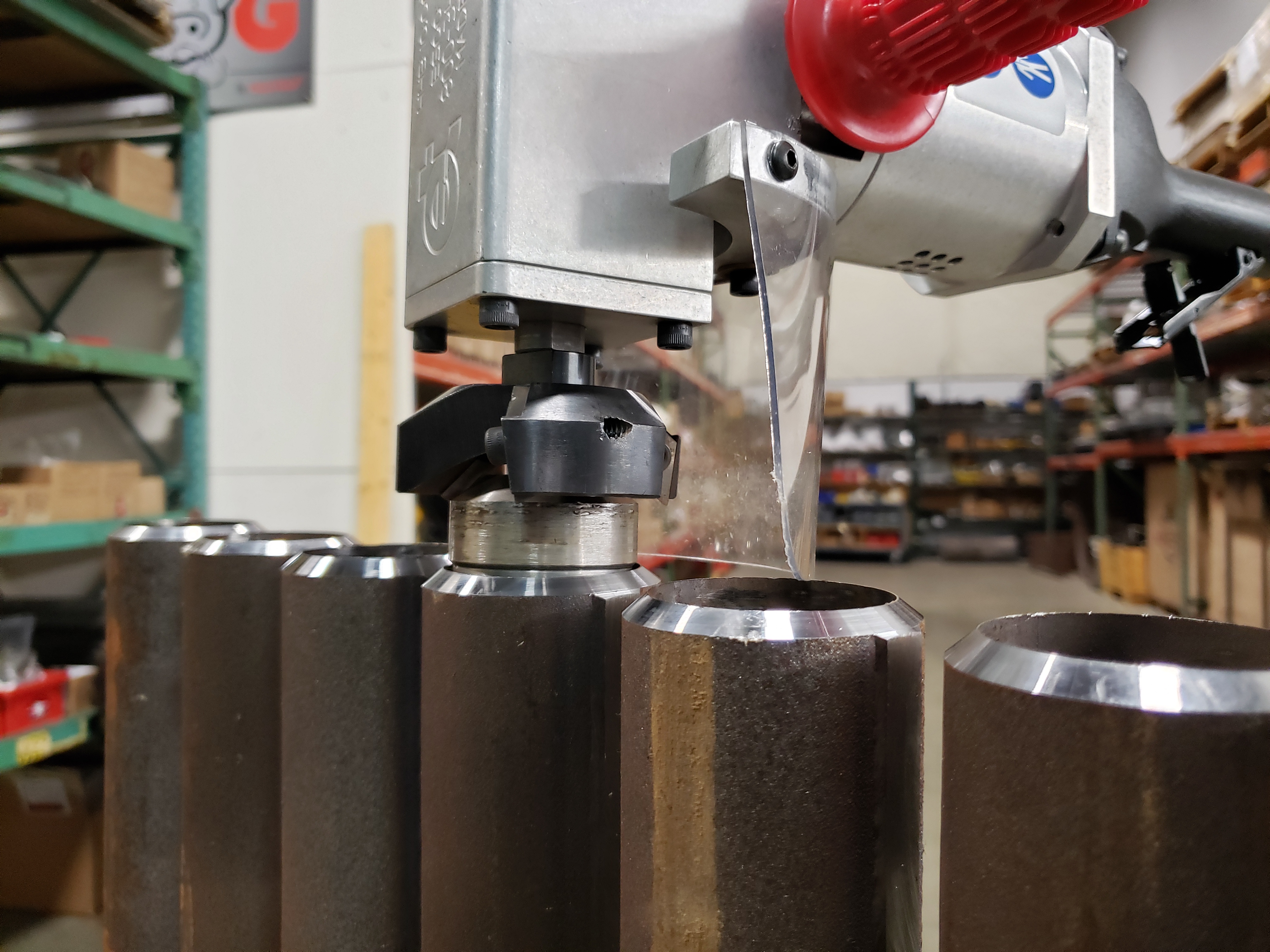

Pilot automatically locates and centers tool on pipe or tube I.D.
No clamping and no torque reaction to operator
Cutter blades have multiple cutting edges and require no fluids
Straight and right angle models
Tooling is interchangeable with all high speed models (including HHB-5000)
Fast, accurate and easy to use
Field proven, tough and boilermaker approved

SPECS

IMPERIAL

METRIC

IMPERIAL

Working Range	0.45" I.D. - 4.0" O.D.
Blade Series	HHB Inserts
Min. Width	2.25"
	Straight	Right Angle
	3 hp	3 hp
	90 psi	90 psi
	80 cfm	80 cfm
Cutterhead Speed	10,000 rpm	10,000 rpm
Working Weight	14 lbs	13 lbs
Shipping Weight	45 lbs	45 lbs
Shipping Dimensions	27" x 18" x 7"	27" x 18" x 7"

METRIC

ACCESSORIES

Track Post

Track Chassis and Post Assembly

Part Number: 1050-83

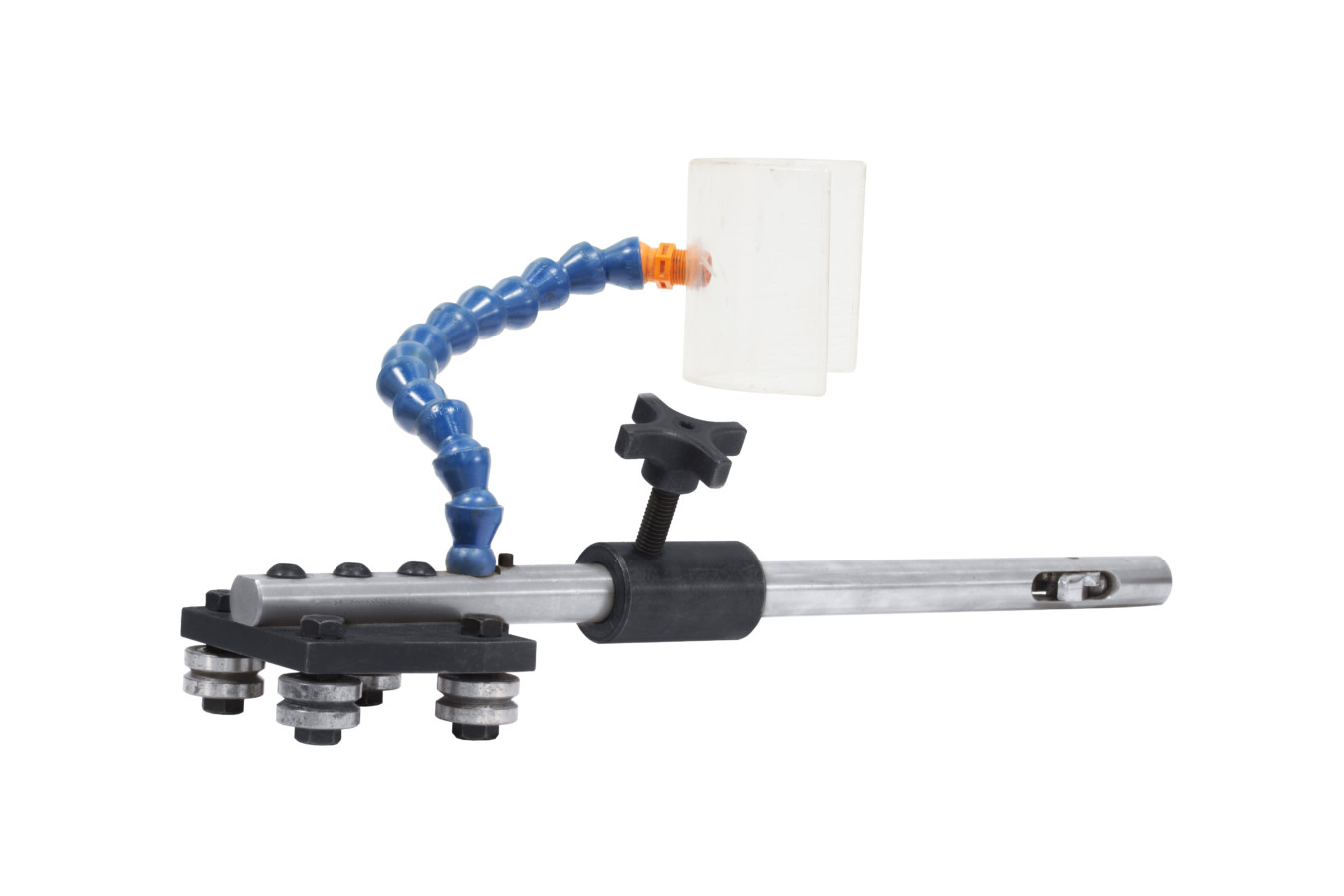

The Track Chassis and Post Assembly allows the HHB-5000 and the HHB-10000 to ride along the saw track that is used for cutting panels and membrane. This accessory features a wing-lock system to keep the tool safely secured to the post, while still allowing for necessary movement as well an adjustable chip guard to keep chips away from the operator. Track Chassis and Post Assemblies are most commonly used in conjunction with the saw, so tracks are not included with this kit.

Includes

Photos

Videos

HHB-10K beveling 2-1/2" tubes

Waterwall Replacement

RESOURCES

Charts

CUTTERHEAD CHART - HHB-10000 MILLHOG

Cutterhead Part #	Insert Size		Max Tube O.D.		Min Tube I.D.		Cutterhead Size
Cutterhead Part #	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)
1050-01	0.5	12.7	1.25	31.8	0.45	11.4	1.6	40.64
1050-02	0.5	12.7	1.5	38.1	0.7	17.8	1.85	47
1050-03	0.625	15.9	1.75	44.5	0.7	17.8	2.1	53.34
1050-04	0.625	15.9	2.0	50.8	0.95	24.1	2.35	59.69
1050-05	0.625	15.9	2.25	57.2	1.2	30.5	2.6	66.04
1050-06	0.625	15.9	2.5	63.5	1.45	36.8	2.85	72.4
1050-07	0.625	15.9	2.75	69.9	1.7	43.2	3.1	78.7
1050-08	0.625	15.9	3.0	76.2	1.95	49.5	3.35	85.1
1050-09	0.625	15.9	3.25	82.6	2.2	55.9	3.6	91.4
1050-10	0.625	15.9	3.5	88.9	2.45	62.2	3.85	97.8
1050-11	0.625	15.9	3.75	95.3	2.7	68.6	4.1	104.1
1050-12	0.625	15.9	4.0	101.6	2.95	74.9	4.35	110.5

Links

Inserts

Documents

Brochure

Working Range	11.4mm I.D. - 101.6mm O.D.
Blade Series	HHB Inserts
Min. Width	57.2mm
	Pneumatic	Right Angle
	2237 W	2237 W
	6.2 bar	6.2 bar
	2265 Lt/min	2265 Lt/min
Cutterhead Speed	10,000 rpm	10,000 rpm
Working Weight	6.4 kgs	5.9 kgs
Shipping Weight	20.4 kgs	20.4 kgs
Shipping Dimensions	666mm x 457mm x 177mm	666mm x 457mm x 177mm
