Tube and Pipe Beveling Tool.
The Ground MILLHOG.

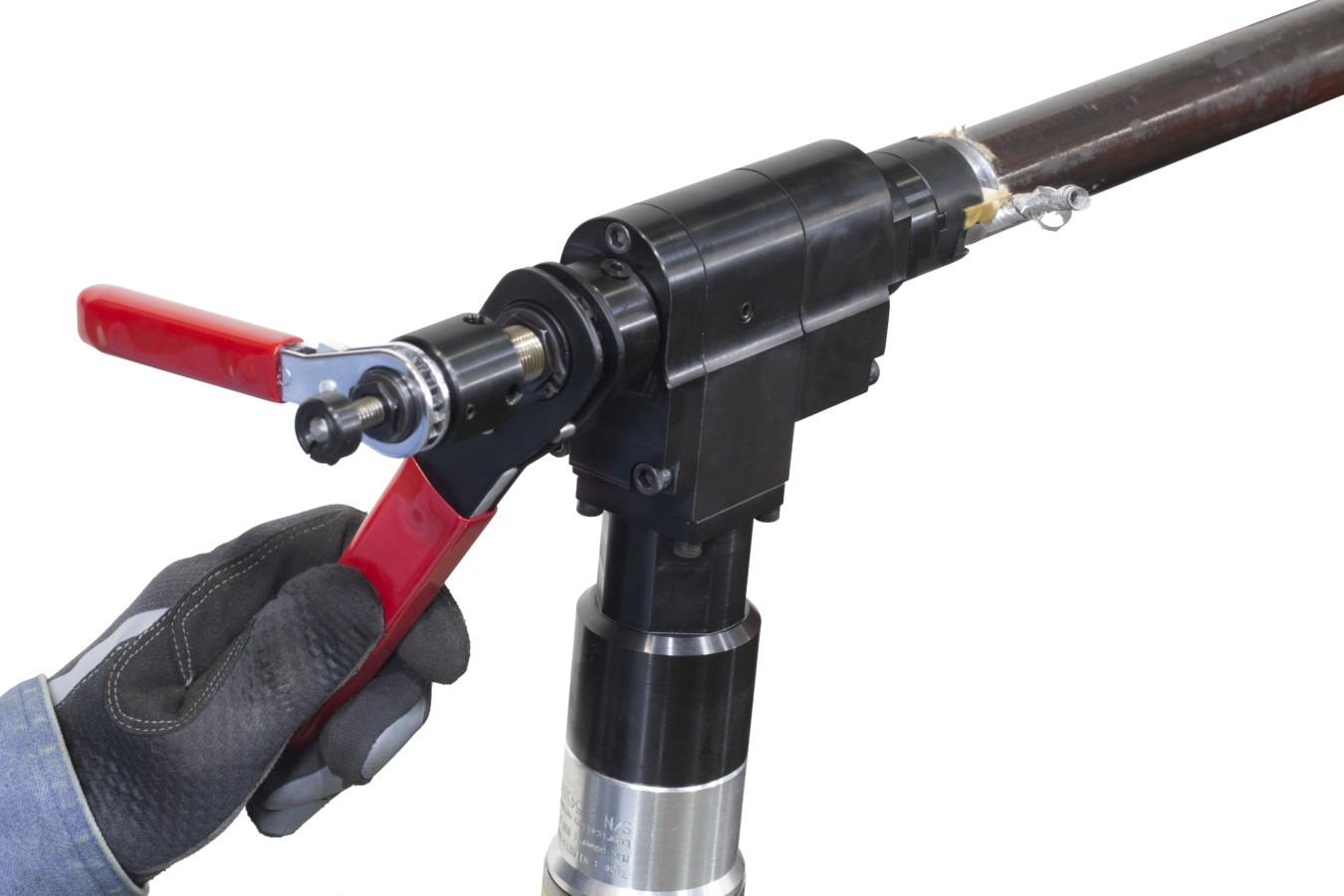

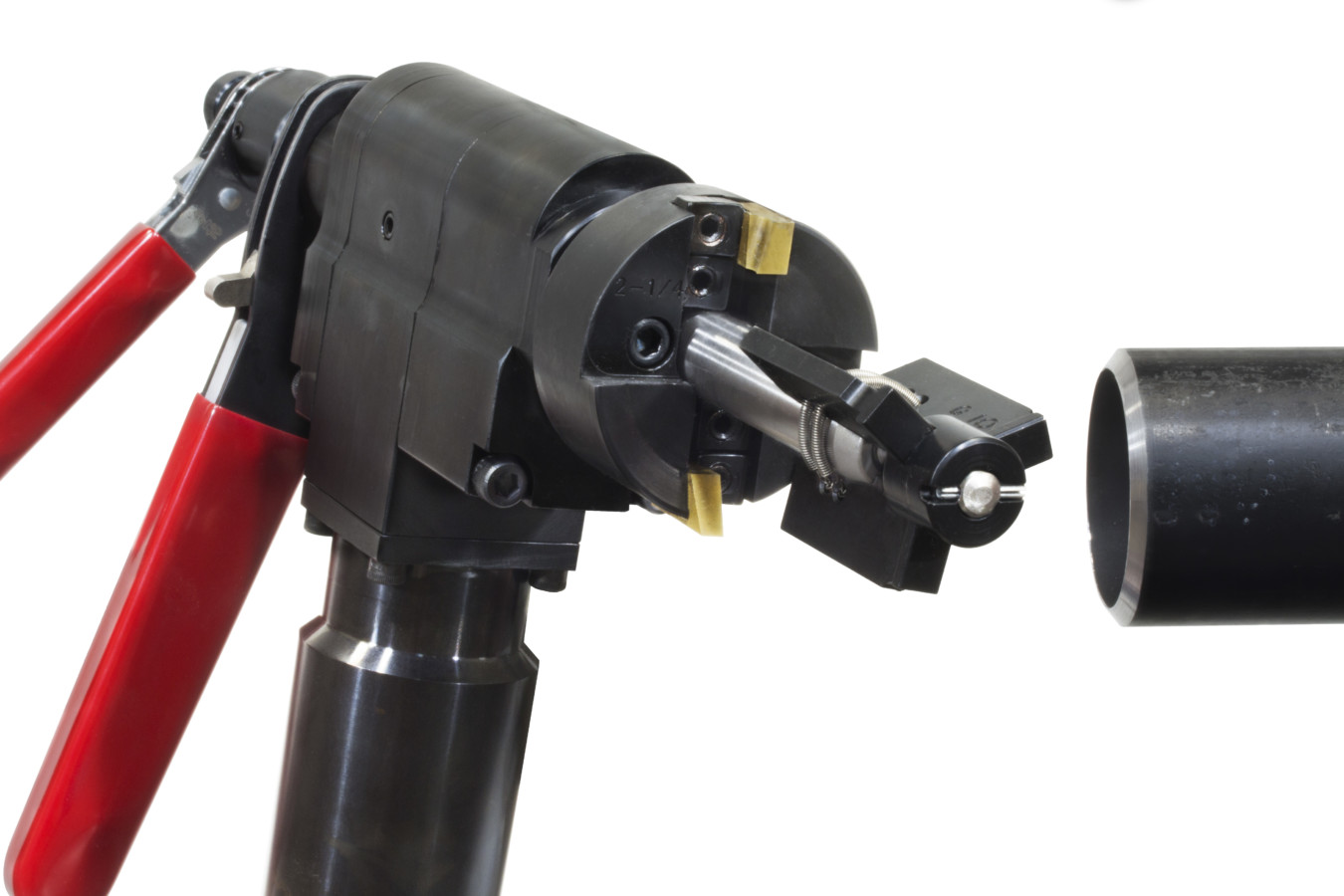

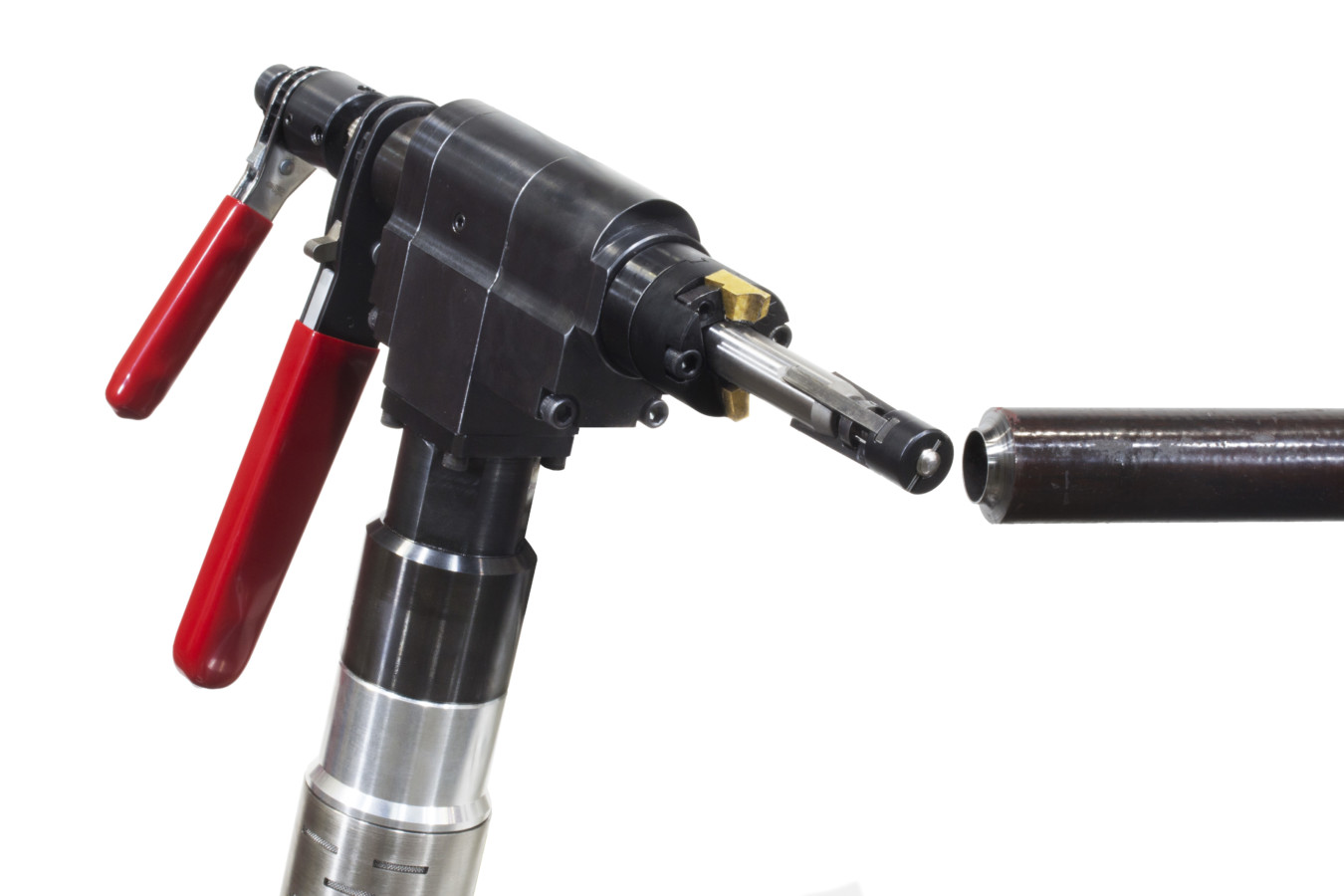

The Ground MILLHOG is a right angle, I.D. clamping beveling machine that is only 1.5in (38.1mm) wide and fits between boiler water wall tubes for beveling a single tube and other boiler tube applications with restricted access. The Ground MILLHOG is made of high quality treated materials for durability. Proprietary bearings support heavy duty gears for smooth operation on the toughest applications. Patented push-pull clamp and release system with permanently attached wrenches eliminate the possibility of loose parts separating from the tool. This high performance machine utilizes the EscoLock wedge style blade lock system and TiN coated blades for chatter-free beveling.

Available Kits

Basic

Ground MILLHOG Basic Kit #: G-200

(1) Motor and gear drive assembly (specify motor)
(1) Feed mechanism
(1) Mandrel 0.625" (15.9mm)
(1) Draw Rod Assembly
(1) Cutterhead (see cutterhead chart for options)
(1) Clamp rib set choice of (G-02A - G-13) (specify)
(1) Carrying case
(1) Operating and maintenance inst.

Note:

Pneumatic motor options add:
(1) 1/2" hose w/ filter, oiler & 3/8" coupler

Battery motor options add:
(2) 5.2ah Li-Ion batteries
(1) Charger

Complete

Ground MILLHOG Complete Kit #: G-300

(1) Motor and gear drive assembly (specify motor)
(1) Feed mechanism
(1) Mandrel 0.625” (15.9mm)
(1) Draw Rod Assembly
(1) Cutterhead 1.5" (38.1 mm)
(1) Cutterhead 2.25" (57.2 mm)
(12) Clamp rib set (G-02A - G-13)
(1) Carrying case
(1) Operating and maintenance inst.

Note:

Pneumatic motor options add:
(1) 1/2" hose w/ filter, oiler & 3/8" coupler

Battery motor options add:
(2) 5.2ah Li-Ion batteries
(1) Charger

Rental

FEATURES of the Ground MILLHOG Tube and Pipe Beveling Tool

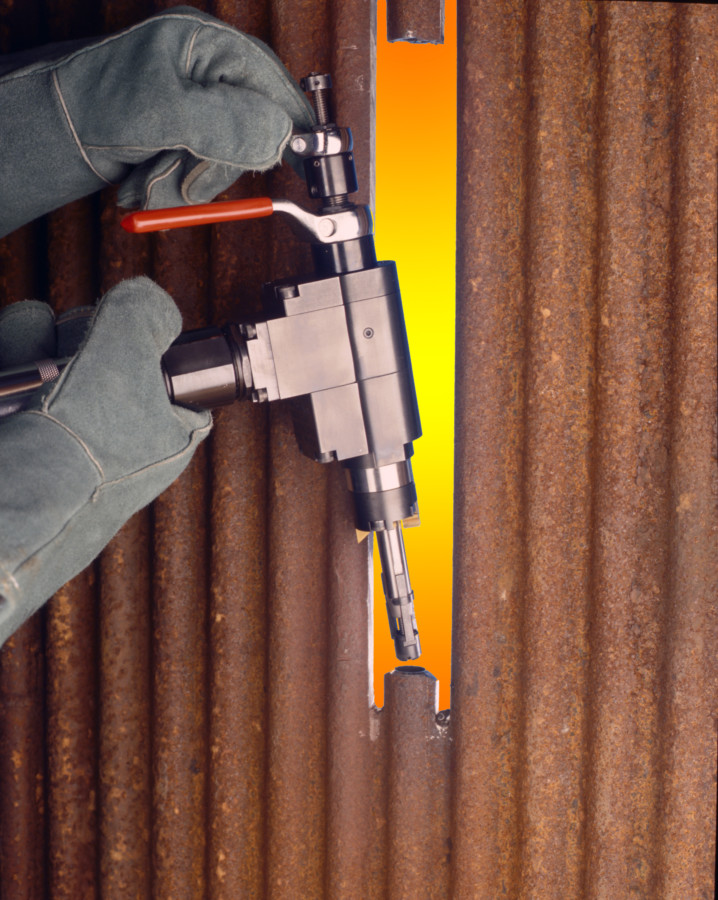

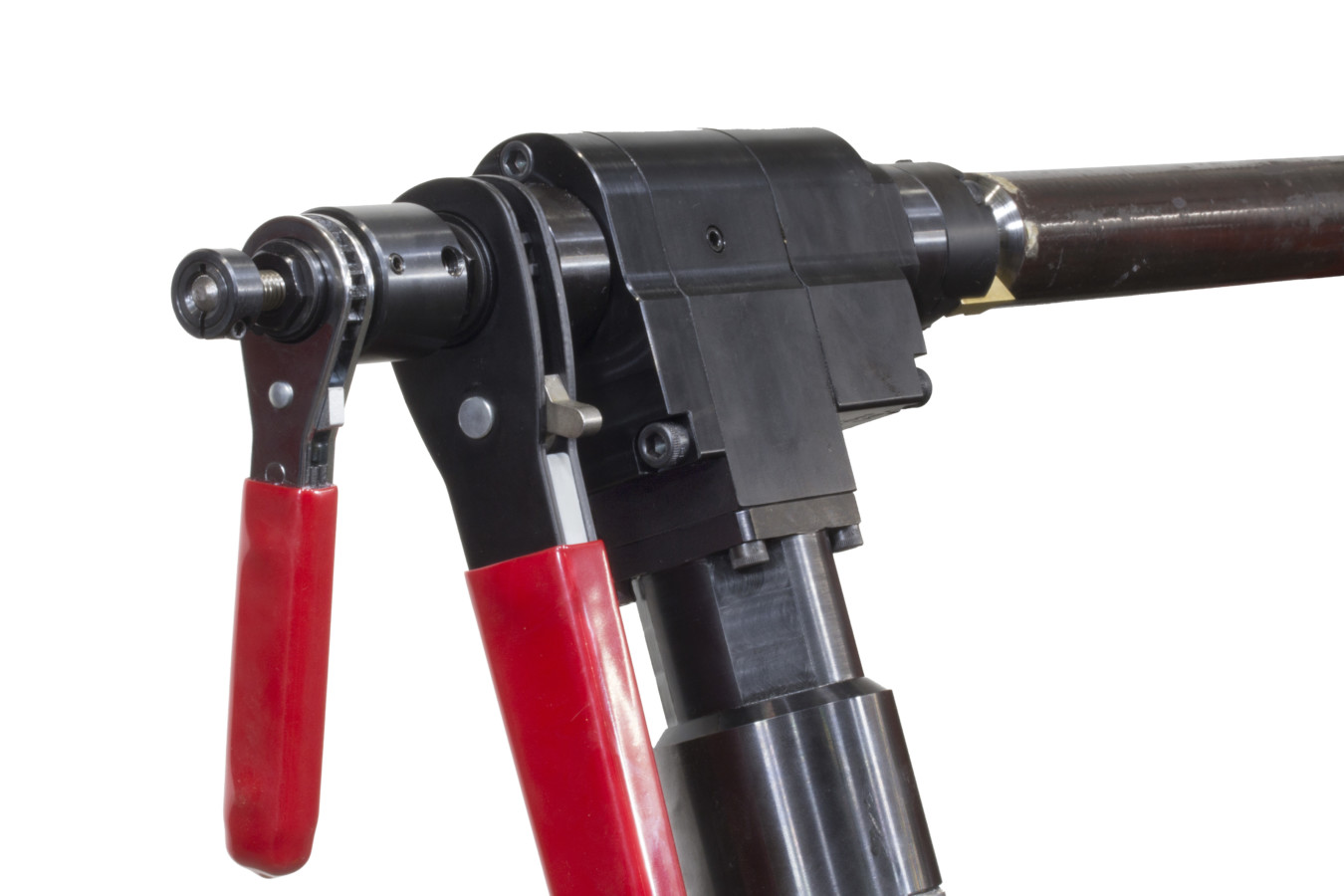

Narrow body 1.5" (38.1mm) wide for beveling a single tube in a water wall

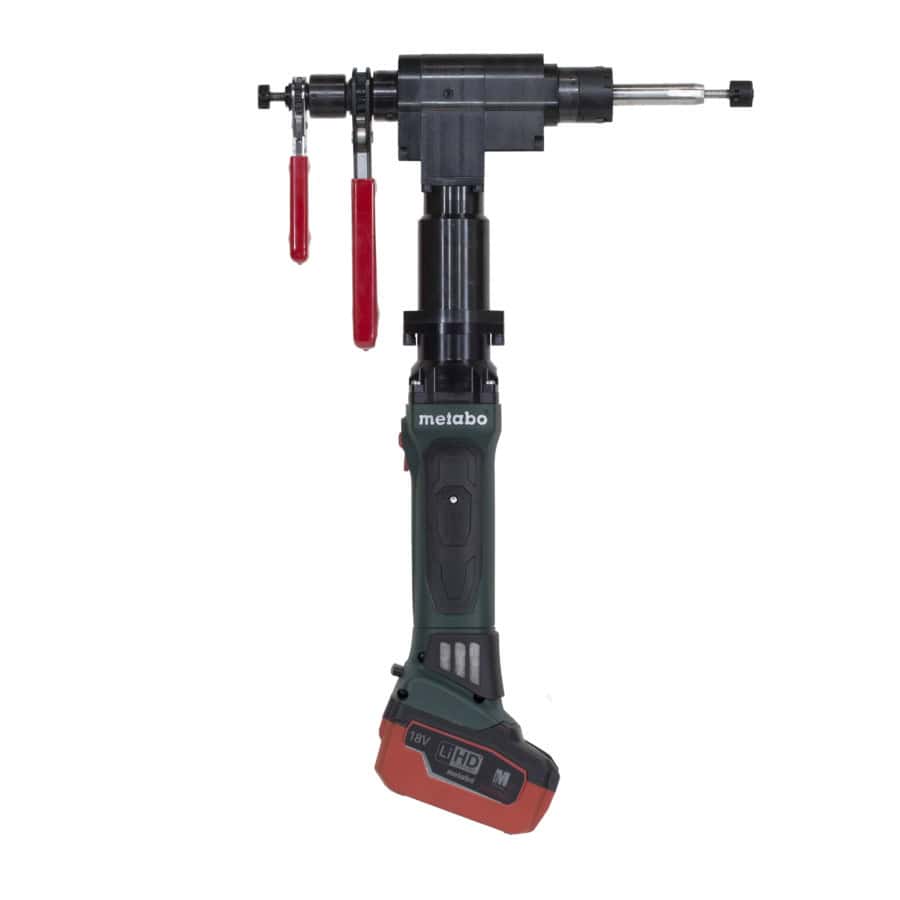

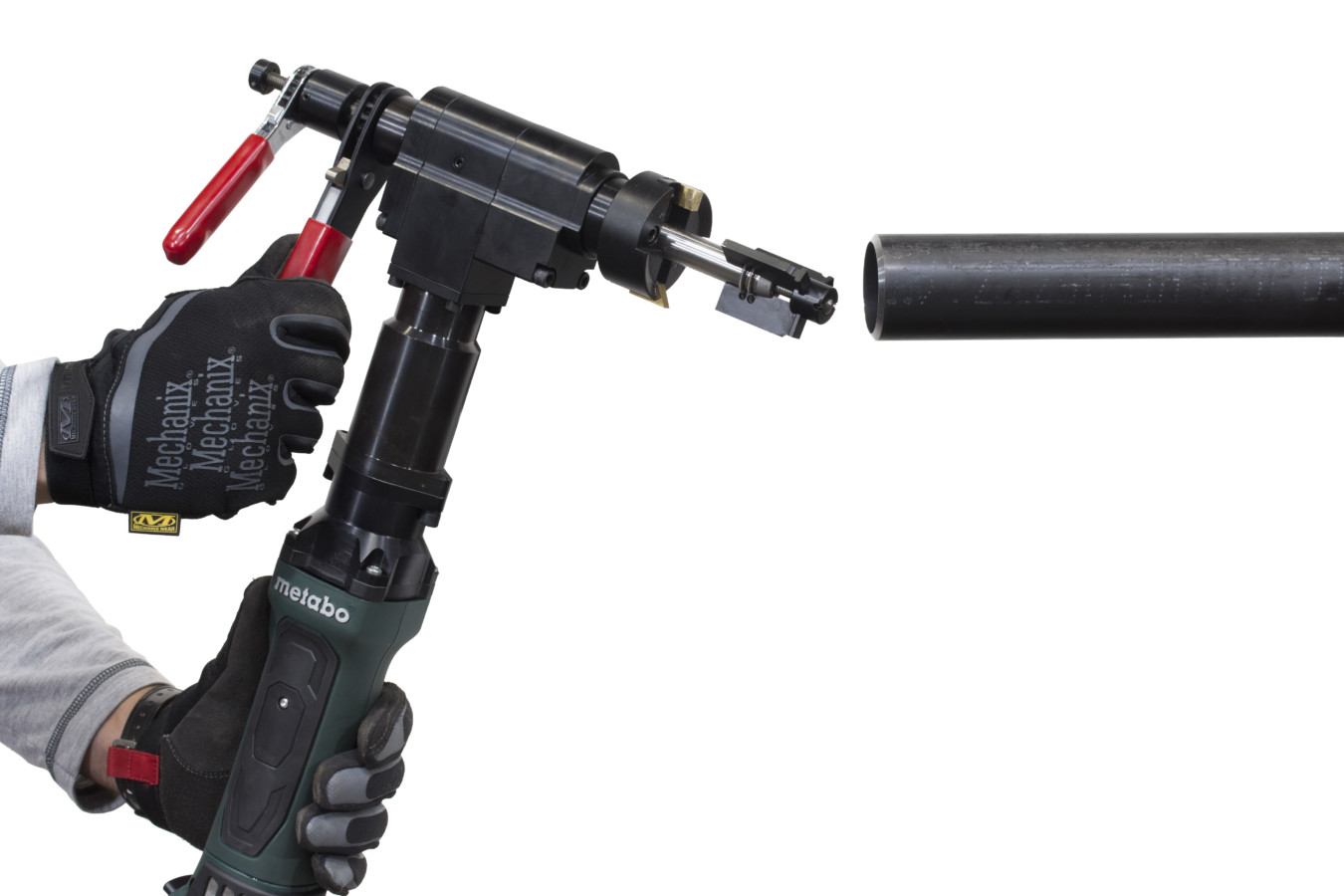

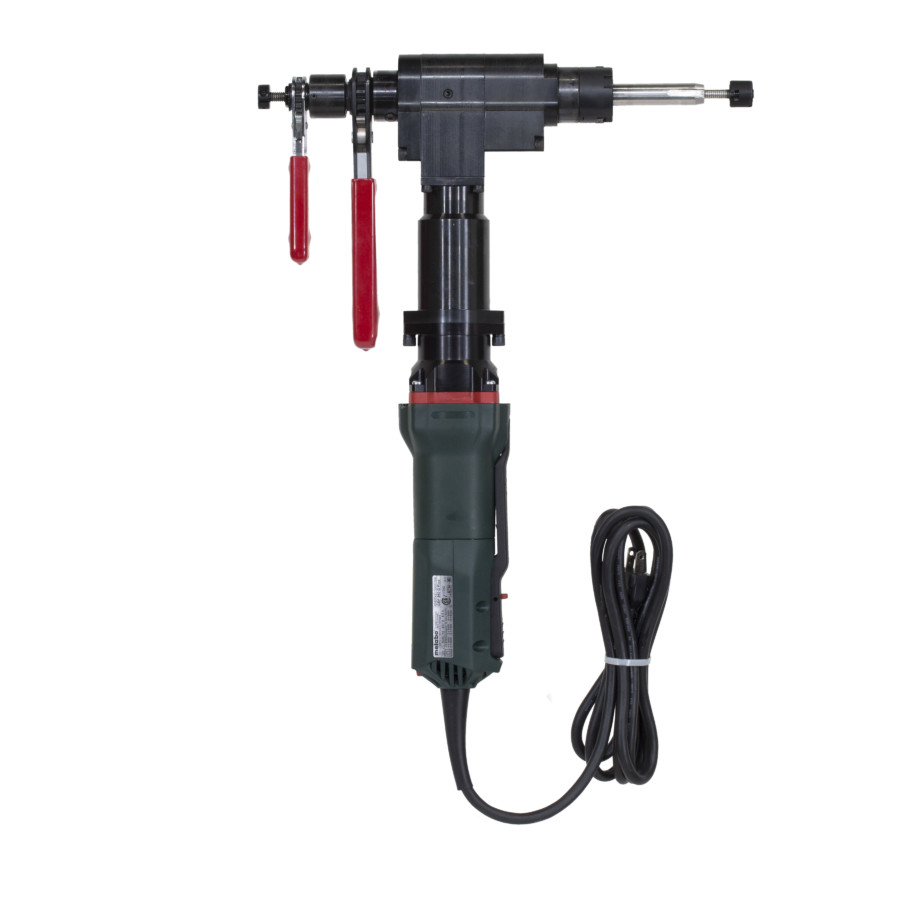

Three interchangeable motor choices, pneumatic, electric and battery
Rugged steel housing for lasting durability

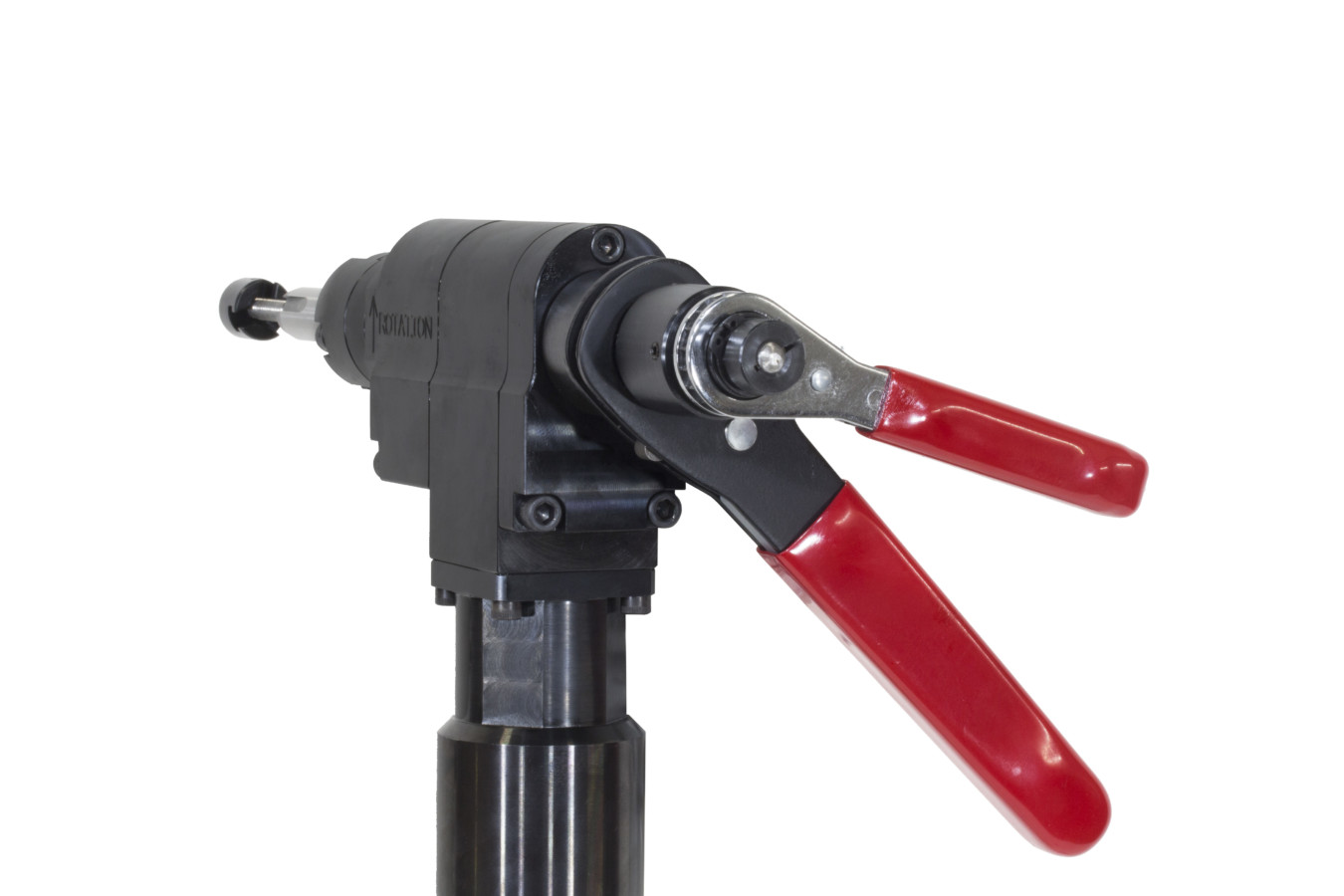

Patented clamp system, allows the clamps to release from a tube as easily as they tighten
Permanently attached wrenches keep the operating essentials at the operator's finger tips
Dual-opposed tapered roller bearings support the gear drive
Proprietary EscoLock blade holding system minimizes vibration and maximizes tube and pipe bevels per blade

SPECS

IMPERIAL

METRIC

IMPERIAL

Working Range		0.5" I.D. - 2.25" O.D.
Blade Series		G-Series Blades
Width		1.5"
Width (M/O heads)		1.875"
Length		14"
	Pneumatic	Electric	Battery
	1.07 hp	950 W	18 V - 5.2 ah
	90 psi	120 V	120 V
	35 cfm	50/60 Hz	60 Hz
Cutterhead Speed	125 rpm	12-63 rpm	49 rpm
Working Weight	12.7 lbs	14.1 lbs	14.6 lbs
Shipping Weight	40 lbs	42 lbs	46 lbs
Shipping Dimensions	20" x 18" x 5"	24" x 20" x 6"	24" x 20" x 6"

METRIC

Working Range		12.7mm I.D. - 57.15mm O.D.
Blade Series		G-Series Blades
Width		38.1mm
Width (M/O heads)		47.6mm
Length		355.6mm
	Pneumatic	Electric	Battery
	800 W	950 W	18 V - 5.2 ah
	6.2 bar	220 - 240 V	220 - 240 V
	990 Lt/min	50/60 Hz	50/60 Hz
Cutterhead Speed	125 rpm	12-63 rpm	49 rpm
Working Weight	5.8 kgs	6.4 kgs	6.6 kgs
Shipping Weight	18.1 kgs	20.1 kgs	20.9 kgs
Shipping Dimensions	508mm x 457mm x 127mm	610mm x 508mm x 152mm	610mm x 508mm x 152mm

ACCESSORIES

MANDREL KIT 0.5"

Air Clamp

RA Drive

Membrane

Overlay

MANDREL KIT 0.5"

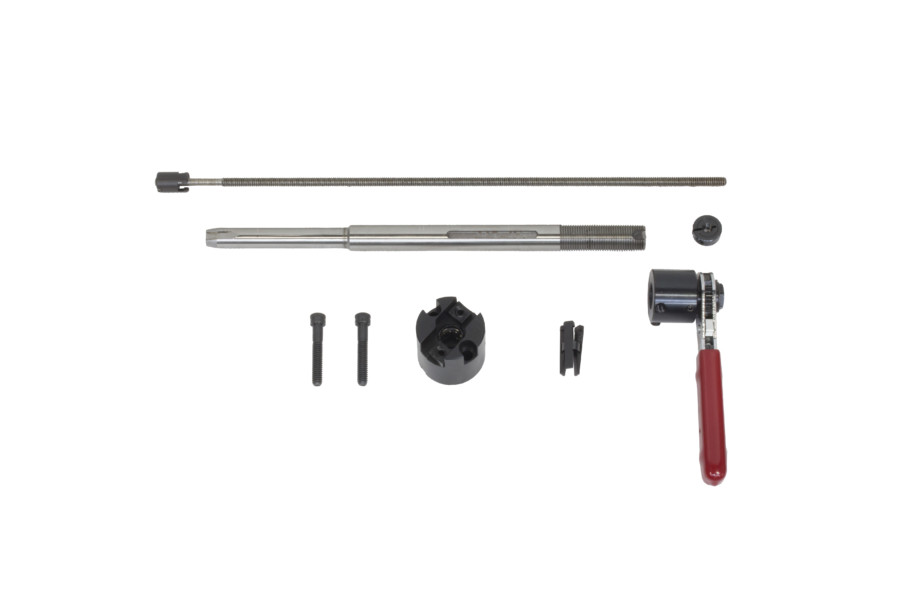

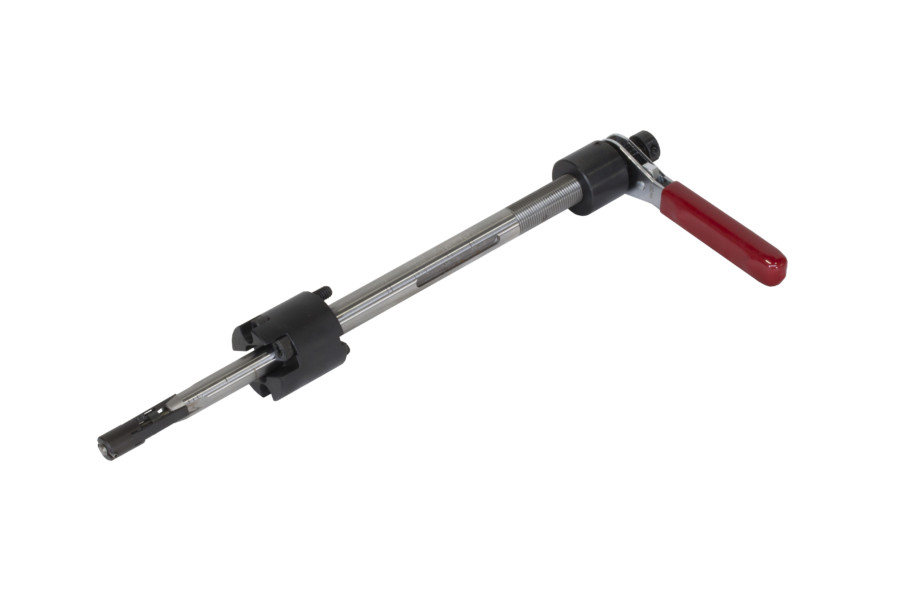

Mandrel Kit (0.5"/12.7mm) part #: G-175

The G-175 mandrel kit is designed to fit in the Groundhog gear head and will allow it to fit in tube with a 0.5” (12.7mm) ID. This kit comes with a specific cutter head that will fit the smaller 0.5" (12.7mm) shaft along with the draw rod assembly and G-01A ribs. Clamping range on this mandrel kit is from .5" (12.7mm) I.D. to .655" (16.6mm).

Includes

Air Clamp

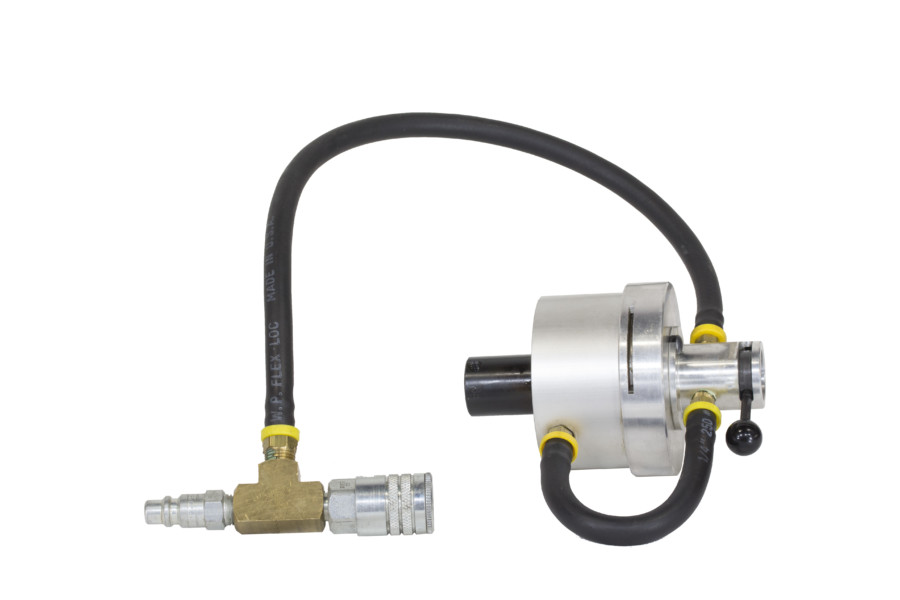

Air Clamp part #: G-270

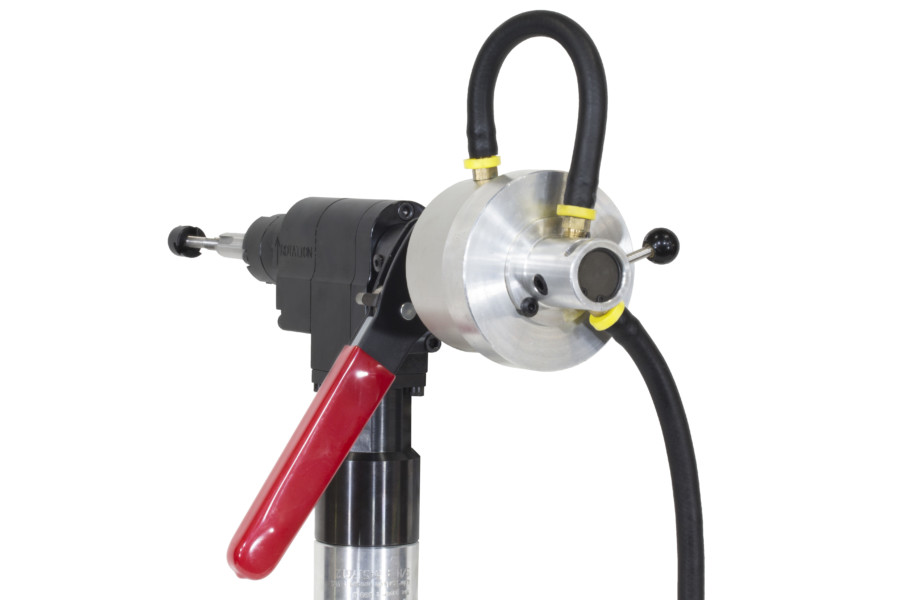

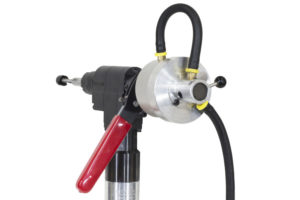

Air Clamp for the Ground rigidly clamps the tool to the pipe using an air clamp to pull the draw rod instead of the manual clamp wrench. With the flip of a switch, the tool can be clamped or released for high production and reduced cycle times. This accessory is only available with the pneumatic motor.

Includes

RA Drive

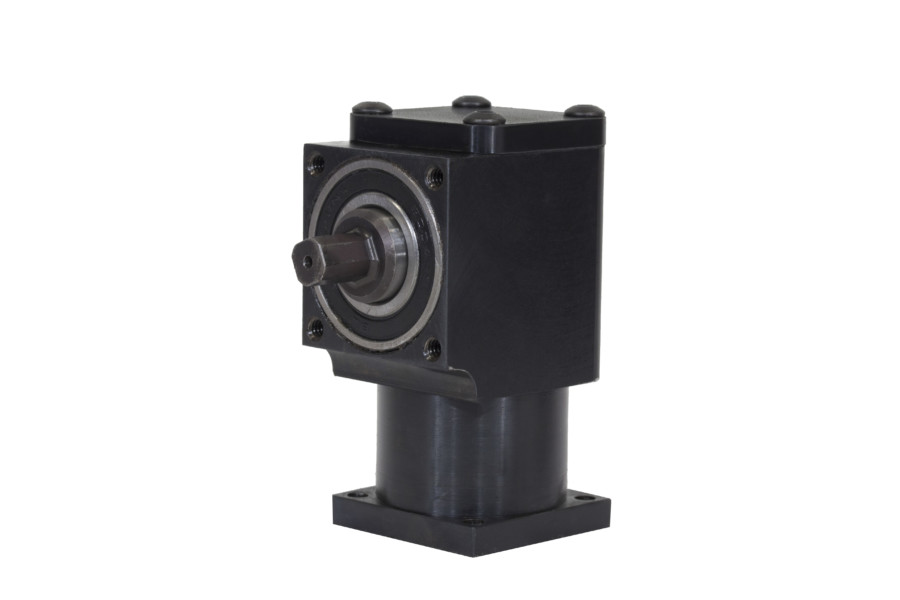

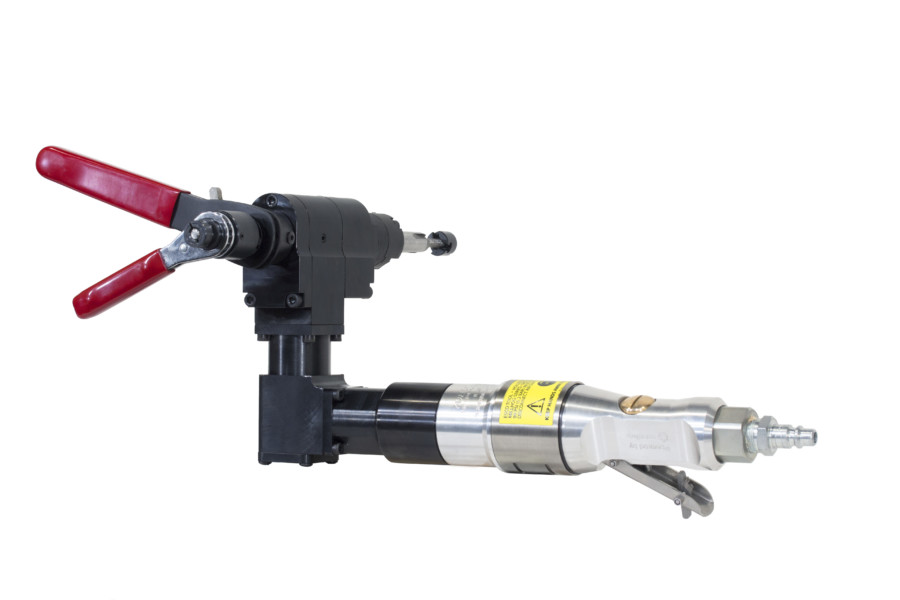

Right Angle Drive part #: G-290

When space is not a luxury, the Groundhog can be fitted with the Right Angle Drive so that the motors can be mounted to either side, or up/down. Kike all of our tools, the Right Angle Drive, is constructed out of precision machined components and is easy to assemble with all three motor options.

Includes

Membrane

Membrane Removal part #: dependent on size (see size chart)

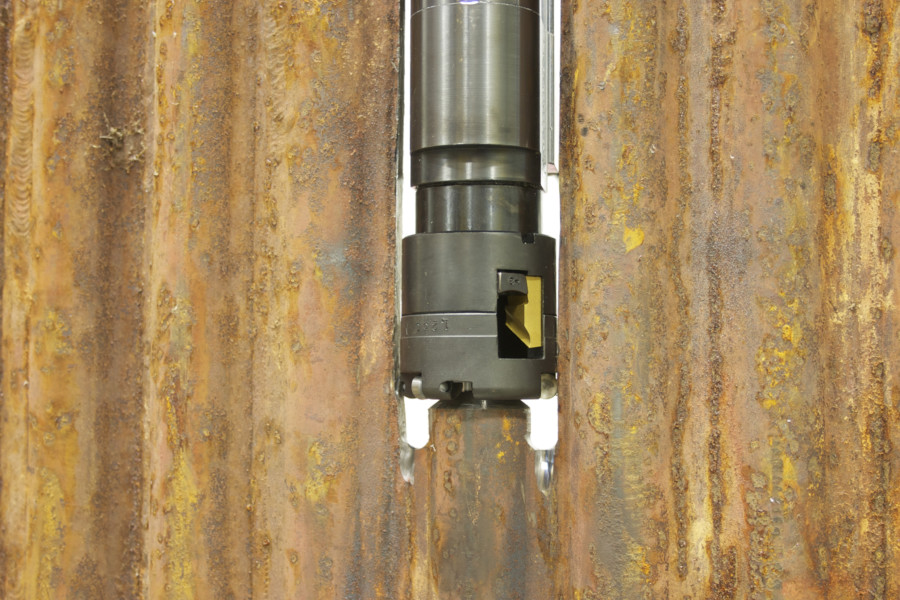

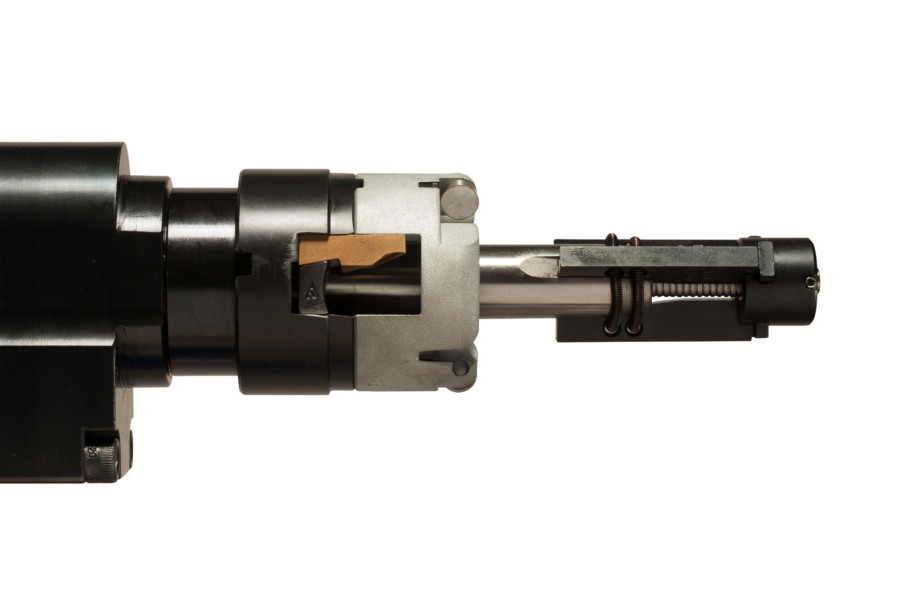

Cutting head designed to remove the membrane between tubes on a boiler panel. Membrane heads use MRB-8 Inserts, an 8mm carbide bit, to remove material (same insert for Overlay heads). A specific base cutter head is required for mounting.

Includes

Size Chart

Overlay

Overlay Removal part #: dependent on size (see size chart)

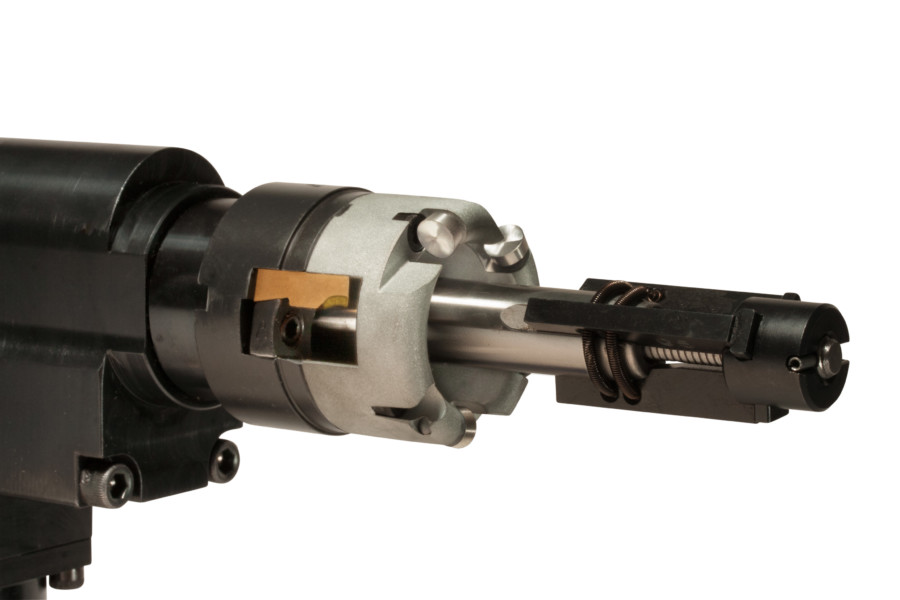

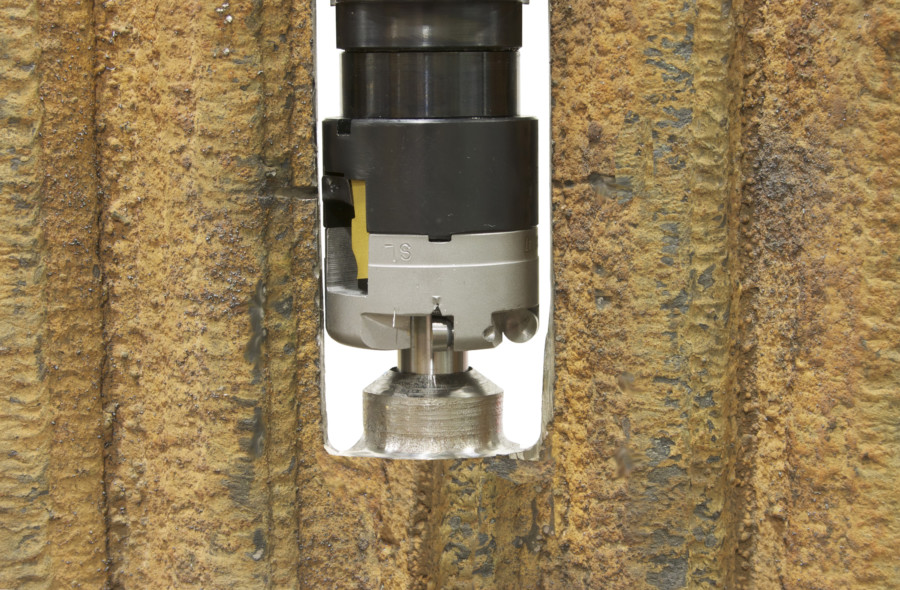

Cutting head designed to remove the membrane and overlay on a boiler panel that has been coated with overlay material. Uses the same 8mm insert as the membrane heads to remove material. A specific base head is required for mounting. Slightly smaller circumference compared to the membrane heads, forces the head under hard material.

Includes

Size Chart

Photos of TUBE & PIPE BEVELING TOOL

Videos

Ground Demo

RESOURCES

Charts

CLAMP RIB CHART - GROUND MILLHOG

Mandrel	Clamp Rib Set	I.D. Range (in)	I.D. Range (mm)
Optional 0.5" (12.7mm)	G-01A	.500 - .655	12.7 - 16.6
Standard 0.625" (15.9mm)	G-02A	.625 - .780	15.9 - 19.8
	G-03A	.750 - .905	19.1 - 22.9
	G-04	.875 - 1.030	22.3 - 26.1
	G-05	1.000 - 1.155	25.4 - 29.3
	G-06	1.125 - 1.280	28.6 - 32.5
	G-07	1.250 - 1.405	31.8 - 35.6
	G-08	1.375 - 1.530	35.0 - 38.8
	G-09	1.500 - 1.655	38.1 - 42.0
	G-10	1.625 - 1.780	41.3 - 45.2
	G-11	1.750 - 1.905	44.5 - 48.3
	G-12	1.875 - 2.030	47.7 - 51.5
	G-13	2.000 - 2.155	51.0 - 54.7

CUTTERHEAD CHART - GROUND MILLHOG

Links

G-Series Blades

M/O Inserts

Documents

Brochure

Tube Size		Membrane Head	Base Head	# of Inserts
.875"	22.2mm	MO-100	GB-103	3
1.0"	25.4mm	MO-101	GB-104	4
1.125"	28.6mm	MO-102	GB-106	4
1.187"	30.2mm	MO-103	GB-106	4
1.25"	31.8mm	MO-104	GB-106	4

Tube Size		Overlay Head	Base Head	# of Inserts
.875"	22.2mm	MO-200	GB-103	3
1.0"	25.4mm	MO-201	GB-104	4
1.125"	28.6mm	MO-202	GB-106	4
1.187"	30.2mm	MO-203	GB-106	4
1.25"	31.8mm	MO-204	GB-106	4
