G-Series Blades
G-Series blades are designed to fit cutterheads for the Ground, Mongoose, Tube Weasel and C-Hog MILLHOG beveling machines. Blades found on this page are regularly stocked in our warehouse and are TiN coated for extended blade life or Hard Lube coated for superior heat resistance.
CUSTOM BLADE OPTIONS:
If your bevel requires dimensions other than the blades on this page our factory will grind blades to your exact specifications. Custom cutting blades are a common request but can vary in lead time so please contact our factory for clarification.
Bevel Blades

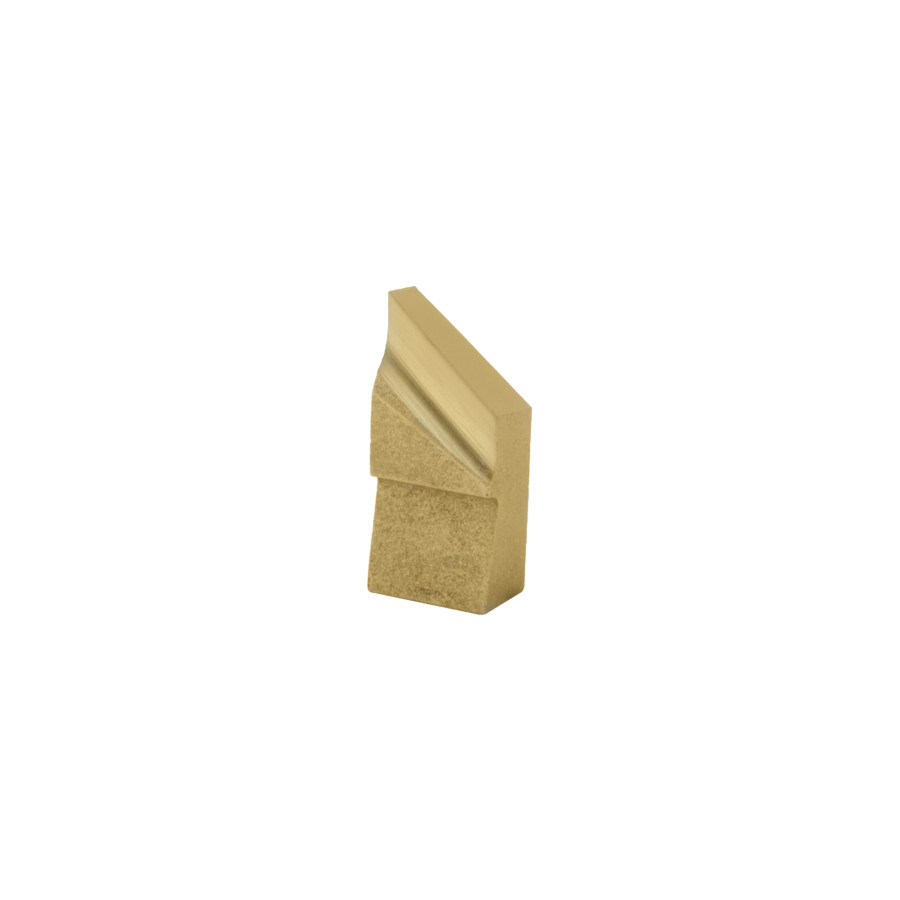

GBB-137-1/2° Bevel Blade TiN3/8” / 9.5mm wide

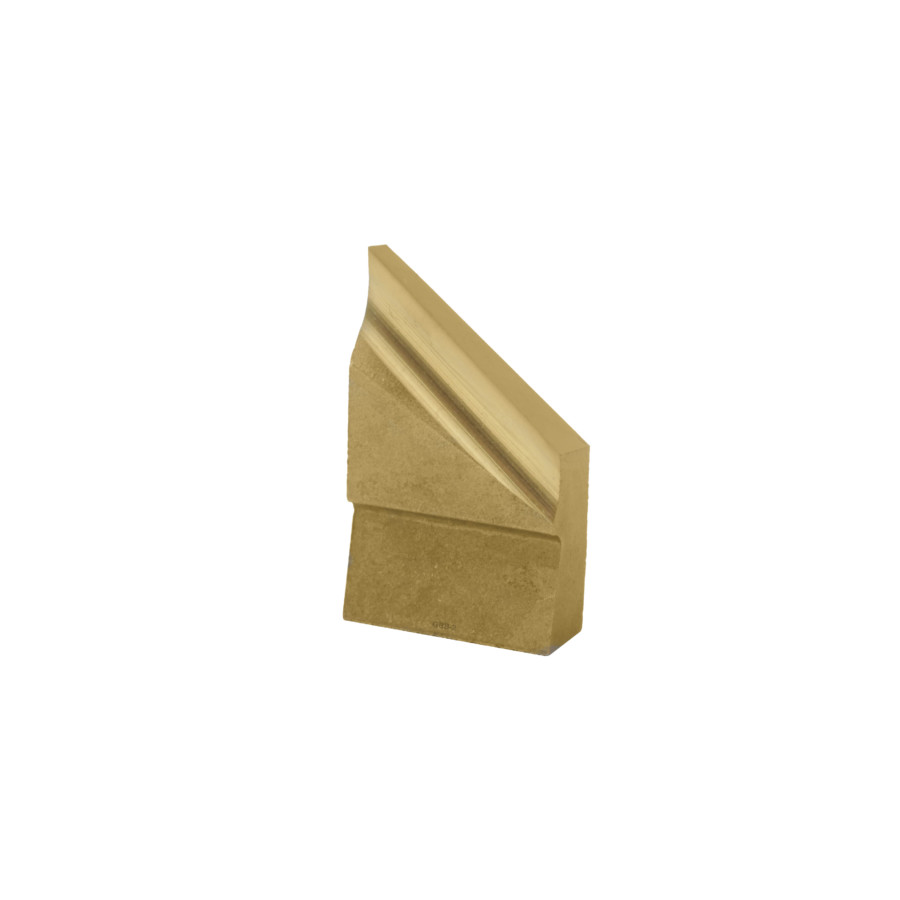

GBB-237-1/2° Bevel Blade TiN5/8” / 15.9mm wide

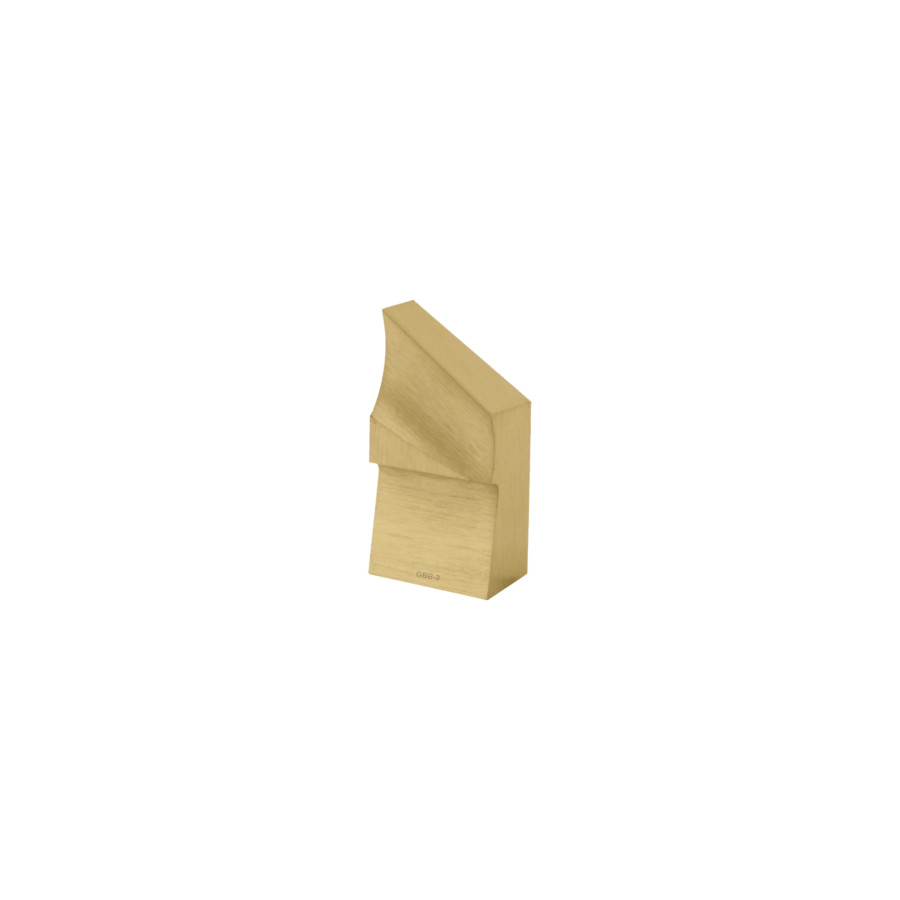

GBB-330° Bevel Blade TiN3/8” / 9.5mm wide

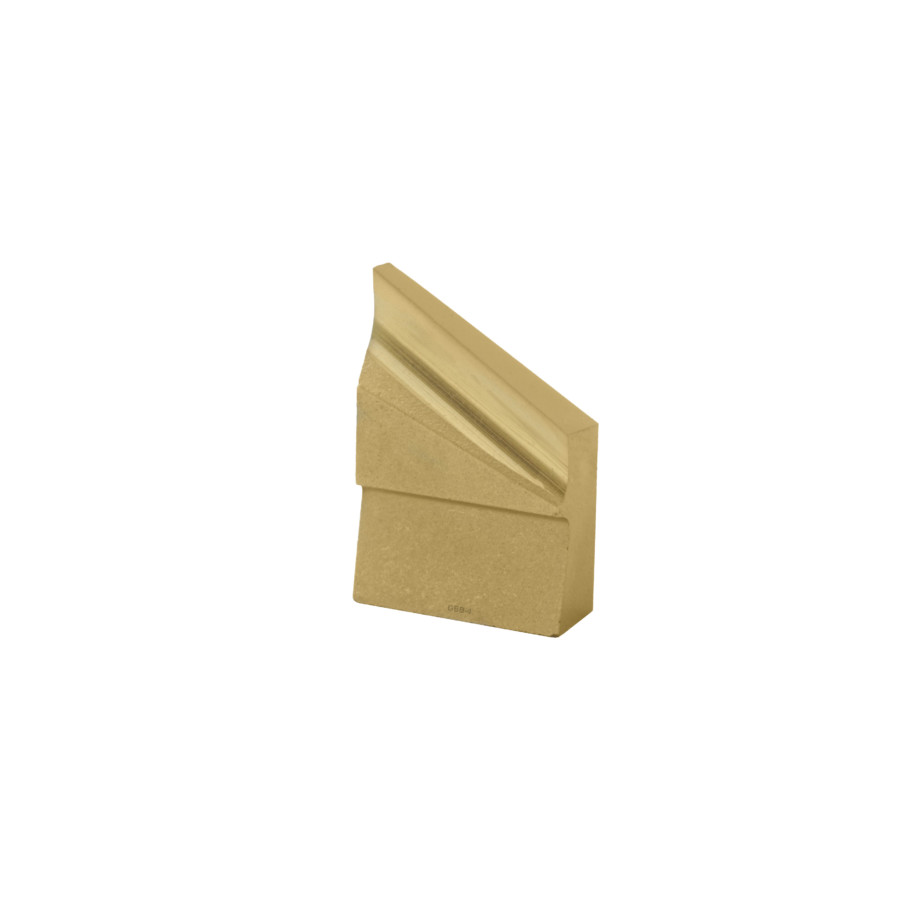

GBB-430° Bevel Blade TiN5/8” / 15.9mm wide

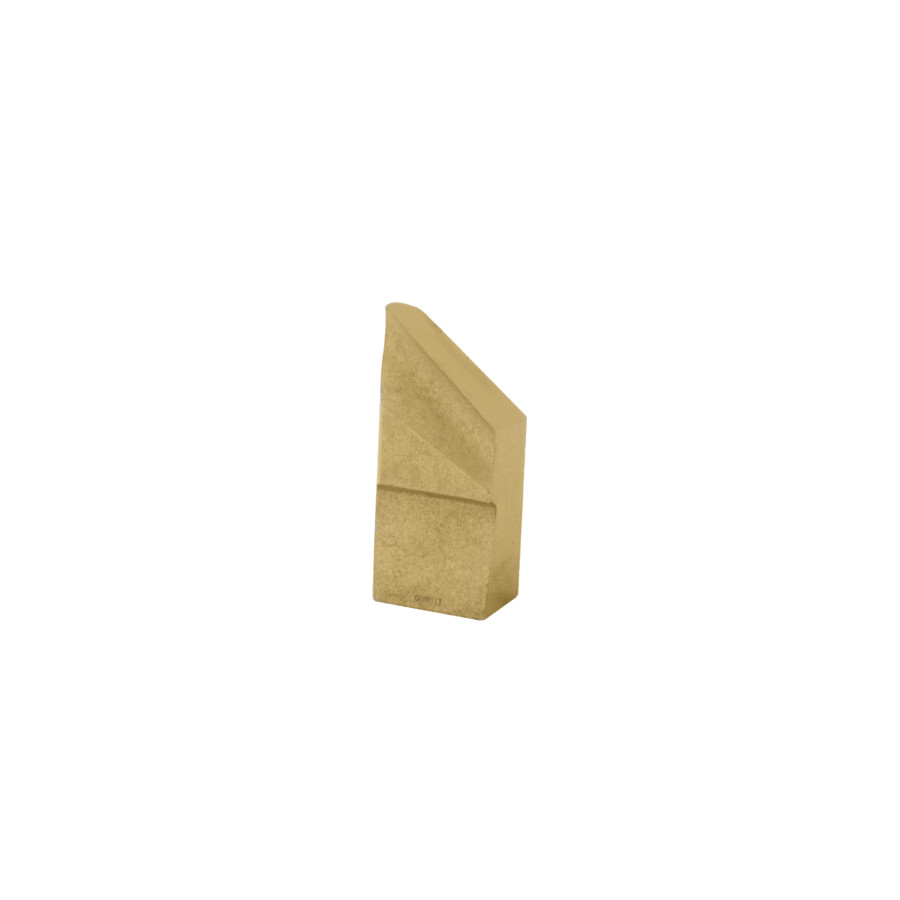

GBB-1T37-1/2° Bevel Blade TiNOD Tangent3/8” / 9.5mm wide

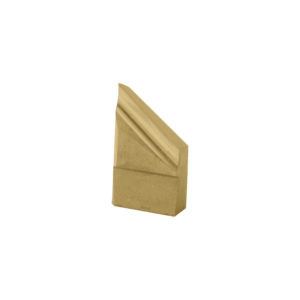

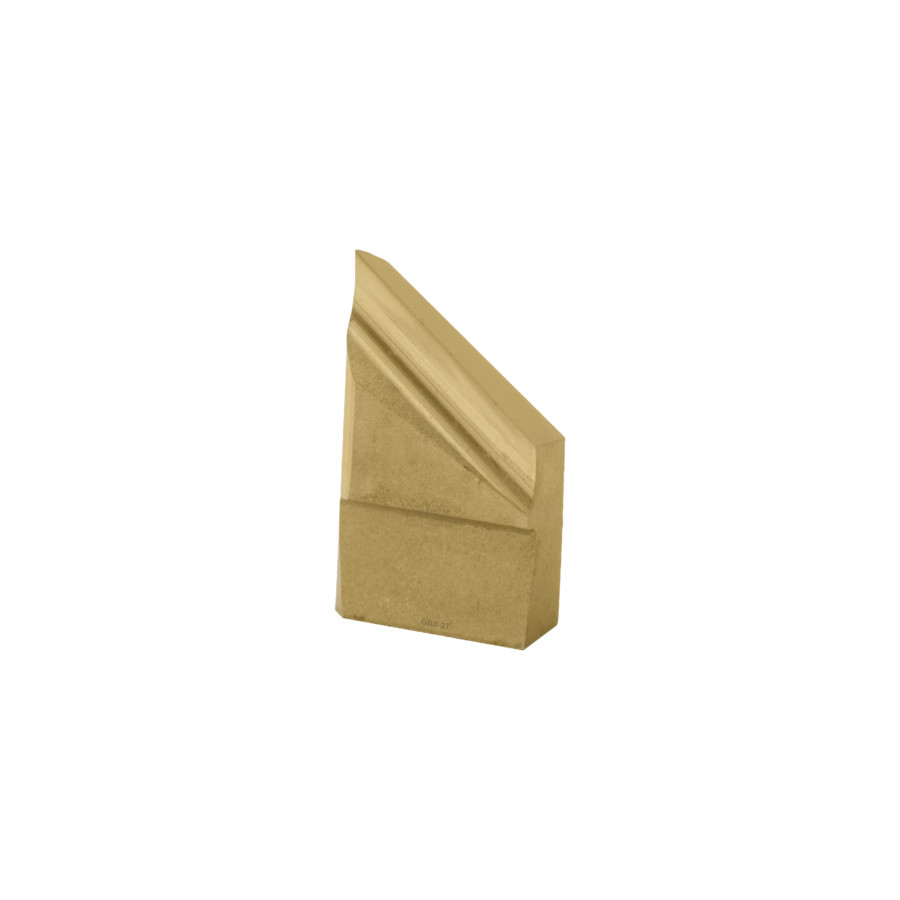

GBB-2T37-1/2° Bevel Blade TiNOD Tangent5/8” / 15.9mm wide
Peel Back Blades

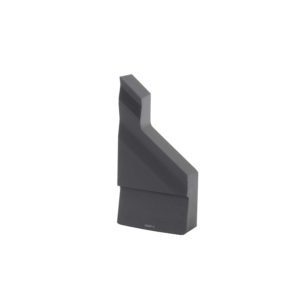

GBBP-237-1/2° Peel Back
Blade HL
1/4" / 1.6mm peel back5/8" / 15.9mm wide
Blade HL
1/4" / 1.6mm peel back5/8" / 15.9mm wide

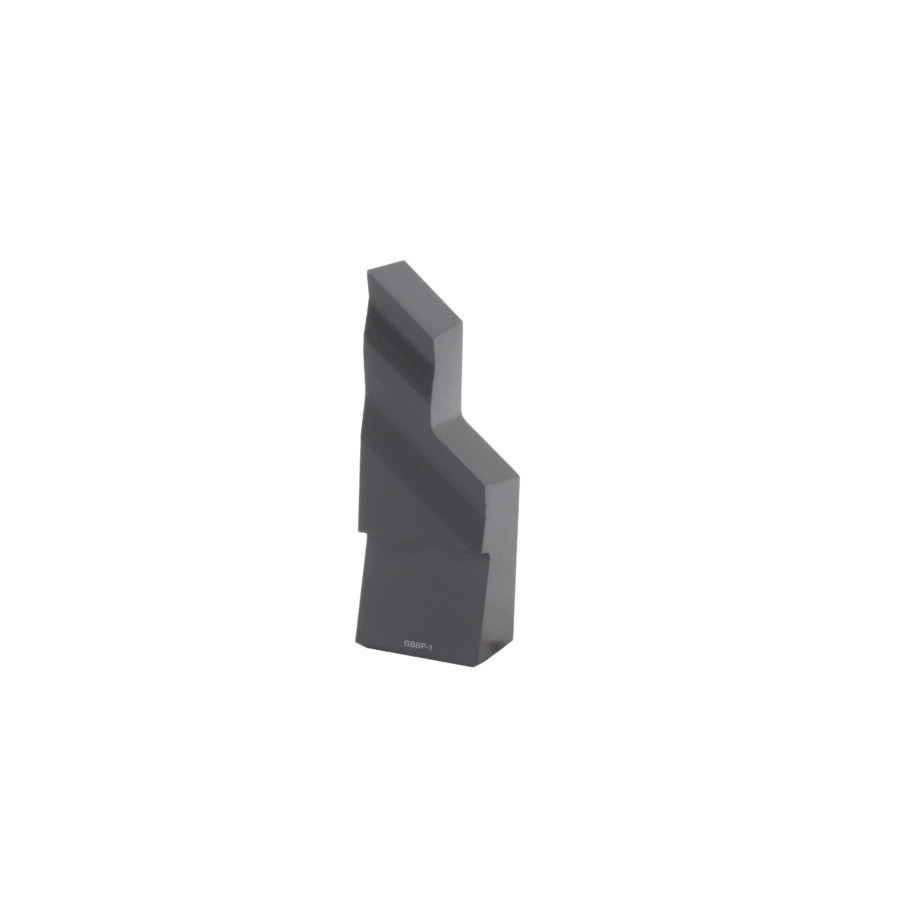

GBBP-137-1/2° Peel Back
Blade HL
1/4" / 1.6mm peel back3/8" / 9.5mm wide
Blade HL
1/4" / 1.6mm peel back3/8" / 9.5mm wide
Boring Blades

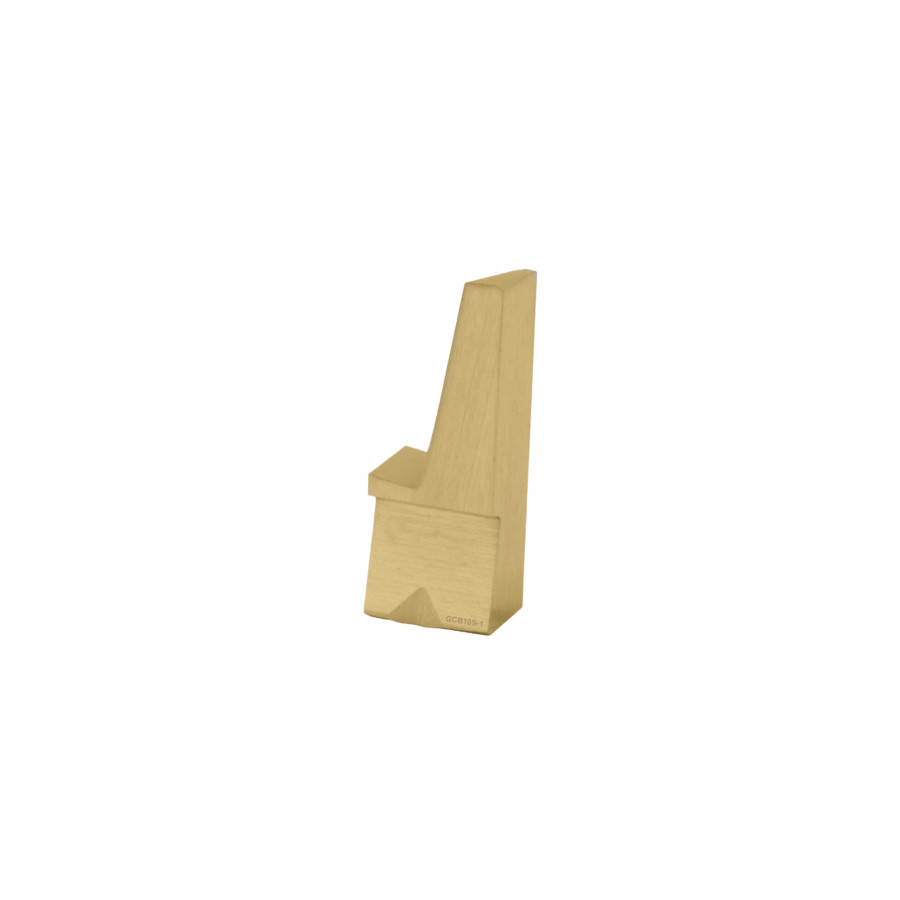

GCB10S-110° Boring Blade TiN3/8" / 9.5mm wide

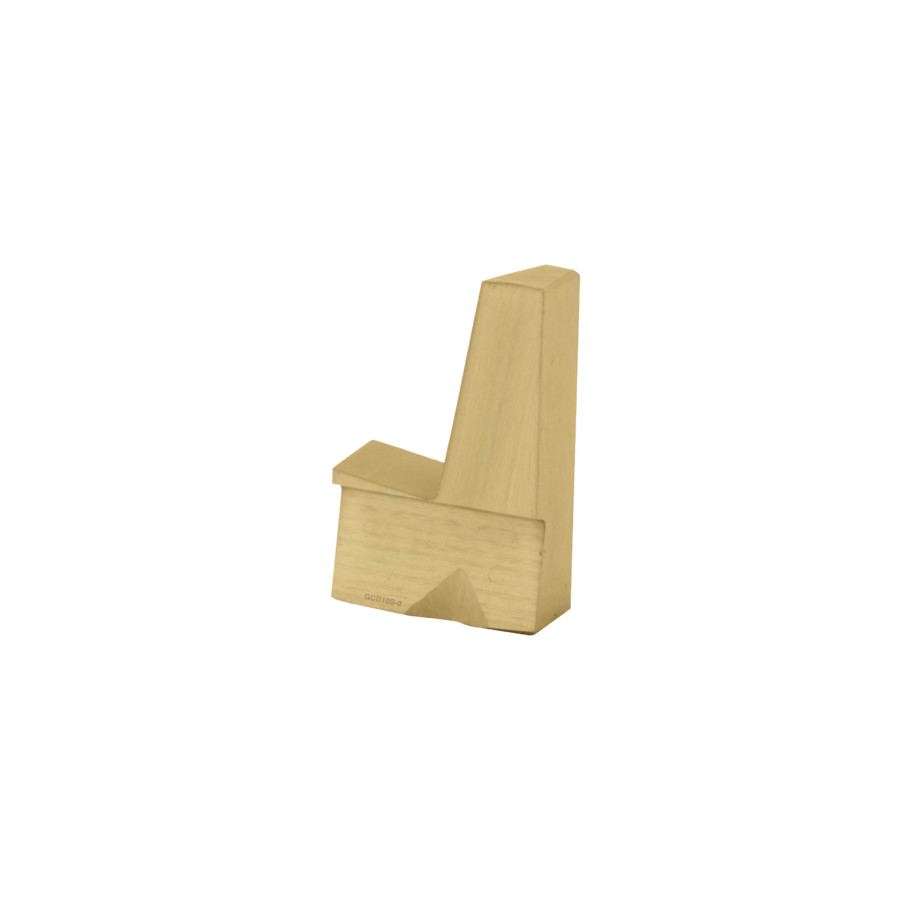

GCB10S-210° Boring Blade TiN5/8" / 15.9mm wide
GCB18S-118° Boring Blade TiN3/8" / 9.5mm wide

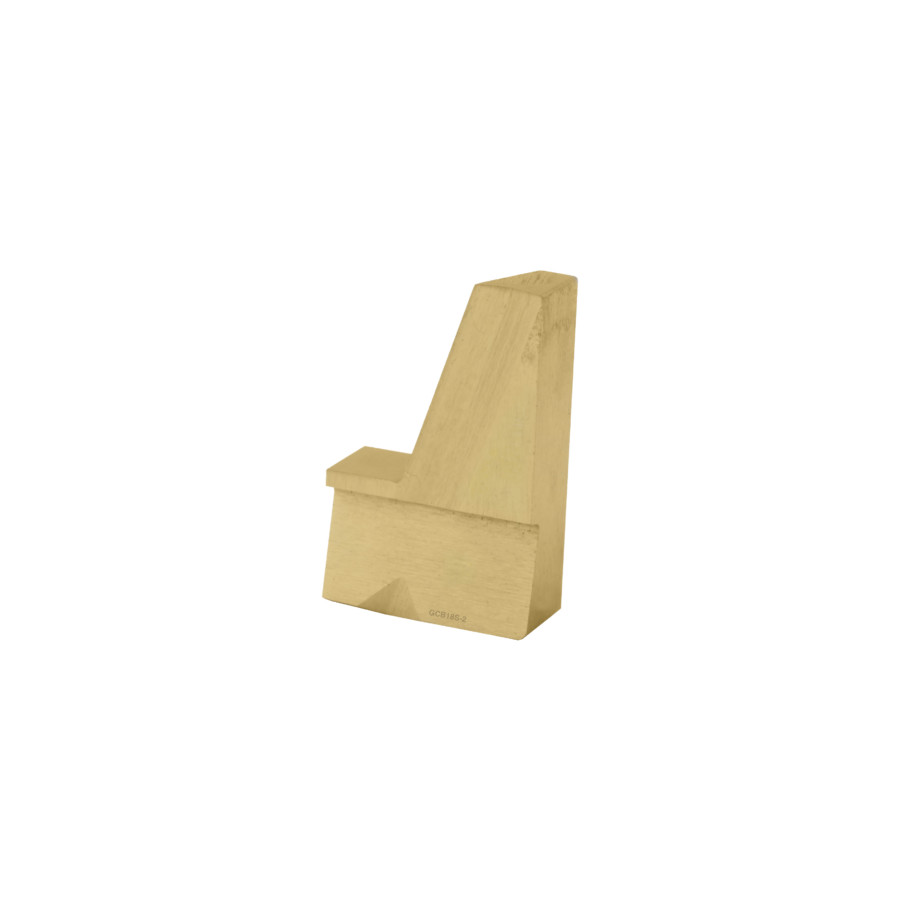

GCB18S-218° Boring Blade TiN5/8" / 15.9mm wide
GCBS-1 Straight Bore
18° Taper
3/8" / 9.5mm wide
18° Taper
3/8" / 9.5mm wide

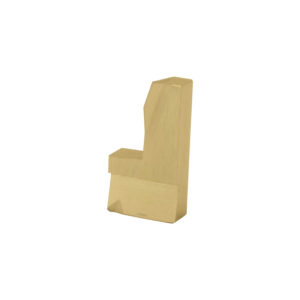

GCBS-2 Straight Bore
18° Taper
5/8" / 15.9mm wide
18° Taper
5/8" / 15.9mm wide
J-Bevel Blades

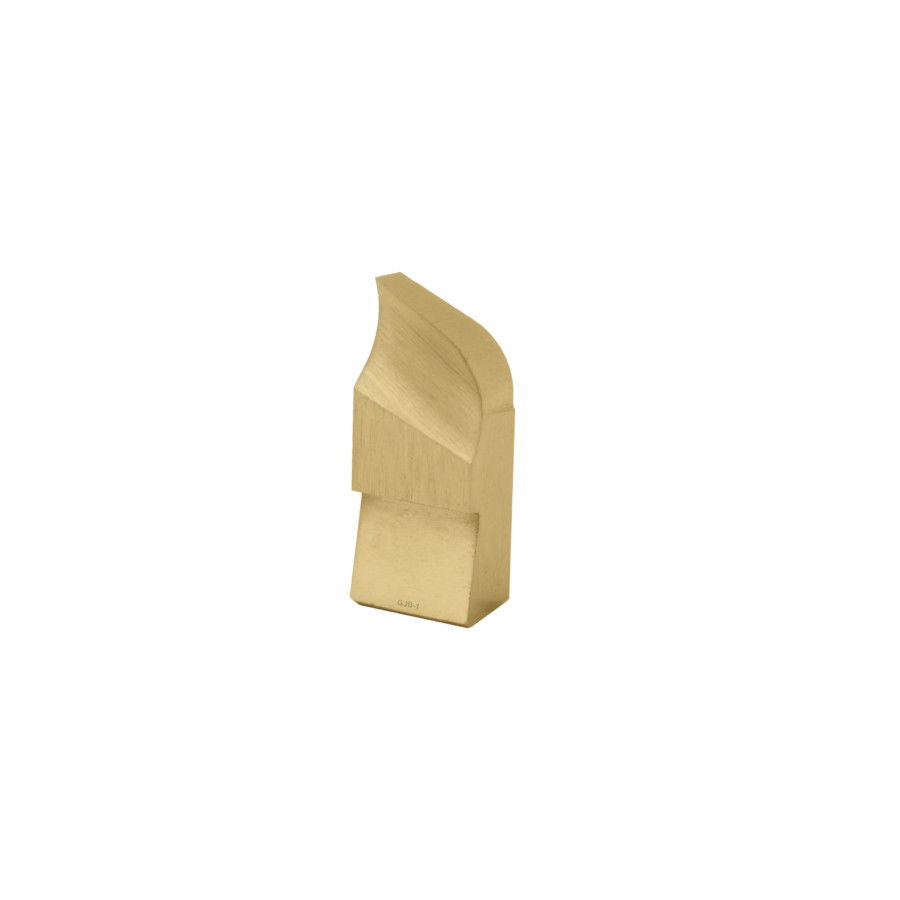

GJB-122° J-Prep Blade TiN
3/16" / 4.8mm radius
3/8" / 9.5mm wide
3/16" / 4.8mm radius
3/8" / 9.5mm wide

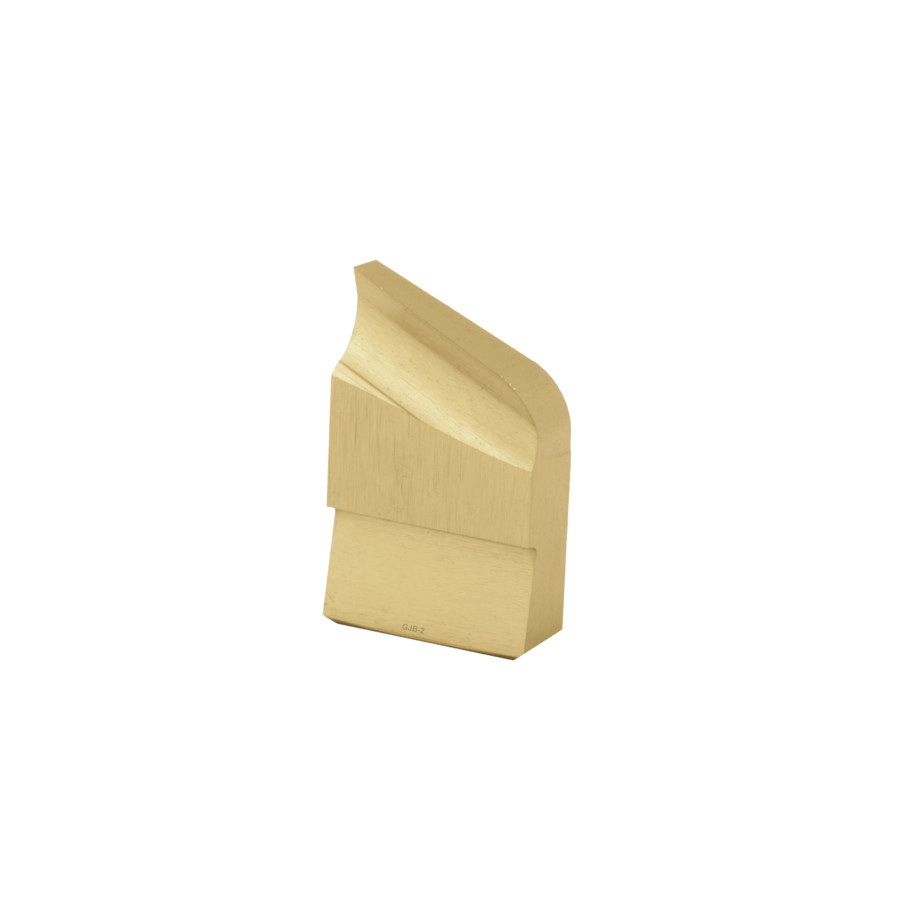

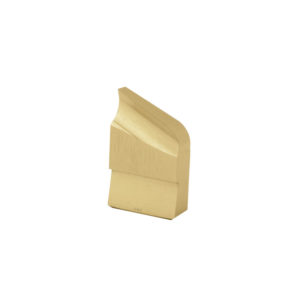

GJB-222° J-Prep Blade TiN
3/16" / 4.8mm radius
5/8" / 15.9mm wide
3/16" / 4.8mm radius
5/8" / 15.9mm wide
Facing Blades

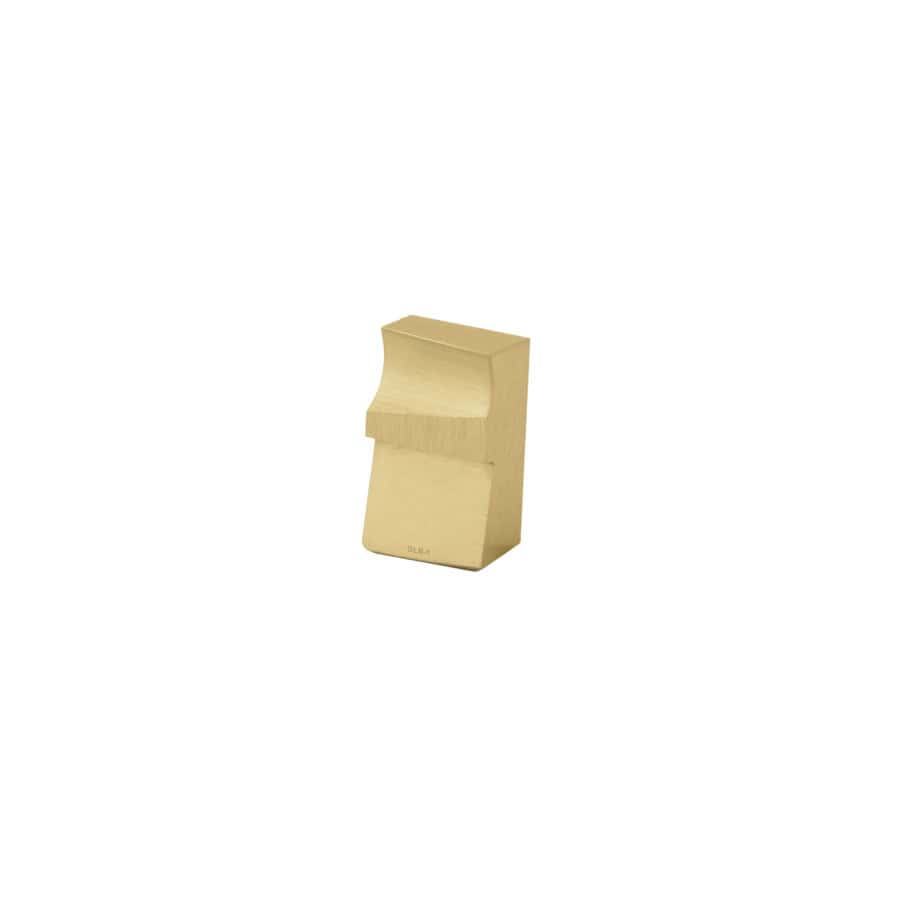

GLB-1
Facing Blade TiN
3/8" / 9.5mm wide
Facing Blade TiN
3/8" / 9.5mm wide
GLB-2
Facing Blade TiN
5/8" / 15.9mm wide
Facing Blade TiN
5/8" / 15.9mm wide

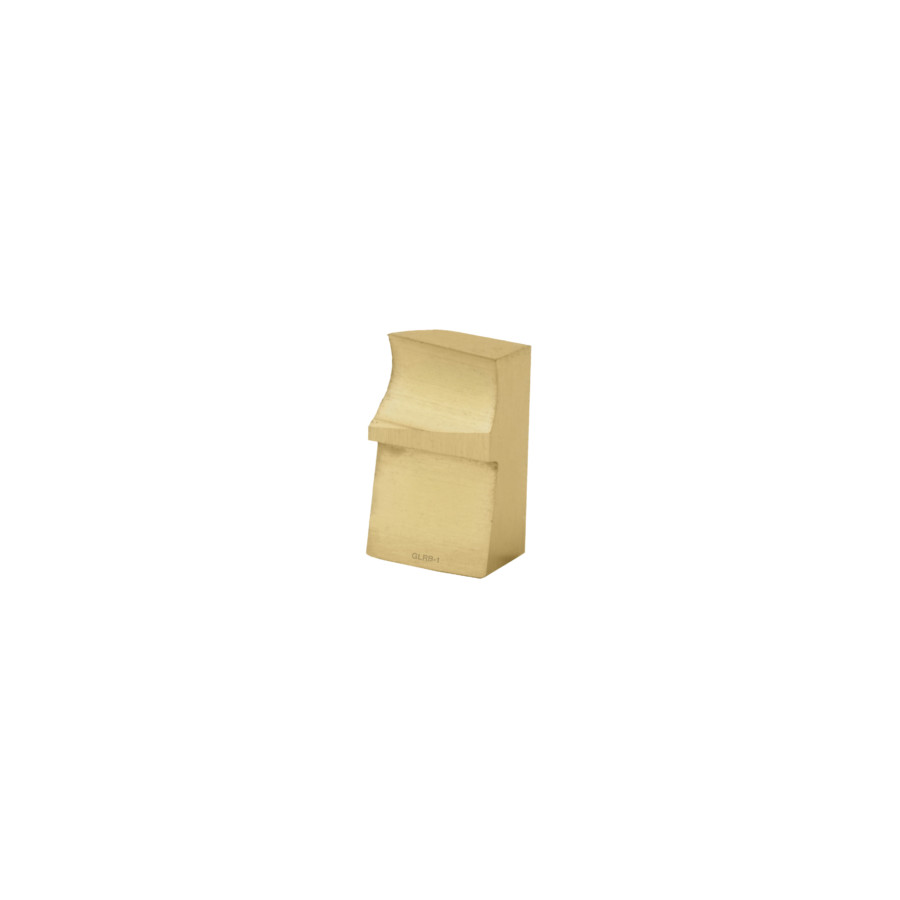

GLRB-1
Facing Blade TiN
OD Radius
3/8" / 9.5mm wide
Facing Blade TiN
OD Radius
3/8" / 9.5mm wide

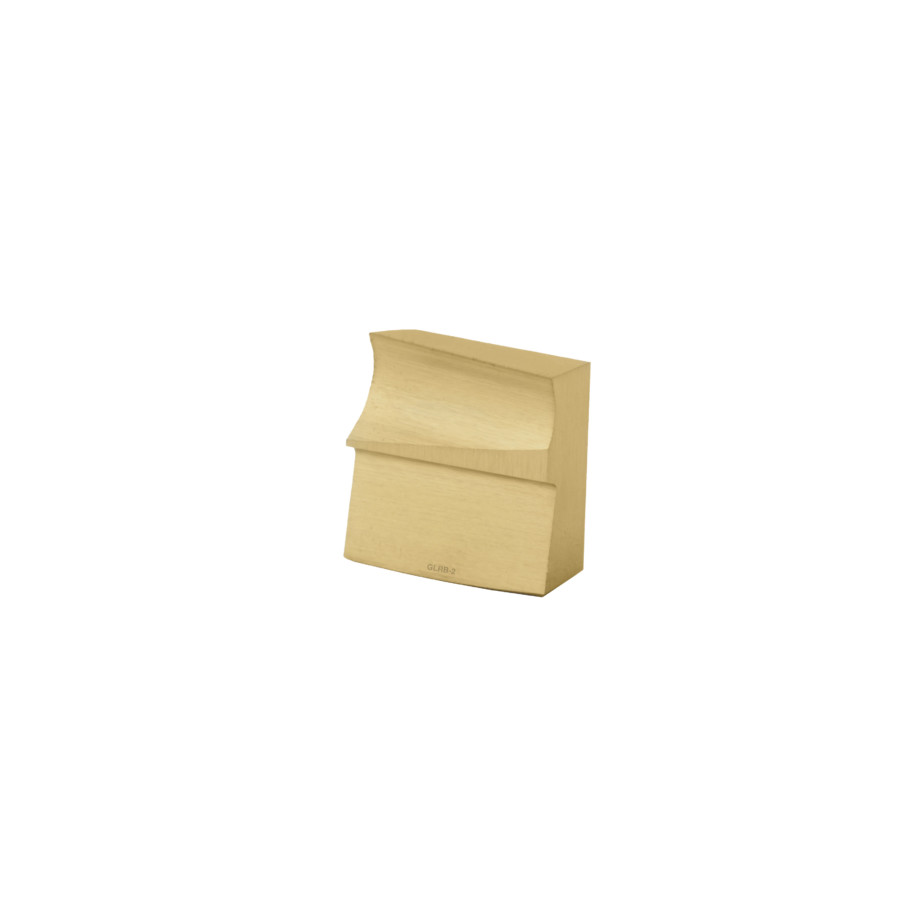

GLRB-2
Facing Blade TiN
OD Radius
5/8" / 15.9mm wide
Facing Blade TiN
OD Radius
5/8" / 15.9mm wide
Reverse Bevel Blades

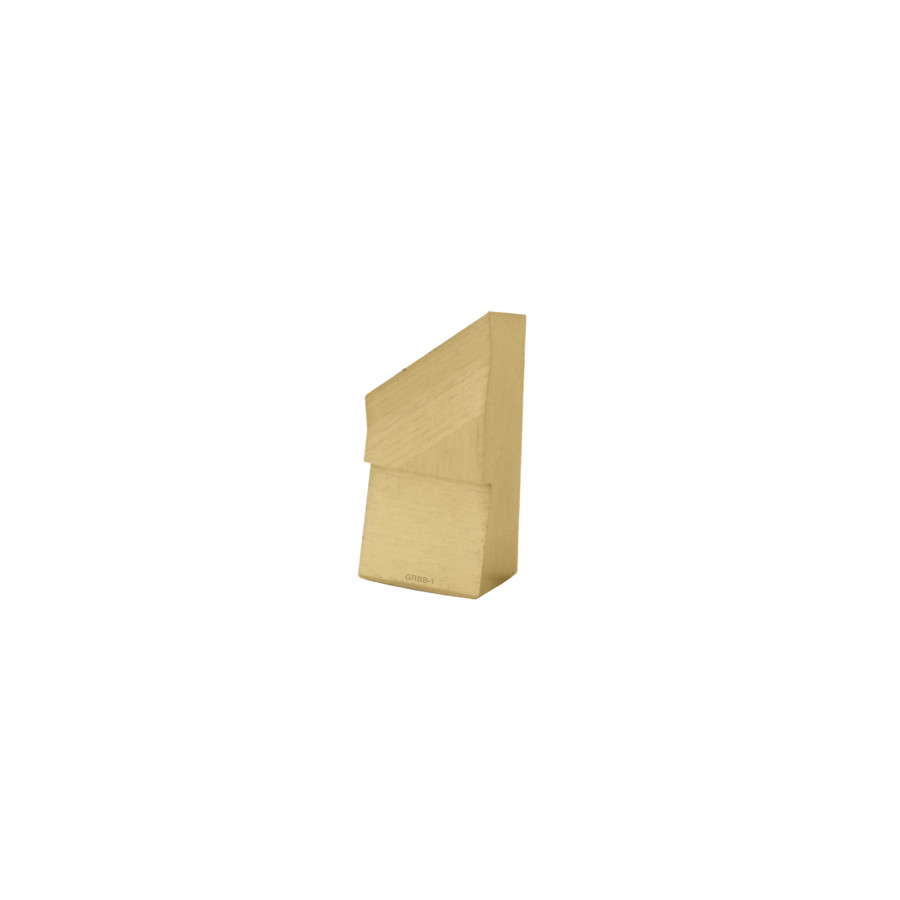

GRBB-137-1/2° Reverse Bevel Blade TiN3/8" / 9.5mm wide

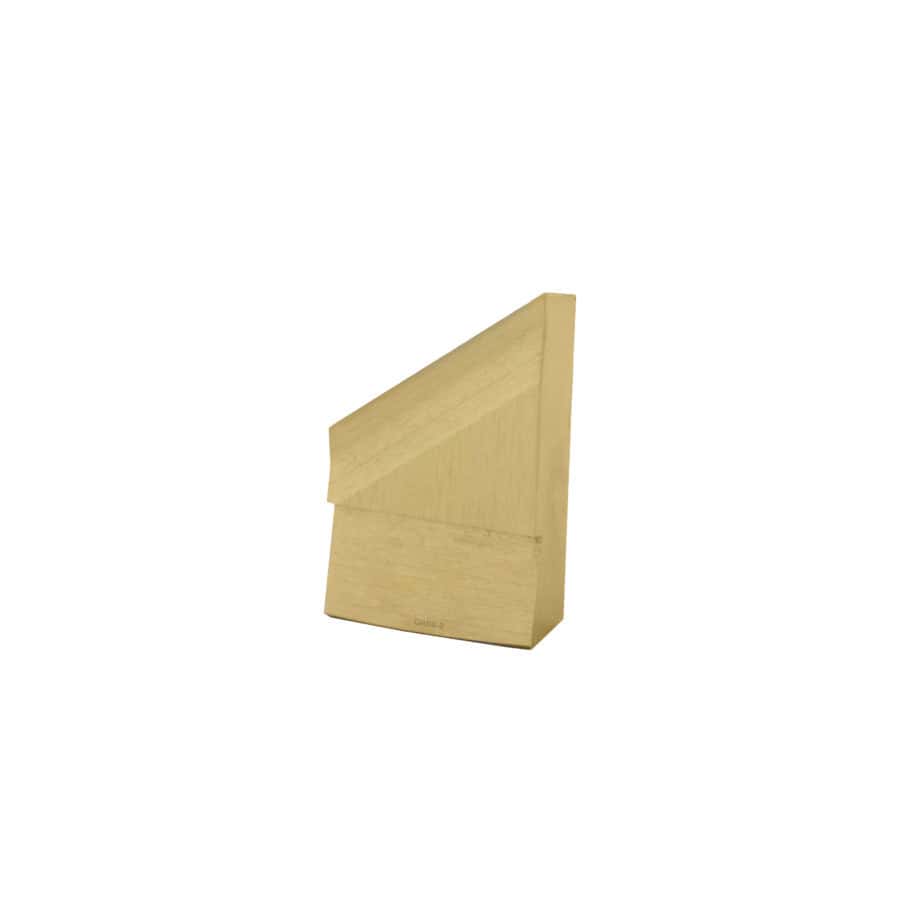

GRBB-237-1/2° Reverse Bevel Blade TiN5/8" / 9.5mm wide
Tube Stub Removal Blades

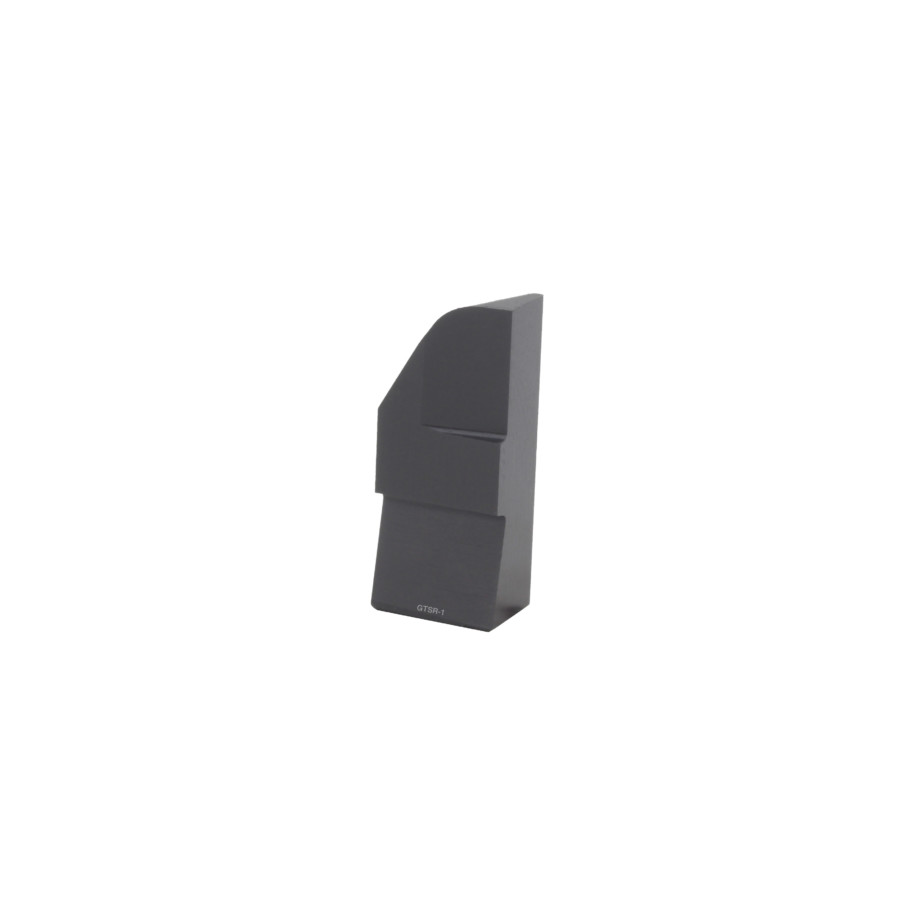

GTSR-130° Tube Stub Removal Blade HL3/16" / 4.8mm radius
3/8" / 9.5mm wide
3/8" / 9.5mm wide

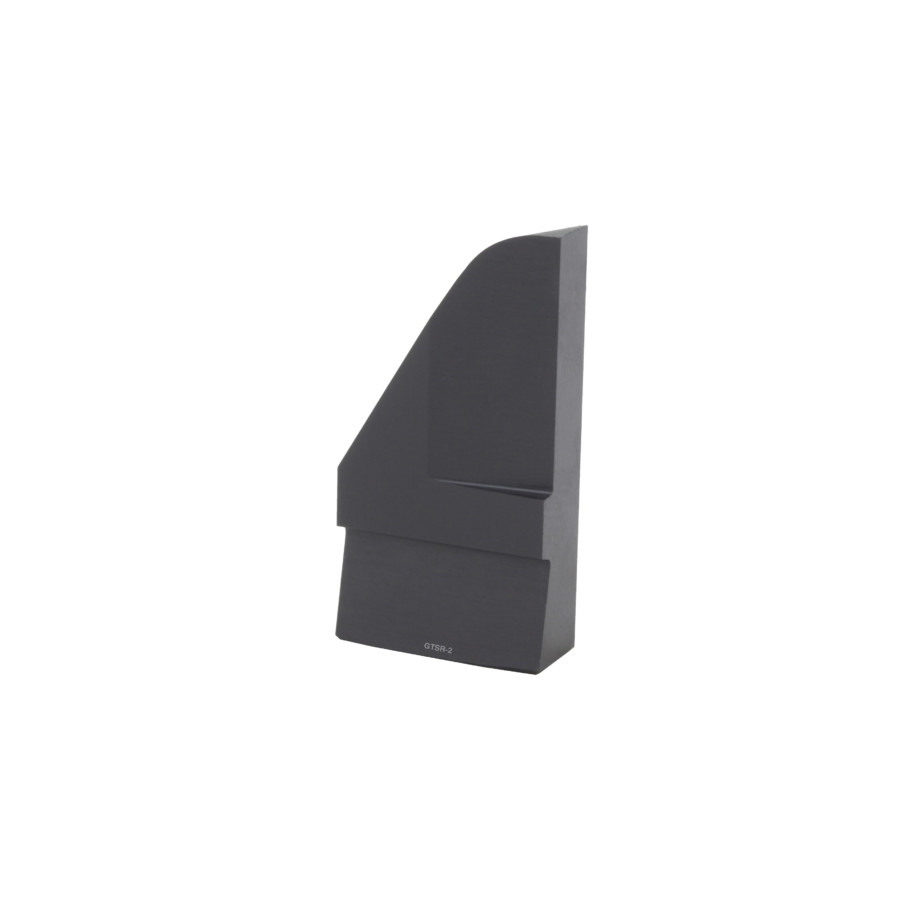

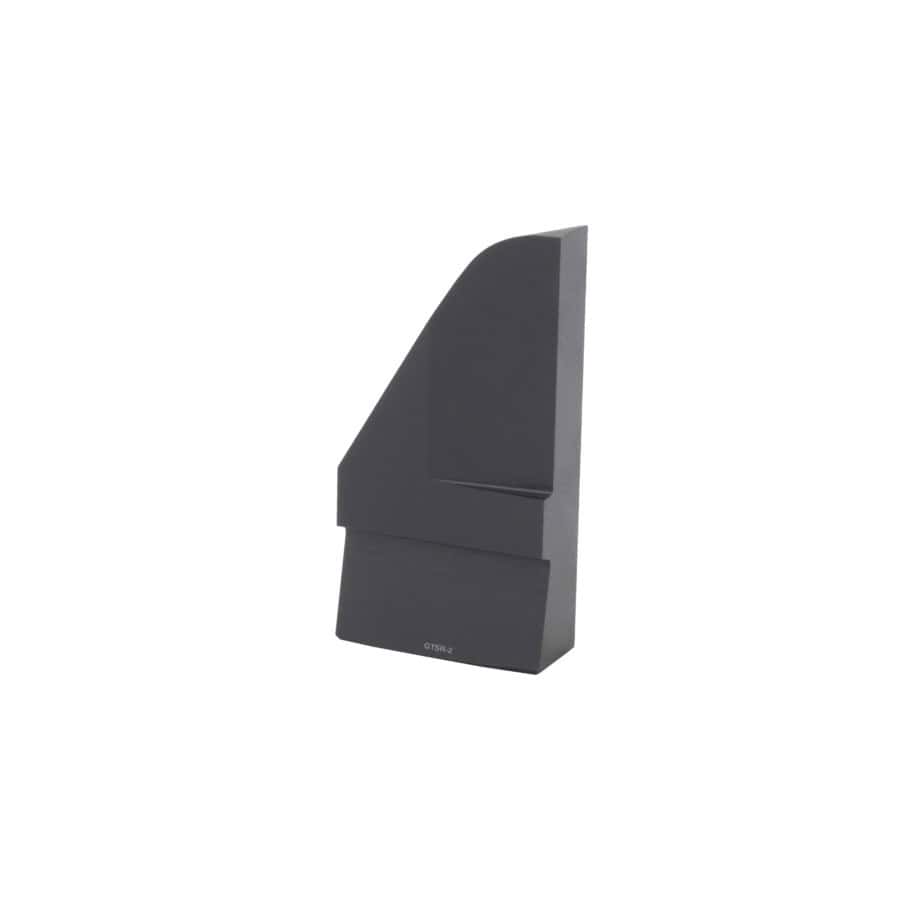

GTSR-230° Tube Stub Removal Blade HL3/16" / 4.8mm radius
5/8" / 15.9mm wide
5/8" / 15.9mm wide
Tube Seat Removal Blades

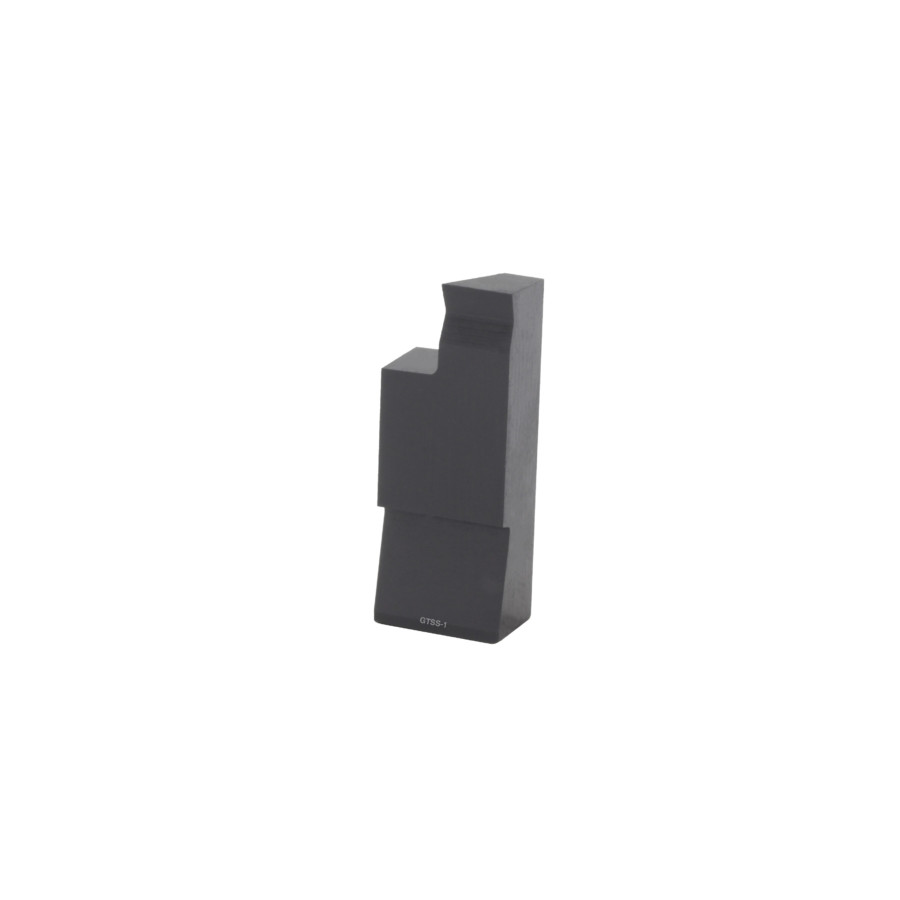

GTSS-1Tube Seat Removal
Blade HL3/8" / 9.5mm wide
Blade HL3/8" / 9.5mm wide
GTSS-2Tube Seat Removal
Blade HL5/8" / 15.9mm wide
Blade HL5/8" / 15.9mm wide
