APS-438
Air Powered Pipe Saw
Standard Model
6.0” O.D. to 60.0” O.D. 152.4mm O.D. to 1524.0mm O.D.
APS-438 Millhog
6.0” I.D. - 60.0” O.D.
152.4mm I.D. - 1524.0mm O.D.
Pneumatic
Pneumatic
APS-438 MILLHOG
Available Kits
AIR POWERED PIPE SAW FEATURES
- Easy to set up and operate
- Provides clean, accurate, straight cuts with no heat-affect zone
- Ergonomic design provides optimum balance of speed and torque
- Powerful pneumatic motor
- Ideal for any application requiring straight and accurate cuts
- Wide variety of accessories make the APS-438 extremely versatile
- Cuts tough material with ease
AIR POWERED PIPE SAW FEATURES SPECS
IMPERIAL
METRIC
IMPERIAL
| Working Range | 6.0" I.D. - 60.0" O.D. | |
| Blade Series | APS | |
| Radial Clearance | 13.5" With blade fully plunged into tube | |
| Cut Depth | 4.375" | |
| Motor | Pneumatic | |
| 3 hp | ||
| 90 psi | ||
| 80 cfm | ||
| Blade Speed | 5050 rpm | |
| Working Weight | 30 lbs | |
| Shipping Weight | 70 lbs | |
| Shipping Dimensions | 27" x 15" x 11" | |
METRIC
ACCESSORIES
Track
Flex Track
Connector
Wrap Track
Quick Clamp
Single Tube
Trolley
Membrane Bracket
Guards
Track
Track Part #: TR-5WT
The standard straight track is for use on the APS-438 and APS-438 LP. Standard track length is 5.0' (1.52m) and comes with 3 weld tabs, but custom length tracks can also be ordered. Tracks are set up by tack welding the weld tabs in place using the attached cut-line indicators for reference, and then bolting . (Tracks can also be extended using our Track Connectors)

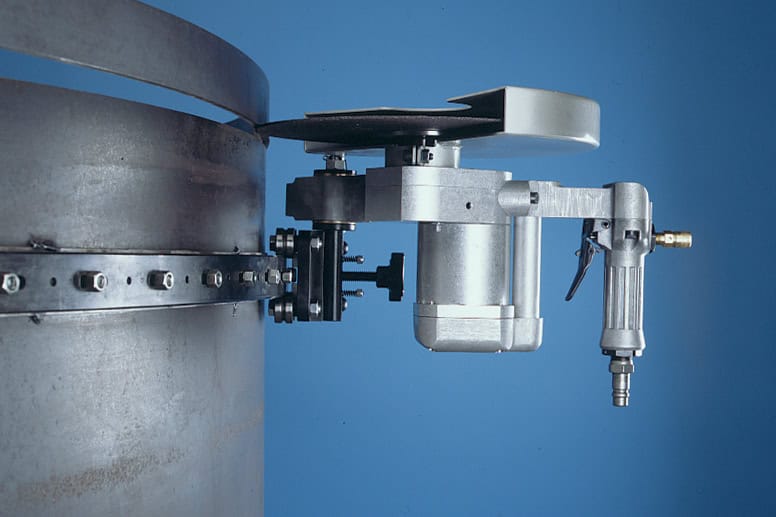

Flex Track
Connector

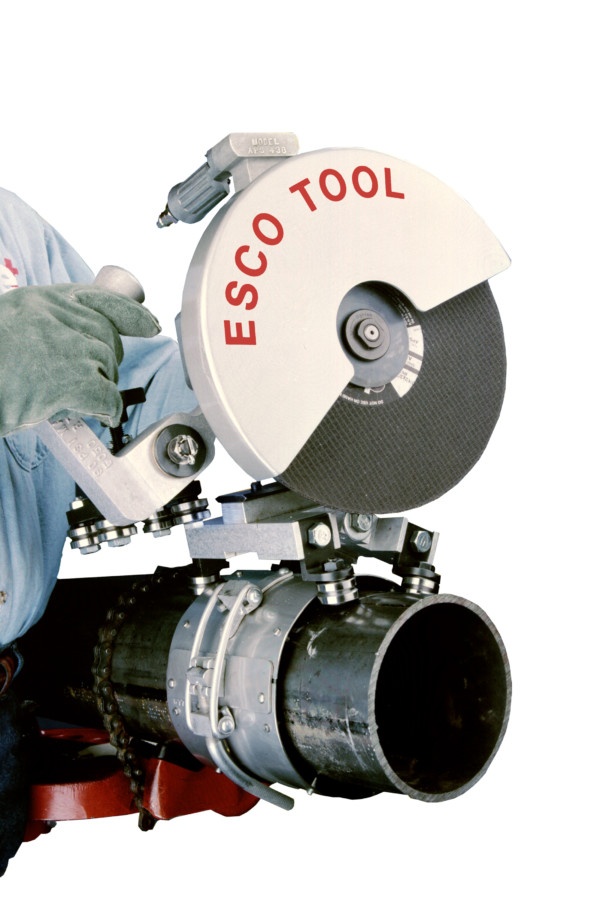

Wrap Track
Quick Clamp
Single Tube
Trolley
Membrane Bracket
Guards
Photos
